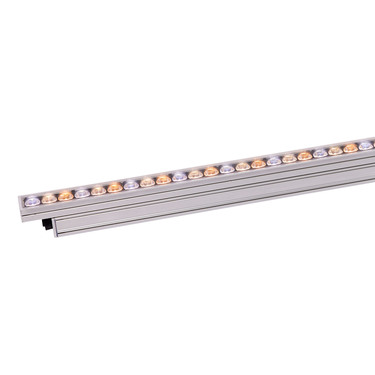

Martin Exterior Linear Pro Graze CTC lights are flexible, compact, LED-based architectural fixtures. Delivering uniform light distribution at a 9 degree beam angle, they are ideal for highlighting textured surfaces, walls, facades, ceilings and other surfaces in stadiums and arenas, cruise ships, theme parks, hotels, casinos, bridges, tunnels or other permanent indoor or outdoor locations.

Featuring highly efficient color temperature control (2700K, 4000K, 6500K), a high color rendering index (CRI) and 12 LEDs/ft, Graze CTC models deliver robust output of 800 lm/ft. Packed with intelligent features, Graze CTC lights include multiple power modes, Remote Device Management (RDM), simple-to-adjust total lumen output for low power requirements, DMX-controllability, and easy installation via the integrated universal power supply.

With a high focus on sustainability, these fixtures can be daisy-chained using a combined power and data connector, enabling long fixture runs for simpler infrastructures. Simple beam angle changeability makes late design changes and on-site adjustments easy and a smart mounting plate design allows for a range of standard or custom bracket solutions.

The slim design of these lights makes them easier to integrate into architectural elements with less structural requirements. All models are available in either 1ft or 4ft linear lengths and are shipped in FSC certified packaging.

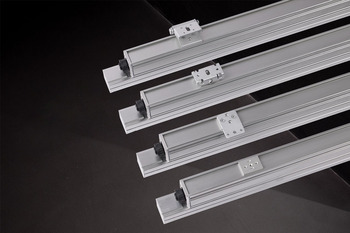

• EASE OF INSTALLATION

  The slim and low weight design makes them easier to integrate into architectural elements discreetly and with less structural requirements. They have flexible change-of-beam angles for late design changes and on-site adjustments. A smart mounting plate design offers a variety of standard or custom bracket solutions.

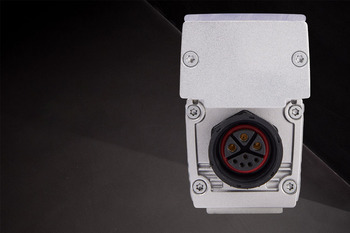

• SMART INFRASTRUCTURE

  Fixtures are DMX-controllable and easy to install due to their integrated universal power supply. They can also be daisy-chained using a combined power and data connector, which enables long fixture runs and more simple infrastructures.

• SUPERIOR COLOR TEMPERATURE CONTROL

  Cold, neutral, and warm LEDs are included for precise color temperature control from 2700K to 6500K at high efficacy with 12 LEDs/ft. They also feature a high color rendering index (CRI) covering the entire color temperature spectrum.

• EFFICIENT OPERATION

  With more than 60 lm/W, Exterior Linear Pro CTC fixtures are highly efficient. Multiple power modes (12W/10W/5W, including ASHRAE compliance) can be set via Remote Device Management (RDM) to reduce power consumption as needed.

EASE OF INSTALLATION

The slim and low weight design makes them easier to integrate into architectural elements discreetly and with less structural requirements. They have flexible change-of-beam angles for late design changes and on-site adjustments. A smart mounting plate design offers a variety of standard or custom bracket solutions.

SMART INFRASTRUCTURE

Fixtures are DMX-controllable and easy to install due to their integrated universal power supply. They can also be daisy-chained using a combined power and data connector, which enables long fixture runs and more simple infrastructures.

SUPERIOR COLOR TEMPERATURE CONTROL

Cold, neutral, and warm LEDs are included for precise color temperature control from 2700K to 6500K at high efficacy with 12 LEDs/ft. They also feature a high color rendering index (CRI) covering the entire color temperature spectrum.

EFFICIENT OPERATION

With more than 60 lm/W, Exterior Linear Pro CTC fixtures are highly efficient. Multiple power modes (12W/10W/5W, including ASHRAE compliance) can be set via Remote Device Management (RDM) to reduce power consumption as needed.
