Exterior Linear Quad Cove

Outdoor rated QUAD color mixing cove lighting

Exterior Linear Quad Cove
Larger Images

Soon to be discontinued - please contact your dealer for information

The Exterior™ Linears are a series of LED color changing fixtures in a robust outdoor-rated housing. The Exterior Linear fixtures provide high output and are available in both cove and graze light versions.

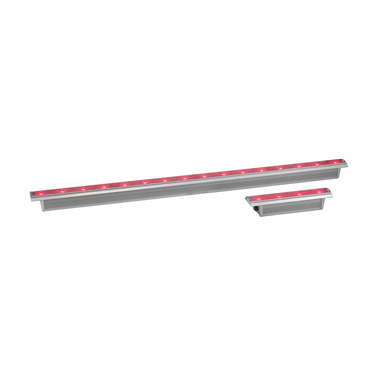

Exterior™ Linear 1210 Cove QUAD and Exterior™ Linear 310 Cove QUAD  use quad-color LEDs for superior color mixing directly at the lens and to avoid multi-colored shadows.

They feature superb color mixing and a uniform light distribution at a beam angle suitable for a wide range of indirect lighting applications such as cove lighting in ceilings, decorative wall lighting and other structures. The Exterior Linear fixtures are DMX controllable, easy to install due to their integrated universal power supply and connect via daisy chain using a combined power and data connector.

Learn more about our product verification and reliability

  • Linear LED fixture with premixed color mixing
  • Robust outdoor-rated fixture available in two lengths
  • Easy installation with integrated power supply

  • Superior glare control

    The louvre option for Exterior Linear effectively reduces glare by restricting the view into the luminaire, achieving efficient visual comfort and reduced light pollution

  • Easy infrastructure

    The hybrid connector allows for easy and secture connection either end-to-end or using an extension cable. The in-built power supply allows for of long fixture runs up to 100 ft at 230V

  • Flexible installation

    The hinged mounting bracket allows for flexible installation

  • Sophisticated control

    The smart magnetic tool allows for local status information. The Exterior Linear also features Remote Device Management (RDM) for remote settings and diagnostics.

  • Premixed color

    The QUAD color LED secures superior color mixing within the lens. This also improves the looks and aesthetics when the fixture itself is visible.

featured content

Superior glare control

The louvre option for Exterior Linear effectively reduces glare by restricting the view into the luminaire, achieving efficient visual comfort and reduced light pollution

featured content

Easy infrastructure

The hybrid connector allows for easy and secture connection either end-to-end or using an extension cable. The in-built power supply allows for of long fixture runs up to 100 ft at 230V

featured content

Flexible installation

The hinged mounting bracket allows for flexible installation

featured content

Sophisticated control

The smart magnetic tool allows for local status information. The Exterior Linear also features Remote Device Management (RDM) for remote settings and diagnostics.

featured content

Premixed color

The QUAD color LED secures superior color mixing within the lens. This also improves the looks and aesthetics when the fixture itself is visible.

Videos





Features

  • Wide spread and premixed color mixing out
  • Very low power consumption (max 20 W/ft)
  • No extra control boxes required – connects directly to line voltage and DMX
  • Internal power and control (DMX, RDM and magnetic tool)
  • Super rugged IP66 housing
  • 0–100% intensity control

Specifications

  • Physical 310 series (1 ft.) fixtures:

    Length: 305 mm (12.0 in.)
    Width: 72 mm (2.8 in.)
    Height: 95 mm (3.8 in.) including bracket
    Weight: 1.5 kg (3.4 lbs.)

     1210 series (4 ft.) fixtures:

    Length: 1219 mm (48.0 in.)
    Width: 72 mm (2.8 in.)
    Height: 95 mm (3.8 in.) including bracket
    Weight: 6.0 kg (13.3 lbs.)
    Dynamic Effects Intensity: 0 - 100% Color mixing: RGBW
    Control and Programming Control systems: DMX, RDM User interface: Magnetic button to call up fixture status and test fixture Control resolution: 8-bit DMX control of each color DMX compliance: USITT DMX512/1990 RDM RDM compliance: ANSI/ESTA E1.20
    Optics Light source: Quad-color OSRAM Ostar Minimum LED lifetime: 50,000 hours (to >70% luminous output)* Beam angle: 105° LED spacing: 4 LEDs per 300 mm (4 LEDs per foot) Binning: Tight color and flux binning

    *Figure obtained under manufacturer's test conditions
    Photometric Data Exterior Linear 310 QUAD Cove:

    Total luminous output: 793 lumens
    Red output: 196 lumens
    Green output: 490 lumens
    Blue output: 115 lumens
    White output: 690 lumens

     Exterior Linear 1210 QUAD Cove:

    Total luminous output: 3180 lumens
    Red output: 783 lumens
    Green output: 1955 lumens
    Blue output: 456 lumens
    White output: 2760 lumens

    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
    Construction Housing: Aluminum Front: Clear polycarbonate with diffuser Protection rating: IP66 IK rating: IK08 Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944) Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6)
    0,7g RMS Random (IEC 60068-2-64)     RoHS compliant
    Installation Orientation: Any Minimum distance to illuminated surfaces: 0.1 m (0.3 ft.)
    Connections Power/data in/thru: 8-pin custom connectors
  • Electrical AC power: 100-277 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Maximum total length of fixtures in chain at 120 V: 15.24 meters (50 ft.)* Maximum total length of fixtures in chain at 240 V: 30.48 m (100 ft.)* Typical half-cycle RMS inrush current: 0.3 A, 1210 QUAD models 0.7 A Surge protection: 4 KV Typical earth-leakage current: 4ft fixture: 0,50 mA, 1ft fixture: 0,15 mA

    *Consult local regulations to determine maximum fixture runs
    Typical Power and Current 100-240 V, 50/60 Hz: 20 W per foot +/- 1 W, PF 0.95 +/- 0.05 277 V, 50/60 Hz: 20 W per foot +/- 1 W, PF 0.90 +/- 0.05 Power figures are typical, not maximum. Measurements made at nominal voltage. Allow for +/- 10% deviation. PF = Power factor.
    Thermal Cooling: Convection Total heat dissipation (calculated, +/- 10%): 70 BTU/hr. per foot Maximum ambient temperature (Ta max.): 45° C (113° F) Minimum ambient temperature (Ta min.): -30° C (-22° F)
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 40 lm/W LWR*: 529 lm/kg (233 lm/lb)

    *LWR = Lumen-to-Weight Ratio
    Approvals Global CB Certification/IECEE: IEC 60598-2-5 (IEC 60598-1) EU safety: EN 60598-2-5, EN 60598-2-1, (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55032 (EN 55103-1), EN 55103-2, EN 61547, EN 61000-3-2, EN 61000-3-3 US safety: ANSI/UL 1598 US EMC: 47 CFR Part 15 Class B Canadian safety: CSA C22.2 No. 250.0 Australia/NZ: RCM India: BIS
    Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader)
    Accessories Magnetic Test Tool, set of 10: P/N 91610139 Cables:

    Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), EU: P/N 91611754
    Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), US: P/N 91611755
    Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), EU: P/N 91611156
    Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), US: P/N 91611157
    Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), EU: P/N 91611758
    Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), US: P/N 91611759
    Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), EU: P/N 91611760
    Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), US: P/N 91611761
    Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), EU: P/N 91611762
    Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), US: P/N 91611763
    Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), EU: P/N 91611764
    Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), US: P/N 91611765
    End Termination Cap for power + data link: P/N 91611766

     Optical:

    Exterior Linear 300 Series Glare Shield, set of 4: P/N 91611752
    Exterior Linear 1200 Series Glare Shield, set of 4: P/N 91611753
    Exterior Linear 310/1210 QUAD Cove Louvre, set of 4: P/N 91611852
    Ordering Information Exterior Linear 310 Quad Cove: P/N MAR-90356997 Exterior Linear 1210 Quad Cove: P/N MAR-90356996
