Martin PDE BreakInOut Cable

Larger Images

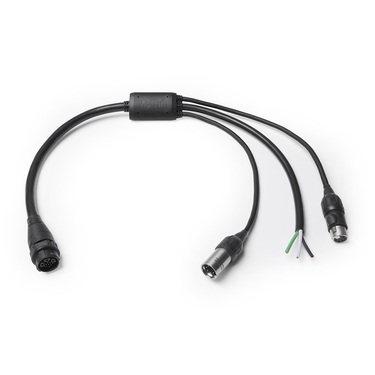

The Martin PDE BreakInOut Cable can be fitted to Martin fixtures with PDE connector to give them Power input, DMX input and DMX thru connections.

The bare power input cable allows any type of power connector to be fitted.

The male and female XLR 5 connectors enable easy daisy-chaining of fixtures (female PDE connector on fixture not used in this case).

The cable is fully IP65 rated for outdoor use and features robust connectors.

Features

Bare cable for power input
XLR 5 TOP DMX input
XLR 5 TOP DMX thru
Martin PDE Hybrid output
IP65 rated

Specifications

Physical Length: 500 mm (19.7 in.) Weight: 325 g (0.52 lbs.)

Construction Housing: PVC Color: Black Protection rating: IP65 Cable Jacket: PVC

Installation Location: indoor or temporary outdoor use Orientation: Any

Connections
AC power input: Bare cable (allows any type of male power connector to be fitted)
DMX input: Neutrik XLR 5-pin Male TOP (IP65)
DMX thru: Neutrik XLR 5-pin Female TOP (IP65)
AC Power and DMX out: PDE hybrid connector (IP65)
All connections hot plugging compatible

Electrical AC power: 100-240V AC nominal, 50/60Hz
Thermal Maximum ambient temperature (Ta max.): 75° C Minimum ambient temperature (Ta min.): -15° C

Environmental RoHS: Compliant REACH: Compliant

Related Items
Active Junction Box Power-DMX-Ethernet to PDE: P/N MAR-91700002
Passive Junction Box Power-DMX-Ethernet to PDE: P/N 91610001
BreakIn Cable Power-DMX-Ethernet to PDE: P/N MAR-91700000
BreakOut Cable PDE to Power-DMX-Ethernet: P/N MAR-91700001
VDO Atomic Dot CLD in cardboard: P/N 90357701
VDO Atomic Dot WRM in cardboard: P/N 90357702
VDO Atomic Bold in cardboard: P/N MAR-90357703

Accessories
Pre-Assembled Hybrid PDE Cables
Power+Data Cable Rental PDE-PDE 1 m: P/N 91616001
Power+Data Cable Rental PDE-PDE 2.5 m: P/N 91616002
Power+Data Cable Rental PDE-PDE 5 m: P/N 91616003
Power+Data Cable Rental PDE-PDE 10 m: P/N 91616004
Power+Data Cable Rental PDE-PDE 25 m: P/N 91616005

Bulk Hybrid PDE Cable and Connectors
Power+Data Connector PDE Male: P/N 91611701
Power+Data Connector PDE Female: P/N 91611702
Power+Data Cable Power-DMX-Ethernet Rental 100m: P/N 91616006

Ordering Information
BreakInOut Cable Power-DMX to PDE: P/N MAR-91700003
