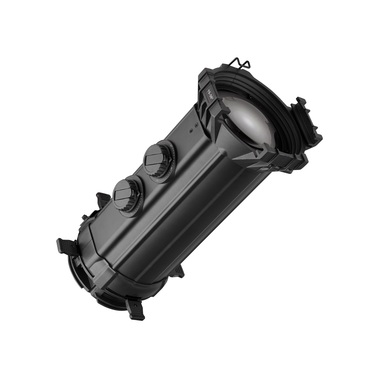

ELP Zoom Lenses

Zoom Lens Accessories for Martin ELP LED Ellipsoidal Lights

ELP Zoom Lenses

Martin ELP Zoom Lenses expand the versatility and range of ELP CL and WW LED ellipsoidal lights with two industry-standard beam ranges and two housing color variants: Lenses are available in 15-30 degree and 25-50 degree beam ranges, in black or white housing.

An all-new 6-lens design optical design delivers unrivaled optical performance, providing the ultrabright output, unmatched flat projection and crisp focus of a static lens, with the speed and flexibility of a zoom lens. Innovations like independent zoom and focus controls, an anti-slip locking mechanism and a service hatch for easy maintenance and cleaning round out the lenses’ user-friendly features.

Bring new simplicity, flexibility and speed to lighting design with Martin ELP Zoom Lenses.

Videos





Features

  • Zoom range: 15–30 degrees
  • Zoom range: 25–50 degrees
  • All-new 6-lens optical design
  • Flat projection across full zoom range
  • Sharp focus across full image area across full zoom range
  • Independent focus and zoom controls
  • All-in-one gobo/accessory gate and focus control
  • Service hatch allows easy lens cleaning and maintenance
  • Critical components exhibit C3 corrosion resistance
  • 4-blade framing system with sharp focus
  • Color gel frame included
  • Additional mechanical locking system prevents slipping when attached to the body
  • Both lens ranges available in black and white housing variants
  • Weight 6.0 kg (13.2 lbs)

Specifications

  • Related Items Martin ELP Zoom Lens Tube 15–30°: P/N 9045121618 Martin ELP Zoom Lens Tube 15–30°, White: P/N 9045122108 Martin ELP Zoom Lens Tube 25–50°: P/N 9045121619 Martin ELP Zoom Lens Tube 25–50°, White: P/N 9045122109
    Ordering Information Martin ELP WW (Body Only): P/N 9045107781 Martin ELP WW (Body Only), White: P/N 9045115165 Martin ELP WW IP (Body Only): P/N 9045122813 Martin ELP WW IP (Body Only), White: P/N 9045122815 Martin ELP CL (Body Only): P/N 9045107780 Martin ELP CL (Body Only), White: P/N 9045115164 Martin ELP CL IP (Body Only): P/N 9045122814 Martin ELP CL IP (Body Only), White: P/N 9045122816

Downloads

  Version Language Size Uploaded
Specifications
file type icon ELP CL IP Spec Sheet
en version A, updated: Dec 2020
en  1.03 MB Dec 2020
file type icon ELP WW IP Spec Sheet
en version A, updated: Dec 2020
en  1010 KB Dec 2020
file type icon ELP CL Spec Sheet
en version B, updated: Jun 2020
en  914 KB Jun 2020
file type icon ELP WW Spec Sheet
en version B, updated: Jun 2020
en  877 KB Jun 2020
Manuals
file type icon ELP Zoom Lens Installation and Safety Manual
fr version A, updated: Jun 2020
fr  277 KB Jun 2020
file type icon ELP Zoom Lens Installation and Safety Manual
de version A, updated: Jun 2020
de  278 KB Jun 2020
file type icon ELP Zoom Lens Installation and Safety Manual
en version A, updated: Jun 2020
en  276 KB Jun 2020
Photometrics
file type icon ELP Zoom Lens Photometric Reports
en version A, updated: Oct 2021
en  10.4 MB Oct 2021
Illustrations
file type icon Martin ELP Zoom lens25-50D zoom lens 2D drawing
updated: Apr 2020
    210 KB Apr 2020
file type icon ELP Zoom Lens Gel Frame Dimensions
updated: Oct 2020
    123 KB Oct 2020
file type icon Martin ELP Zoom lens15-30D zoom lens 2D drawing
updated: Apr 2020
    186 KB Apr 2020
Symbols
file type icon AutoCAD 3D Symbols
en version 2.1, updated: Dec 2023
2.1  en  14.1 MB Dec 2023
file type icon AutoCAD 2D Symbols
en version 2.1, updated: Dec 2023
2.1  en  3.7 MB Dec 2023
file type icon Vectorworks Symbols
en version 3.8, updated: Dec 2023
3.8  en  371 MB Dec 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
