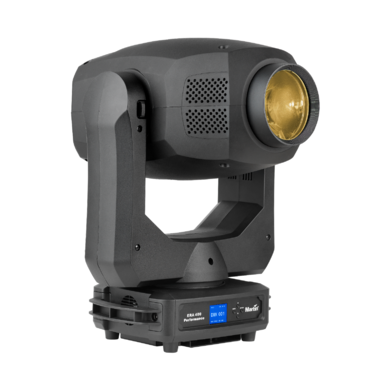

ERA 400 Performance WRM

300W Warm LED-based profile with framing and CMY color mixing

ERA 400 Performance WRM
Larger Images

Designed to fulfill the demand for a bright, compact, tour-worthy moving head, the Martin ERA 400 Performance WRM combines a feature-loaded and rugged, yet cost-efficient profile for entertainment and rental applications. It features a highly efficient 300W warm white LED engine that offers unparalleled 3,200K warm tungsten emulation with a high CRI ideally suited towards small to mid-size theatres and compliments perfectly the Martin ELP range. It produces a sharp image projection with a flat field, includes 1:3 zoom, electronic dimming and strobe, full CMY color mixing and separate color wheel, iris for beam adjustment and fixed and rotating gobo wheels, loaded with user-favorite gobos from the renowned Martin MAC range that include a wide variety of effects, especially when combined with the included rotating prism.

The ERA 400 Performance WRM includes a full curtain framing system which offers lighting designers a high degree of flexibility to achieve precise looks on stage. When fully focused, gobos can be nicely framed with a soft edge, and each of the four framing blades can cross the entire beam independently for a full blackout. The entire system can rotate 90 degrees, allowing designers to direct light exactly where they want it to go and achieve unique movement effects not otherwise possible.

Whether being used for small and mid-sized theaters, concert and touring, live TV productions, corporate shows, cruise lines, or houses of worship, the Martin ERA 400 Performance WRM is ideal for a long list of scenarios, requiring a truly versatile LED profile that offers near limitless design and usage potential.



Lighting For Live Streams

  • FULL FRAMING SYSTEM
    The full curtain framing system allows each of the four framing blades to cross the entire beam independently for full blackout. In addition, the entire framing module can rotate 90 degrees, allowing for precise and accurate image projection for the desired stage area. When fully focused, gobos can be framed with a soft edge, enabling designers a high degree of flexibility in the lighting design.

  • 300 WATT LED LIGHT SOURCE

    With an efficient 300 watt light source, the ERA 400 delivers more output than similar-sized fixtures. Fully electronic dimming ensures extremely fast strobing, instant intensity control, and a flat, consistent field that can be maintained down to zero percent.

  • CMY COLOR MIXING

    Offers subtle pastels to vibrant colors, as well as fast transitions and smooth fades. The color wheel produces nice color splits, fast color bumps and extends overall color gamut and brightness. The native 3000K warm LED allows for warm natural colors with lot of punch.

  • 1:3 ZOOM RANGE

    With 10 to 30 degrees of zoom, the ERA 400 Performance works great on various trim heights and the 30 degree wide angle delivers enough spread for great coverage on smaller stages. Zooming is fast and accurate and maintains a high output throughout the range.

  • COMPACT AND DESIGNED FOR THE ROAD

    The ERA 400 is very compact and low weight for its class, making it easy to handle and rig. The modular design makes accessing and replacing of effects safe, quick, and easy – modules can be swapped in less than a minute.

featured content

FULL FRAMING SYSTEM
The full curtain framing system allows each of the four framing blades to cross the entire beam independently for full blackout. In addition, the entire framing module can rotate 90 degrees, allowing for precise and accurate image projection for the desired stage area. When fully focused, gobos can be framed with a soft edge, enabling designers a high degree of flexibility in the lighting design.

featured content

300 WATT LED LIGHT SOURCE

With an efficient 300 watt light source, the ERA 400 delivers more output than similar-sized fixtures. Fully electronic dimming ensures extremely fast strobing, instant intensity control, and a flat, consistent field that can be maintained down to zero percent.

featured content

CMY COLOR MIXING

Offers subtle pastels to vibrant colors, as well as fast transitions and smooth fades. The color wheel produces nice color splits, fast color bumps and extends overall color gamut and brightness. The native 3000K warm LED allows for warm natural colors with lot of punch.

featured content

1:3 ZOOM RANGE

With 10 to 30 degrees of zoom, the ERA 400 Performance works great on various trim heights and the 30 degree wide angle delivers enough spread for great coverage on smaller stages. Zooming is fast and accurate and maintains a high output throughout the range.

featured content

COMPACT AND DESIGNED FOR THE ROAD

The ERA 400 is very compact and low weight for its class, making it easy to handle and rig. The modular design makes accessing and replacing of effects safe, quick, and easy – modules can be swapped in less than a minute.

Videos





Features

  • Bright 300 watt / 3,200K LED light source
  • 6,000 lumen output
  • Smooth electronic dimming and fast strobe effects
  • Crisp optics with flat field
  • 1:3 Fast zoom
  • CMY color mixing - Vibrant color mixing with a superior palette of colors matching the MAC range
  • 9-slot color wheel –for added color choice and split color effects
  • Full Curtain Framing blades with +/- 45° rotation of entire system for flexible shape generation
  • 7 rotating/indexing gobos – All renowned Martin glass gobos
  • 9 static gobos for great morphing effects
  • Iris – Fast and tight iris
  • 3-facet prism – Real beam separation with rotation and index control for dynamic effects
  • Compact and low weight design

Specifications

  • Physical Length: 379 mm (14.9 in.) Width: 237 mm (9.3 in.) Height: 632 mm (24.9 in) Weight: 22.5 kg (49.6lbs)
    Dynamic Effects Color mixing: CMY, independently variable 0-100% Color wheel: 9 color filters plus open Rotating gobo wheel: 7 gobos plus open, wheel rotation, gobo rotation, indexing and shake Static gobo wheel: 9 gobos plus open, wheel indexing, rotation and shake Iris: 0-100% Framing: Rotatable framing module, +/- 45°, with 4 individually controllable full framing blades with variable angle and position. Prism: Rotating/indexing three-facet prism Electronic dimming: 0 - 100%, four dimming curve options Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout Zoom: Motorized Pan: 540°, coarse & fine control and speed Tilt: 260°, coarse & fine control and speed Focus: Motorized
    Control and Programming DMX channels: 30 DMX compliance: USITT DMX512/1990 RDM compliance: ANSI/ESTA E1.20 Control options: DMX 16-bit control: Dimming, pan and tilt Setting and addressing: Control panel with backlit LCD display Transceiver: Opto-isolated RS-485
    Optics Front lens diameter: 110 mm Zoom range: 10° - 30° Light source: 300W LED engine Minimum LED lifetime: 20000 hours (to >70% luminous output)* Binning: Tight color and flux binning *Manufacturer´s figure obtained under manufacturer´s test conditions
    Photometric Data Light engine luminous output: 15500 lumens Fixture luminous output: 6000 lumens CRI (Color Rendering Index) : >91 CCT: 3200 Kelvin LED refresh rate : 1200 Hz

    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

    Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP 20
    Gobos Gobo diameter: 26.8 mm +/- 0.2 mm (1.1 in. +/- 0.008 in.) Maximum image diameter: 19.0 mm (0.75 in.) Gobo thickness, maximum: 1.1mm borosilicate glass
    Installation Mounting points: Two quarter-turn brackets for rigging Orientation: Any
  • Connections AC power input: Neutrik powerCON TRUE1 DMX data in/out: 3-pin & 5-pin locking XLR
    Electrical

    AC power: 100-240 V AC nominal, 50/60 Hz
    Power supply unit: Auto-ranging electronic switch mode
    Typical half-cycle RMS inrush current at 230 V, 50 Hz: 6.0 A
    Power Factor: 0.99 @ 120 V , 0.97 @ 230 V
    Typical current draw: 3.8 A @ 120 V , 2.0 A @ 230 V *
    Power Consumption
    Typical: 455 W *
    Idle: 44 W *
    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
    Typical: full output white, no effects moving, regulated fan speed.
    Idle: no output, no effects moving, regulated fan speed.

    Thermal Cooling: Forced air (temperature regulated, low noise) Total heat dissipation (calculated, +/- 10%): 1550 BTU/hr. Maximum surface temperature, steady state, at 40° C ambient: 70° C (158° F) Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): 0° C
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 13.5 lm/W LWR*: 262 lm/kg (119 lm/lb)

    LWR = Lumen-to-Weight Ratio

    Approvals Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1) EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015; EN 55032; EN 55035; EN 61000-3-2,-3; EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class B, ICES-005 Class B Australia/NZ: RCM
    Included Items 2 x Omega brackets for rigging clamp attachment
    Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader): .
    Accessories Cables, 16 A, for connection to power in chains:

    Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
    Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
    Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
    Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174

    Cables, 16 A, for relaying power in chains:

    Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
    Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
    Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611786
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

    Connectors:

    Power connector, cable mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789
    Power connector, cable mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788

    Installation hardware:

    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Half-coupler Clamp: P/N 91602005
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

    Ordering Information Martin ERA 400 Performance WRM in cardboard box: P/N 9025121795 Flightcase, two unit for ERA 400: P/N 91511217
