Light engine luminous output: 37,000 lumens LED refresh rate : 3600 Hz Standard Fixture luminous output: 19,000 lumens CRI (Color Rendering Index): >70 CQS (Color Quality Scale): >67 TM-30 Rf (IES TM-30-15 Fidelity Index): >65 TM-30 Rg (IES TM-30-15 Gamut Index): >96 TLCI (Television Lighting Consistency Index): >45 CCT: 6800 K (+/- 250 K) Peak Luminous Intensity: 1,102,000 cd With Optional CRI Boost Filter Fixture luminous output: 13,000 lumens CRI (Color Rendering Index): >79 CQS (Color Quality Scale): >74 TM-30 Rf (IES TM-30-15 Fidelity Index): >75 TM-30 Rg (IES TM-30-15 Gamut Index): >98 TLCI (Television Lighting Consistency Index): >56 CCT: 6500 K (+/- 250 K) Peak Luminous Intensity: 783,000 cd
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 21.8 A
Power Factor: 0.99 @ 120 V , 0.97 @ 230 V
Typical current draw: 6.5 A @ 120 V , 3.2 A @ 230 V *
Power Consumption
Maximum: 856 W
Typical: 778 W *
Idle: 64 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.

LWR = Lumen-to-Weight Ratio

Conversion kits

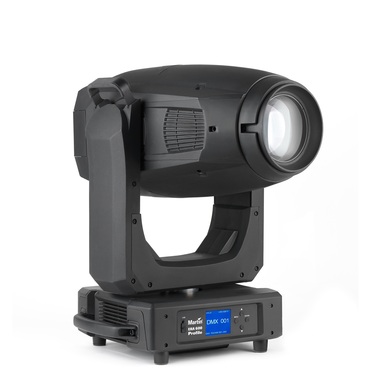

Framing Module (converts ERA 600 Profile to Performance): P/N 5125849-00
Gobo Wheel 3 Effects Module (converts ERA 600 Performance to Profile): P/N 5131771-00
Optical accessories
CRI Boost Filter (CRI >79, installs on gobo wheel): MAR-91614058
Power input cables
Power Input Cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.) : P/N 91611797
Power Input Cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
Power relay cables, 16 A
Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
Power connectors
Cable Connector, Neutrik powerCON TRUE1 NAC3FX-W TOP (female): P/N 91611789HU
Cable Connector, Neutrik powerCON TRUE1 NAC3MX-W TOP (male): P/N 91611788HU
Installation hardware
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Half-coupler Clamp: P/N 91602005
Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
T-shape omega bracket with 1/4 turn, PN 91602008
