ERA 800 Profile

800 W LED moving head profile with CMY color mixing

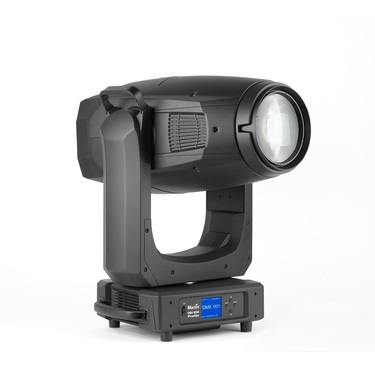

ERA 800 Profile
Larger Images

Combining a fully-featured, cost-efficient and no-nonsense fixture, the Martin ERA 800 Profile is perfect for stadium-sized entertainment and rental productions. Designed to fulfill the demand for a tour-worthy, compact, LED profile moving head with enhanced gobo load-out aimed for the largest stages, the ERA 800 Profile bundles an extremely efficient 800 W, 6,500 K LED engine that produces a powerful 34,000 lumens and delivers sharp image projection with a flat field. Additional benefits include 1:8 zoom, electronic dimming and strobe, CMY/CTO, iris for beam adjustment and dual rotating gobo wheels plus an additional static wheel. It’s also loaded with user-favorite gobos from the renowned Martin MAC range that include a wide variety of effects, especially when combined with the included rotating prisms.

In addition to the largest concert and touring productions, the ERA 800 Profile is ideal for cruise lines, houses of worship, live TV productions, and corporate shows that require a truly versatile LED profile that offers near limitless design and usage potential.

  • COMPACT AND DESIGNED FOR THE ROAD

    The ERA 800 Profile is very compact and low weight for its class making it easy to handle and rig. The modular design makes accessing and replacing of effects safe, quick, and easy – modules can be swapped in less than a minute.

  • ULTRA-BRIGHT LED LIGHT SOURCE

    With an extremely efficient 800 W light source, the ERA 800 Profile delivers more output than similar-sized fixtures. Fully electronic dimming ensures extremely fast strobing, instant intensity control, and a flat, consistent field that can be maintained down to zero percent.

  • GREAT COLOR PALETTE

    Features precise color temperature control with variable color temperature correction (CTO) and vibrant CMY color mixing from light and smooth pastels to rich, saturated primaries. The color wheel produces nice color splits, fast color bumps and extends overall color gamut and brightness.

  • 1:8 ZOOM RANGE

    With 7 to 56 degrees of zoom, the ERA 800 Profile works great even on larger trim heights. Zooming is fast and accurate and maintains a high output throughout the range.

  • LOW MAINTENANCE & POSITIVE ROI

    Steady, stable LED light engine eliminates lamp aging, loss of output, shifts in color temperature & fans sucking dirt through optical path. And, the modular design makes accessing and replacing optical parts safe, quick, and easy.

featured content

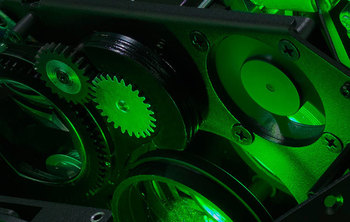

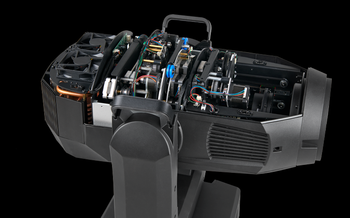

COMPACT AND DESIGNED FOR THE ROAD

The ERA 800 Profile is very compact and low weight for its class making it easy to handle and rig. The modular design makes accessing and replacing of effects safe, quick, and easy – modules can be swapped in less than a minute.

featured content

ULTRA-BRIGHT LED LIGHT SOURCE

With an extremely efficient 800 W light source, the ERA 800 Profile delivers more output than similar-sized fixtures. Fully electronic dimming ensures extremely fast strobing, instant intensity control, and a flat, consistent field that can be maintained down to zero percent.

featured content

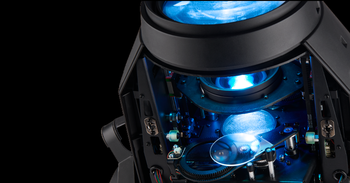

GREAT COLOR PALETTE

Features precise color temperature control with variable color temperature correction (CTO) and vibrant CMY color mixing from light and smooth pastels to rich, saturated primaries. The color wheel produces nice color splits, fast color bumps and extends overall color gamut and brightness.

featured content

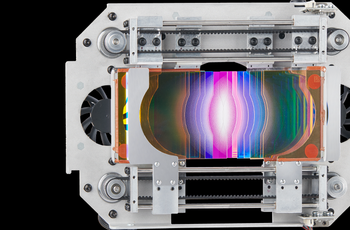

1:8 ZOOM RANGE

With 7 to 56 degrees of zoom, the ERA 800 Profile works great even on larger trim heights. Zooming is fast and accurate and maintains a high output throughout the range.

featured content

LOW MAINTENANCE & POSITIVE ROI

Steady, stable LED light engine eliminates lamp aging, loss of output, shifts in color temperature & fans sucking dirt through optical path. And, the modular design makes accessing and replacing optical parts safe, quick, and easy.

Videos





Features

  • Bright 800 W / 6,500 K LED light source
  • 34,000 lumen output
  • Crisp optics with flat field
  • 1:8 fast zoom
  • Fat beam look with 160 mm front lens
  • CMY color mixing - vibrant color mixing with a superior palette of colors matching the MAC range
  • Linear CTO - daylight to tungsten CCT control and expansion of the CMY palette
  • 6-slot color wheel - for added color choice and split color effects
  • 12 rotating/indexing gobos - all renowned Martin glass gobos
  • 7 static gobos for great morphing effects
  • Animation wheel with continuous bi-directional rotation
  • Iris – fast and tight iris
  • Two prisms - 4-facet and linear - rotation and index control for dynamic effects
  • Soft frost - a light frost leaves gobo artwork visible with a beautiful, soft edge
  • Heavy frost - for wash light effects
  • Compact and low weight design

Specifications

  • Physical Weight: 40.0 kg (88.2 lbs.) Minimum center-to-center distance in side-by-side installation: 730 mm (28.8 in.) Length (head): 608 mm (24.0 in.) Length (base): 416 mm (16.4 in.) Width (base): 290 mm (11.4 in.) Width (across yoke): 431 mm (17.0 in.) Height (head straight up): 802 mm (31.6 in.) Height (maximum): 851 mm (33.5 in)
    Dynamic Effects Color mixing: CMY, independently variable 0-100% Color wheel: 6 color filters plus open Gobo animation: Animation wheel, indexing, continuous rotation with variable speed and direction Rotating gobo wheel: 6 gobos plus open, wheel rotation, gobo rotation, indexing and shake Second rotating gobo wheel: 6 gobos plus open, wheel rotation, gobo rotation, indexing and shake Static gobo wheel: 7 gobos plus open, wheel indexing, rotation and shake Iris: 0-100% Prism: 2 rotating/indexing prisms (4-facet circular and 6-facet linear) Frost: Soft frost effect and heavy frost effect Color temperature control: Variable 6500 - 2700 K Electronic dimming: 0 - 100%, four dimming curve options Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout Zoom: Motorized Pan: 540°, coarse & fine control and speed Tilt: 260°, coarse & fine control and speed Focus: Motorized
    Control and Programming DMX channels: 36 DMX compliance: USITT DMX512/1990 RDM compliance: ANSI/ESTA E1.20 Control options: DMX 16-bit control: Dimming, CMY, CTO, Zoom, Focus, Pan and Tilt Setting and addressing: Control panel with backlit LCD display Transceiver: Opto-isolated RS-485
    Optics Front lens diameter: 160 mm (6.3 in.) Zoom range: 7° - 56° (1:8) Light source: 800 W LED engine Minimum LED lifetime: 20000 hours (to >70% luminous output)* Binning: Tight color and flux binning *Manufacturer´s figure obtained under manufacturer´s test conditions
    Photometric Data

    Light engine luminous output: 70,000 lumens LED refresh rate : 3600 Hz Standard Fixture luminous output: 35,000 lumens CRI (Color Rendering Index): >70 CQS (Color Quality Scale): >67 TM-30 Rf (IES TM-30-15 Fidelity Index): >65 TM-30 Rg (IES TM-30-15 Gamut Index): >93 TLCI (Television Lighting Consistency Index): >44 CCT: 6900 K (+/- 250 K) Peak Luminous Intensity: 1,870,000 cd With Optional CRI Boost Filter Fixture luminous output: 25,000 lumens CRI (Color Rendering Index): >79 CQS (Color Quality Scale): >76 TM-30 Rf (IES TM-30-15 Fidelity Index): >77 TM-30 Rg (IES TM-30-15 Gamut Index): >98 TLCI (Television Lighting Consistency Index): >57 CCT: 6500 K (+/- 250 K)Peak Luminous Intensity: 1,276,000 cd
    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

    Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP20
    Gobos Maximum image diameter: 25 mm (0.98 in.) Gobo material: Borofloat 33 External diameter: 30.0 mm +0 / -0.2 mm (1.181 in. +0 / -0.008 in.) Maximum gobo thickness: 1.1 mm (0.04 in.) Coating: Heavy matted aluminum
    Installation Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets Location: Dry location only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 0.2 m (8 in.) Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)
    Connections DMX and RDM data in/out: 5-pin locking XLR AC mains power input.: Neutrik TRUE1 socket, accepts TRUE1 NAC3FX-W (TOP) connector AC mains power throughput : Neutrik TRUE1 socket, accepts TRUE1 NAC3MX-W (TOP) connector
  • Electrical

    AC power: 100-240 V AC nominal, 50/60 Hz
    Power supply unit: Auto-ranging electronic switch mode
    Typical half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A
    Power Factor: 0.99 @ 120 V , 0.97 @ 230 V
    Typical current draw: 10.8 A @ 120 V , 5.5 A @ 230 V *
    Power Consumption
    Maximum: 1397 W
    Typical: 1270 W *
    Idle: 64 W *
    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
    Typical: full output white, no effects moving, regulated fan speed.
    Idle: no output, no effects moving, regulated fan speed.

    Thermal Cooling: Forced air (temperature-regulated, low noise) Maximum surface temperature, steady state, at 40° C ambient: 70° C (158° F) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Maximum total heat dissipation, calculated, +/- 10%: 4770 BTU/hr.
    Acoustic Data Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 41.4 dB(A) Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 37.7 dB(A)
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 30.2 lm/W LWR*: 875 lm/kg (397 lm/lb)

    LWR = Lumen-to-Weight Ratio

    Approvals Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1) EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN62493 EU EMC: EN 55015, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-3 (B) / NMB-3 (B); ICES-5 (B) / NMB-5 (B) Australia/NZ: RCM
    Included Items Two omega brackets with 1/4 turn fasteners for rigging clamp attachment: 2 x P/N 91602001
    Related Items Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com Martin Companion Cable USB/DMX hardware interface: P/N 91616091
    Accessories

    Conversion kits
    Framing Module (converts ERA 800 Profile to Performance): P/N 5125961-00
    Gobo Wheel 3 Effects Module (converts ERA 800 Performance to Profile): P/N 5131799-00
    Optical accessories
    CRI Boost Filter (CRI >79, installs on gobo wheel): MAR-91614059
    Power input cables
    Power Input Cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.) : P/N 91611797
    Power Input Cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
    Power relay cables, 16 A
    Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
    Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
    Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
    Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
    Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
    Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
    Power connectors
    Cable Connector, Neutrik powerCON TRUE1 NAC3FX-W TOP (female): P/N 91611789HU
    Cable Connector, Neutrik powerCON TRUE1 NAC3MX-W TOP (male): P/N 91611788HU
    Installation hardware
    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Half-coupler Clamp: P/N 91602005
    Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
    T-shape omega bracket with 1/4 turn, PN 91602008

    Ordering Information ERA 800 Profile in cardboard box: P/N 9025123581 ERA 800 Profile (White) in cardboard box: P/N 9025123582 Flightcase, two unit, for 2 x ERA 800 Performance / Profile : P/N 91512255

Downloads

  Version Language Size Uploaded
Specifications
file type icon ERA 800 Profile - Spec Sheet
en version A, updated: Jul 2022
en  1.16 MB Jul 2022
file type icon ERA 800 Performance/Profile - Flightcase
en version A, updated: Jul 2022
en  1.27 MB Jul 2022
file type icon ERA 800 Performance/Profile - Acoustic Test Report
en version C, updated: Jul 2022
en  2.46 MB Jul 2022
Manuals
file type icon ERA 800 Performance/Profile - Sicherheits und Installationshinweise
de version F, updated: Jul 2022
de  12.1 MB Jul 2022
file type icon ERA 800 Performance/Profile - Manuel d'Installation et Sécurité
fr version F, updated: Jul 2022
fr  2.45 MB Jul 2022
file type icon ERA 800 Performance/Profile - User Guide
en version E, updated: Jul 2022
en  4.64 MB Jul 2022
file type icon ERA 800 Performance/Profile - Bedienungsanleitung
de version E, updated: Jul 2022
de  3.97 MB Jul 2022
file type icon ERA 800 Performance/Profile - Guide de l’utilisateur
fr version E, updated: Jul 2022
fr  3.97 MB Jul 2022
file type icon ERA 800 Performance/Profile - Safety and Installation Manual
en version F, updated: Jul 2022
en  12.1 MB Jul 2022
Photometrics
file type icon ERA 800 Performance/Profile - Photometrics
en version A, updated: Jul 2022
en  6.77 MB Jul 2022
Illustrations
file type icon ERA 800 Performance/Profile - 2D Dimensions
en version A, updated: Jul 2022
en  2.29 MB Jul 2022
Symbols
file type icon AutoCAD 2D Symbols
en version 2.1, updated: Dec 2023
2.1  en  3.7 MB Dec 2023
file type icon AutoCAD 3D Symbols
en version 2.1, updated: Dec 2023
2.1  en  14.1 MB Dec 2023
file type icon Martin Professional GDTF Library
en version A, updated: Oct 2023
en  203 Bytes Oct 2023
file type icon Vectorworks Symbols
en version 3.8, updated: Dec 2023
3.8  en  371 MB Dec 2023
CAD Drawings
file type icon ERA 800 Performance/Profile - 3D Drawings
en version A, updated: Jul 2022
en  25.9 MB Jul 2022
Bim Objects
file type icon ERA 800 Profile - BIM Object
en version A, updated: Sep 2021
en  Sep 2021
Compliances
file type icon ELP PAR - EU Declaration of Conformity
en version A, updated: Dec 2020
en  345 KB Dec 2020
file type icon ELP PAR - Déclaration de Conformité Européenne
fr version A, updated: Dec 2020
fr  216 KB Dec 2020
file type icon ELP PAR - FCC Suppliers Declaration of Conformity
en version A, updated: Dec 2020
en  320 KB Dec 2020
file type icon ERA 800 Profile/Performance - ETL Listing Verification
en version A, updated: Jul 2022
en  147 KB Jul 2022
Firmware
platform icon ERA 800 Profile - Firmware
version 3.0.0, updated: Jan 2024
3.0.0     Jan 2024
