Martin Exterior Linear Pro Cove CTC lights are flexible, compact, LED-based architectural fixtures. Delivering uniform light distribution at a 100 degree beam angle, they are ideal for striking indirect lighting of ceilings, walls and other surfaces in stadiums and arenas, cruise ships, theme parks, hotels, casinos, bridges, tunnels or other permanent indoor or outdoor locations.

Featuring highly efficient color temperature control (2700K, 4000K, 6500K), a high color rendering index (CRI) and 12 LEDs/ft, Cove CTC models deliver robust output of 800 lm/ft, perfect for illuminating high walls and surfaces while maintaining lumen intensity. Packed with intelligent features, Cove CTC lights include multiple power modes, Remote Device Management (RDM), simple-to-adjust total lumen output for low power requirements, DMX-controllability, and easy installation via the integrated universal power supply.

With a high focus on sustainability, these fixtures can be daisy-chained using a combined power and data connector, enabling long fixture runs for simpler infrastructures. Simple beam angle changeability makes late design changes and on-site adjustments easy and a smart mounting plate design allows for a range of standard or custom bracket solutions.

The slim design makes these lights easier to integrate into architectural elements with less structural requirements. All models are available in either 1ft or 4ft linear lengths and are shipped in FSC certified packaging.

  • EASE OF INSTALLATION

    The slim design makes them easier to integrate into architectural elements discreetly and with less structural requirements. A smart mounting plate design allows for a variety of standard or custom bracket solutions.

  • SMART INFRASTRUCTURE

    Fixtures are DMX-controllable and easy to install due to their integrated universal power supply. They can also be daisy-chained using a combined power and data connector, which enables long fixture runs for simpler infrastructures.

  • SUPERIOR COLOR TEMPERATURE CONTROL

    Cold, neutral, and warm LEDs are included for precise color temperature control from 2700K to 6500K at high efficacy with 12 LEDs/ft. They also feature a high color rendering index (CRI) for accurate reproduction of colors.

  • EFFICIENT OPERATION

    With more than 60 lm/W, Exterior Linear Pro CTC fixtures are highly efficient. Multiple power modes (12W/10W/5W, including ASHRAE compliance) can be set via Remote Device Management (RDM) to reduce power consumption as needed.

featured content

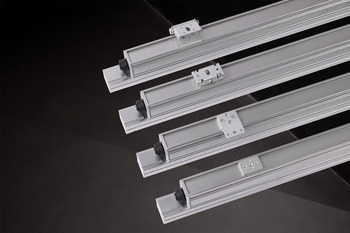

EASE OF INSTALLATION

The slim design makes them easier to integrate into architectural elements discreetly and with less structural requirements. A smart mounting plate design allows for a variety of standard or custom bracket solutions.

featured content

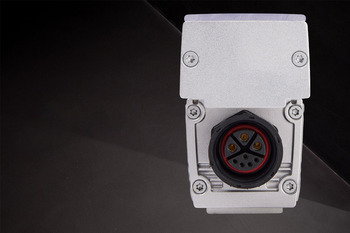

SMART INFRASTRUCTURE

Fixtures are DMX-controllable and easy to install due to their integrated universal power supply. They can also be daisy-chained using a combined power and data connector, which enables long fixture runs for simpler infrastructures.

featured content

SUPERIOR COLOR TEMPERATURE CONTROL

Cold, neutral, and warm LEDs are included for precise color temperature control from 2700K to 6500K at high efficacy with 12 LEDs/ft. They also feature a high color rendering index (CRI) for accurate reproduction of colors.

featured content

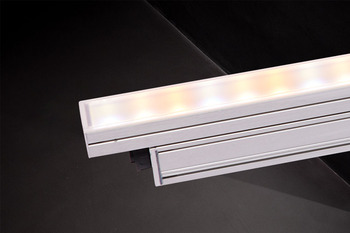

EFFICIENT OPERATION

With more than 60 lm/W, Exterior Linear Pro CTC fixtures are highly efficient. Multiple power modes (12W/10W/5W, including ASHRAE compliance) can be set via Remote Device Management (RDM) to reduce power consumption as needed.

Videos





Features

  • Warm, neutral and cold white LED color temperature control (2700K, 4000K, 6500K) (12 LEDs/ft)
  • 100° beam angle for indirect lighting applications
  • Selectable segment modes (1, 4 or 8 segments)
  • Selectable power consumption (12W/10W/5W) per foot
  • 5W/ft power mode meets ASHRAE standards for linear facade lighting
  • Integrated multi-range power supply unit (PSU) 100-277V for long fixture runs
  • Hybrid power and data connector for easy daisy-chained configurations
  • DMX and RDM control
  • Integrated magnetic switch for local diagnostics
  • Rugged IP66 housing designed for permanent outdoor installations
  • Low weight 0.8 kg/ft (1.9 lbs/ft)
  • Compact design - 40mm (1.57 inch) width

Specifications

  • Physical Width: 40 mm (1.57 inch.) Height: 68 mm (2.67 inch) Length - 1 ft Version: 312mm (1.02 ft) Length - 4 ft Version: 1227mm (4.02 ft) Weight - 1 ft Version: 0.85 kg (1.9 lbs) Weight - 4 ft Version: 2.8 kg (6.2 lbs)
    Dynamic Effects Intensity: 0 - 100% Color temperature control: 2700 K – 6500 K Segment Control: 0.5ft, 1 ft or full 4 ft fixture control
    Control and Programming Control systems: DMX, RDM User interface: Magnetic button to call up fixture status and test fixture Stand-alone control: Up to 20 scenes with individual fade/hold times Control resolution: 8-bit DMX individual color control Dimmer Resolution: 16-bit DMX control of intensity DMX compliance: USITT DMX512/1990 RDM compliance: ANSI/ESTA E1.20 DMX channels 4ft: 3/3/12/24 (standard/1 seg/4 seg/8 seg) DMX channels 1ft: 3/6/3 (standard/1 seg/2 seg)
    Optics Light source: White color (2700k, 4000K, 6500K) LED (12 LEDs per foot) Minimum LED lifetime: 50 000 hours (to >70% luminous output)* Beam angle: 100° Binning: Tight color and flux binning Calibration: Full Gamut Color Calibration (1 step MacAdam ellipse)
    *Figure obtained under manufacturer's test conditions
    Photometric Data CRI (Color Rendering Index) : >70 (higher CRI available on request) CCT: 2700K - 6500K Luminous output:
      1 ft at 12W 4 ft at 48W
    2700K: 520 lumens 2100 lumens
    4000K: 580 lumens 2360 lumens
    6500K: 560 lumens 2250 lumens

    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

    Construction Housing: Aluminum Finish: Clear anodized or optional colors on request Front: Clear polycarbonate Protection rating: IP66 IK rating: IK08 Effective Projected Area (EPA): 0.04 m2 per ft Corrosion resistance: C5 - very high corrosivity / Durability Range: High (ISO 12944-6) Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6), 0.7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)
    Installation Orientation: Any Minimum distance to illuminated surfaces: 0.1 m / 0.3 ft.
  • Connections

    Power/data in/thru: 8-pin custom connectors
    Surge Protection: 4 KV
    Maximum connected 4 ft fixtures *: 42 pcs (52 m /169 ft) @ 230-277 V
    Maximum total string length (cable + fixtures)*: 150 m / 328 ft
    * Refer to system diagram for details on fixture run limitations.

    Electrical

    AC power: 100-277 V AC nominal, 50/60 Hz
    Power supply unit: Auto-ranging electronic switch mode
    Typical half-cycle RMS inrush current at 230 V, 50 Hz: 0.35 A
    Typical earth-leakage current 1 ft: 0.15 mA
    Typical earth-leakage current 4 ft: 0.21 mA
    Power Factor 12 W / 10 W mode: 0.95 @ 100 V / 120 V / 208 V / 230 V / 240 V , 0.90 @ 277 V
    Power Factor 5 W mode: 0.90 @ 100 V / 120 V / 208 V / 230 V / 240 V , 0.70 @ 277 V

    Power Consumption 1 ft
    Maximum: 12 W / 10 W / 5 W *
    Idle: 1.54 W *

    Power Consumption 4 ft
    Maximum: 48 W / 40 W / 20 W *
    Idle: 2.30 W *

    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
    Idle: steady state, all LEDs at zero intensity.
    Power Consumption: Depending on power setting mode.

    Thermal Cooling: Convection Total heat dissipation (calculated, +/- 10%): 41 BTU/hr. per foot Maximum ambient temperature: 45° C (113° F)* Minimum ambient temperature: -30° C (-22° F)
    *Above this temperature, the fixture regulates output to protect from overheating
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant FSC: Certified cardboard inlay and outer packaging
    Approvals Global CB Certification/IECEE: IEC 60598-2-5 (IEC 60598-1) EU safety: EN 60598-2-5 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55032, EN55035, EN 61547, EN 61000-3-2, EN 61000-3-3 US safety: ANSI/UL 1598 US EMC: 47 CFR Part 15 Class B Canadian safety: CSA C22.2 No. 250.0 Australia/NZ: RCM India: BIS IS 10322(Part5/section5)
    Related Items Martin Companion Cable: P/N MAR-91616091 Martin Companion Cable (for firmware update over DMX): Free download from www.martin.com
    Accessories Glare shield, EL Pro 1ft set of 4: P/N MAR-90570022 Glare shield, EL Pro, 4ft set of 4: P/N MAR-90570023 Adjustable bracket EL Pro 10 pcs: P/N MAR-90570025 Flange bracket EL Pro 10 pcs: P/N MAR-90570026 Quick mount bracket EL Pro 10 pcs: P/N MAR-90570027 Junction Box Power DMX to PD: P/N MAR-91700019 Power DMX Cable PD PD 0.2M EU: P/N MAR-91700004 Power DMX Cable PD PD 1M EU: P/N MAR-91700005 Power DMX Cable PD PD 2.5M EU: P/N MAR-91700006 Power DMX Cable PD PD 5M EU: P/N MAR-91700007 Power DMX Cable PD PD 10M EU: P/N MAR-91700008 Power DMX Cable 100M Roll EU: P/N MAR-91700009 Power DMX Cable PD PD 0.2M US: P/N MAR-91700010 Power DMX Cable PD PD 1M US: P/N MAR-91700011 Power DMX Cable PD PD 2.5M US: P/N MAR-91700012 Power DMX Cable PD PD 5M US: P/N MAR-91700013 Power DMX Cable PD PD 10M US: P/N MAR-91700014 End termination cap PD: P/N MAR-91700015 Power DMX Cable 100M Roll US: P/N MAR-91700016 Bulk connector PD female: P/N MAR-91700017 Bulk connector PD male: P/N MAR-91700018
    Ordering Information Exterior Linear Pro cove CTC 1ft: P/N MAR-90570007 Exterior Linear Pro cove CTC 4ft: P/N MAR-90570009

Downloads

  Version Language Size Uploaded
Specifications
file type icon Exterior Linear Pro System Diagram
en version C, updated: Jul 2023
en  497 KB Jul 2023
file type icon Descriptive Specs - Exterior Linear Pro Cove CTC
en version A, updated: Dec 2022
en  81.8 KB Dec 2022
file type icon Exterior Linear Pro Cables and Connectors
en version A, updated: Jan 2023
en  1.46 MB Jan 2023
file type icon Exterior Linear Pro Cove CTC Spec Sheet
en version B, updated: Feb 2023
en  497 KB Feb 2023
Manuals
file type icon Exterior Linear Pro - User, Safety and Installation Manual
en version B, updated: Jul 2023
en  2.25 MB Jul 2023
file type icon Exterior Linear Pro - Bedienungsanleitung mit Installations- und Sicherheitshinweisen
de version B, updated: Jul 2023
de  2.05 MB Jul 2023
file type icon Exterior Linear Pro - Guide de l’utilisateur avec Guide d’installation et de sécurité inclus
fr version B, updated: Jul 2023
fr  2.14 MB Jul 2023
Brochures
file type icon Pro Install Overview Brochure
en updated: Oct 2023
  en  23.1 MB Oct 2023
Photometrics
file type icon Exterior Linear Pro Cove CTC Photometrics
en version B, updated: Apr 2023
en  6.03 MB Apr 2023
Illustrations
file type icon Exterior Linear Pro Graze-Cove - 2D Dimensions (PDF)
en version A, updated: Oct 2022
en  1.04 MB Oct 2022
file type icon Exterior Linear Pro Graze-Cove - 2D Dimensions (DWG)
en version A, updated: Oct 2022
en  4.91 MB Oct 2022
file type icon Junction Box - 2D dimensions (PDF)
en version A, updated: Oct 2022
en  238 KB Oct 2022
file type icon Junction Box - 2D dimensions (DWG)
en version A, updated: Oct 2022
en  1.2 MB Oct 2022
Symbols
file type icon Vectorworks Symbols
en version 3.8, updated: Dec 2023
3.8  en  371 MB Dec 2023
file type icon AutoCAD 3D Symbols
en version 2.1, updated: Dec 2023
2.1  en  14.1 MB Dec 2023
file type icon AutoCAD 2D Symbols
en version 2.1, updated: Dec 2023
2.1  en  3.7 MB Dec 2023
file type icon Martin Professional GDTF Library
en version A, updated: Oct 2023
en  203 Bytes Oct 2023
CAD Drawings
file type icon Exterior Linear Pro Graze-Cove - 3D DWG
en version A, updated: Oct 2022
en  8.07 MB Oct 2022
file type icon Exterior Linear Pro Graze-Cove - 3DS
en version A, updated: Oct 2022
en  2.85 MB Oct 2022
file type icon Junction Box - 3D DWG
en version A, updated: Oct 2022
en  4.18 MB Oct 2022
file type icon Junction Box - 3DS
en version A, updated: Oct 2022
en  6.01 MB Oct 2022
Bim Objects
file type icon Exterior Linear Pro Cove CTC - BIM Object
en version A, updated: Nov 2023
en  Nov 2023
Compliances
file type icon Exterior Linear Pro - EU Declaration of Conformity
en version A, updated: Mar 2023
en  280 KB Mar 2023
file type icon Exterior Linear Pro - UKCA Declaration of Conformity
en version A, updated: Mar 2023
en  279 KB Mar 2023
file type icon Exterior Linear Pro - ETL Listing Verification
en version A, updated: Mar 2023
en  590 KB Mar 2023
file type icon Product Verification and Reliability Report - Exterior Linear Pro
en version B, updated: Nov 2023
en  419 KB Nov 2023
file type icon Exterior Linear Pro - CB Test Certificate
en version B, updated: Jan 2024
en  252 KB Jan 2024
Firmware
platform icon Exterior Linear Pro CTC 1ft - Firmware
version 1.0.0, updated: Jan 2024
1.0.0     Jan 2024
platform icon Exterior Linear Pro CTC 4ft - Firmware
version 1.0.0, updated: Jan 2024
1.0.0     Jan 2024

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
