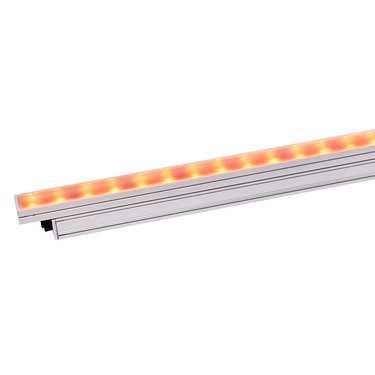

Exterior Linear Pro Cove QUAD

Outdoor Linear Cove Fixture with Color Boosting Technology and Dedicated Color Temperature Channel

Exterior Linear Pro Cove QUAD
Larger Images

Martin Exterior Linear Pro Cove QUAD lights are flexible, compact, LED-based architectural fixtures featuring high output with color boost technology and discreet yet robust housings. They offer uniform light distribution with a 100 degree beam angle that’s perfect for striking indirect lighting of ceilings, walls and other surfaces in stadiums and arenas, cruise ships, theme parks, hotels, casinos, bridges, tunnels, or other permanent indoor or outdoor installations.

These lights feature homogenized color mixing with 8 LEDs/ft and an integrated color boosting feature for full powered illumination of a single color or mixed colors. Each unit is factory calibrated for superior color consistency, making them up to three times brighter than comparable fixtures, yet boasting lower total power consumption. Logic RGB control of the RGBW engine is also included where white is automatically calculated.

Packed with intelligent features, Cove QUAD models offer a dedicated color temperature control channel, which accurately follows the black body curve, empowering lighting designers to set their favorite default color temperature. Integrated segment control allows the fixtures to be controlled down to 6-inch (15 cm) segments, creating more organic and subtle color transitions.

With a high focus on sustainability, Cove QUAD models can be daisy-chained using a combined power and data connector, enabling long fixture runs for simpler infrastructures. Simple beam angle changeability makes late design changes and on-site adjustments easy, and a smart mounting plate design offers a variety of standard or custom bracket solutions.

The slim design of these lights makes them easier to integrate into architectural elements with less structural requirements. All models are available in either 1ft or 4ft linear lengths and are shipped in FSC certified packaging.

  • EASE OF INSTALLATION

    The slim design and low weight makes them easier to integrate into architectural elements discreetly and with less structural requirements. They have flexible change-of-beam angles for late design changes and on-site adjustments. A smart mounting plate design offers a variety of standard or custom bracket solutions.

  • SMART INFRASTRUCTURE

    Fixtures are DMX-controllable and easy to install due to their integrated universal power supply. They can also be daisy-chained using a combined power and data connector, which enables long fixture runs and more simple infrastructures.

  • SOPHISTICATED COLOR CONTROL

    These QUAD color fixtures include logic RGB control of the RGBW engine, making it easier to mix colors when the white color is automatically calculated. Factory calibration of colors offers superior consistency and user-selectable default color temperature with the ability to set a favorite default color temperature. Fine segment control is also included for more organic and subtle color transitions.

  • PREMIXED COLORS WITH COLOR BOOST

    QUAD color LEDs deliver an enhanced visual appearance with homogenous color mixing and high lumen output of mixed colors. A color boosting feature is also included for full powered illumination of a single color or mixed colors, making them up to three times brighter than comparable fixtures yet boasting lower total power consumption.

  • EFFICIENT OPERATION

    With more than 50 lm/W, Exterior Linear Pro QUAD fixtures are highly efficient. Multiple power modes (12W/10W/5W, including ASHRAE compliance) can be set via Remote Device Management (RDM) to reduce power consumption as needed.

  • GRANULAR LIGHTING CONTROL

    An integrated 6-inch (15 cm) segment mode enables more granular lighting control for organic and subtle looks.

featured content

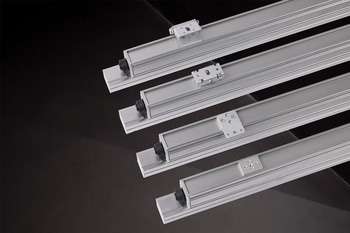

EASE OF INSTALLATION

The slim design and low weight makes them easier to integrate into architectural elements discreetly and with less structural requirements. They have flexible change-of-beam angles for late design changes and on-site adjustments. A smart mounting plate design offers a variety of standard or custom bracket solutions.

featured content

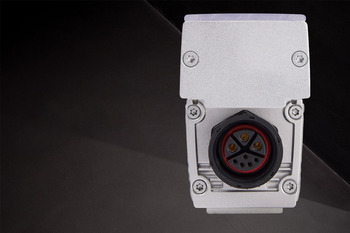

SMART INFRASTRUCTURE

Fixtures are DMX-controllable and easy to install due to their integrated universal power supply. They can also be daisy-chained using a combined power and data connector, which enables long fixture runs and more simple infrastructures.

featured content

SOPHISTICATED COLOR CONTROL

These QUAD color fixtures include logic RGB control of the RGBW engine, making it easier to mix colors when the white color is automatically calculated. Factory calibration of colors offers superior consistency and user-selectable default color temperature with the ability to set a favorite default color temperature. Fine segment control is also included for more organic and subtle color transitions.

featured content

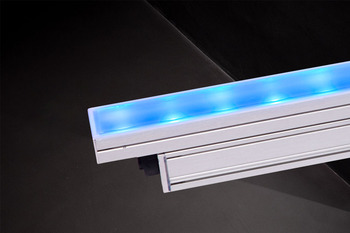

PREMIXED COLORS WITH COLOR BOOST

QUAD color LEDs deliver an enhanced visual appearance with homogenous color mixing and high lumen output of mixed colors. A color boosting feature is also included for full powered illumination of a single color or mixed colors, making them up to three times brighter than comparable fixtures yet boasting lower total power consumption.

featured content

EFFICIENT OPERATION

With more than 50 lm/W, Exterior Linear Pro QUAD fixtures are highly efficient. Multiple power modes (12W/10W/5W, including ASHRAE compliance) can be set via Remote Device Management (RDM) to reduce power consumption as needed.

featured content

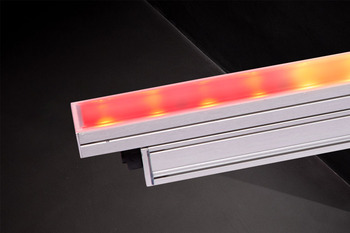

GRANULAR LIGHTING CONTROL

An integrated 6-inch (15 cm) segment mode enables more granular lighting control for organic and subtle looks.

Videos





Features

  • Color-calibrated QUAD color LEDs (8 LEDs/ft)
  • Homogenous color mixing
  • 100° beam angle for indirect lighting applications
  • Dedicated color temperature control channel (1800K - 12000K)
  • Selectable segment modes (1, 4 or 8 segments)
  • Selectable power consumption (12W/10W/5W) per foot
  • 5W/ft power mode meets ASHRAE standards for linear facade lighting
  • Integrated multi-range power supply unit (PSU) 100-277V for long fixture runs
  • Hybrid power and data connector for easy daisy-chained configurations
  • DMX and RDM control
  • Integrated magnetic switch for local diagnostics
  • Rugged IP66 housing designed for permanent outdoor installations
  • Low weight 0.8 kg/ft (1.9 lbs/ft)
  • Compact design - 40mm (1.57 inch) width

Specifications

  • Physical Width: 40 mm (1.57 inch.) Height: 68 mm (2.67 inch) Length - 1 ft Version: 312mm (1.02 ft) Length - 4 ft Version: 1227mm (4.02 ft) Weight - 1 ft Version: 0.85 kg (1.9 lbs) Weight - 4 ft Version: 2.8 kg (6.2 lbs)
    Dynamic Effects Intensity: 0 - 100% Color mixing: RGBW Color temperature control: 1800K – 12000K in 50K steps (default 4000K) Segment Control: 0.5ft, 1 ft or full 4 ft fixture control
    Control and Programming Control systems: DMX, RDM User interface: Magnetic button to call up fixture status and test fixture Stand-alone control: Up to 20 scenes with individual fade/hold times Control resolution: 8-bit DMX individual color control Dimmer Resolution: 16-bit DMX control of intensity DMX compliance: USITT DMX512/1990 RDM compliance: ANSI/ESTA E1.20 DMX channels 4ft: 6/4/3/12/24 (standard/RAW/1 seg/4 seg/8 seg) DMX channels 1ft: 6/4/3/6 (standard/RAW/1 seg/2 seg)
    Optics Light source: QUAD color LED (8 LEDs per foot) Minimum LED lifetime: 50 000 hours (to >70% luminous output)* Beam angle: 100° Binning: Tight color and flux binning Calibration: Full Gamut Color Calibration (1 step MacAdam ellipse)
    *Figure obtained under manufacturer's test conditions
    Photometric Data CRI (Color Rendering Index) : >70 CCT: 1800K – 12000K (default 4000K) Luminous output:
      1 ft at 12W 4 ft at 48W
    FULL: 590 lumens 2520 lumens
    RED: 200 lumens 1000 lumens
    GREEN: 450 lumens 1880 lumens
    BLUE: 90 lumens 420 lumens

    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

    Construction Housing: Aluminum Finish: Clear anodized (standard) or optional colors on request Front: Clear polycarbonate Protection rating: IP66 IK rating: IK08 Effective Projected Area (EPA): 0.04 m2 per ft Corrosion resistance: C5 - very high corrosivity / Durability Range: High (ISO 12944-6) Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6), 0.7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)
    Installation Orientation: Any Minimum distance to illuminated surfaces: 0.1 m / 0.3 ft.
  • Connections

    Power/data in/thru: 8-pin custom connectors
    Surge Protection: 4 KV
    Maximum connected 4 ft fixtures *: 42 pcs (52 m /169 ft) @ 230-277 V
    Maximum total string length (cable + fixtures)*: 150 m / 328 ft
    * Refer to system diagram for details on fixture run limitations.

    Electrical

    AC power: 100-277 V AC nominal, 50/60 Hz
    Power supply unit: Auto-ranging electronic switch mode
    Typical half-cycle RMS inrush current at 230 V, 50 Hz: 0.35 A
    Typical earth-leakage current 1 ft: 0.15 mA
    Typical earth-leakage current 4 ft: 0.21 mA
    Power Factor 12 W / 10 W mode: 0.95 @ 100 V / 120 V / 208 V / 230 V / 240 V , 0.90 @ 277 V
    Power Factor 5 W mode: 0.90 @ 100 V / 120 V / 208 V / 230 V / 240 V , 0.70 @ 277 V

    Power Consumption 1 ft
    Maximum: 12 W / 10 W / 5 W *
    Idle: 1.54 W *

    Power Consumption 4 ft
    Maximum: 48 W / 40 W / 20 W *
    Idle: 2.30 W *

    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
    Idle: steady state, all LEDs at zero intensity.
    Power Consumption: Depending on power setting mode.

    Thermal Cooling: Convection Total heat dissipation (calculated, +/- 10%): 41 BTU/hr. per foot Maximum ambient temperature: 45° C (113° F)* Minimum ambient temperature: -30° C (-22° F)
    *Above this temperature, the fixture regulates output to protect from overheating
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant FSC: Certified cardboard inlay and outer packaging Efficacy (max output): 50 lm/W LWR*: 706 lm/kg (316 lm/lb)

    *LWR = Lumen-to-Weight Ratio

    Approvals Global CB Certification/IECEE: IEC 60598-2-5 (IEC 60598-1) EU safety: EN 60598-2-5 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55032, EN55035, EN 61547, EN 61000-3-2, EN 61000-3-3 US safety: ANSI/UL 1598 US EMC: 47 CFR Part 15 Class B Canadian safety: CSA C22.2 No. 250.0 Australia/NZ: RCM India: BIS IS 10322(Part5/section5)
    Related Items Martin Companion Cable: P/N MAR-91616091 Martin Companion Cable (for firmware update over DMX): Free download from www.martin.com
    Accessories Glare shield, EL Pro 1ft set of 4: P/N MAR-90570022 Glare shield, EL Pro, 4ft set of 4: P/N MAR-90570023 Adjustable bracket EL Pro 10 pcs: P/N MAR-90570025 Flange bracket EL Pro 10 pcs: P/N MAR-90570026 Quick mount bracket EL Pro 10 pcs: P/N MAR-90570027 Junction Box Power DMX to PD: P/N MAR-91700019 Power DMX Cable PD PD 0.2M EU: P/N MAR-91700004 Power DMX Cable PD PD 1M EU: P/N MAR-91700005 Power DMX Cable PD PD 2.5M EU: P/N MAR-91700006 Power DMX Cable PD PD 5M EU: P/N MAR-91700007 Power DMX Cable PD PD 10M EU: P/N MAR-91700008 Power DMX Cable 100M Roll EU: P/N MAR-91700009 Power DMX Cable PD PD 0.2M US: P/N MAR-91700010 Power DMX Cable PD PD 1M US: P/N MAR-91700011 Power DMX Cable PD PD 2.5M US: P/N MAR-91700012 Power DMX Cable PD PD 5M US: P/N MAR-91700013 Power DMX Cable PD PD 10M US: P/N MAR-91700014 End termination cap PD: P/N MAR-91700015 Power DMX Cable 100M Roll US: P/N MAR-91700016 Bulk connector PD female: P/N MAR-91700017 Bulk connector PD male: P/N MAR-91700018
    Ordering Information Exterior Linear Pro cove QUAD 1ft: P/N MAR-90570001 Exterior Linear Pro cove QUAD 4ft: P/N MAR-90570004
