Martin Exterior Linear Pro Graze QUAD lights are flexible, compact, LED-based architectural fixtures featuring high output with color boost technology and discreet yet robust housings. Delivering uniform light distribution of 15 degrees, they are perfect for highlighting textured surfaces, walls, facades, ceilings and other surfaces in stadiums and arenas, cruise ships, theme parks, hotels, casinos, bridges, tunnels or other permanent indoor or outdoor installations.

Graze QUAD models feature homogenized color mixing with 8 LEDs/ft and an integrated color boosting feature for full-powered illumination of a single color or mixed colors. Each unit is factory calibrated for superior color consistency, making them up to three times brighter than comparable fixtures, yet boasting lower total power consumption. Logic RGB control of the RGBW engine is also included where white is automatically calculated. Optional micro lens film can be added for a wide range of additional beam configurations.

Packed with intelligent features, these fixtures offer a dedicated color temperature control channel, which accurately follows the black body curve, empowering lighting designers to set their favorite default color temperature. Integrated segment control allows the fixtures to be controlled down to 6-inch (15 cm) segments, creating more organic and subtle color transitions.

With a high focus on sustainability, these lights can be daisy-chained using a combined power and data connector, enabling long fixture runs for simpler infrastructures. Simple beam angle changeability makes late design changes and on-site adjustments easy and a smart mounting plate design offers a variety of standard or custom bracket solutions.

The slim design of these lights makes them easier to integrate into architectural elements with less structural requirements. All models are available in either 1ft or 4ft linear lengths and are shipped in FSC certified packaging.

• EASE OF INSTALLATION

  The slim design and low weight makes them easier to integrate into architectural elements discreetly and with less structural requirements. They have flexible change-of-beam angles for late design changes and on-site adjustments. A smart mounting plate design offers a variety of standard or custom bracket solutions.

• SOPHISTICATED COLOR CONTROL

  These QUAD color fixtures include logic RGB control of the RGBW engine, making it easier to mix colors when the white color is automatically calculated. Factory calibration of colors offers superior consistency and user-selectable default color temperature with the ability to set a favorite default color temperature. Fine segment control is also included for more organic and subtle color transitions.

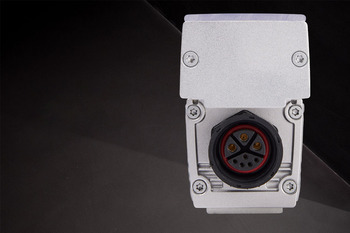

• SMART INFRASTRUCTURE

  Fixtures are DMX-controllable and easy to install due to their integrated universal power supply. They can also be daisy-chained using a combined power and data connector, which enables long fixture runs for simpler infrastructures.

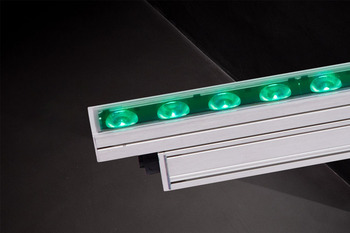

• PREMIXED COLORS WITH COLOR BOOST

  QUAD color LEDs deliver an enhanced visual appearance with homogenous color mixing and high lumen output of mixed colors. A color boosting feature is also included for full powered illumination of a single color or mixed colors. For superior color consistency, each unit is also factory calibrated making them up to three times brighter than comparable fixtures yet boasting lower total power consumption.

• EFFICIENT OPERATION

  With more than 50 lm/W, Exterior Linear Pro QUAD fixtures are highly efficient. Multiple power modes (12W/10W/5W, including ASHRAE compliance) can be set via Remote Device Management (RDM) to reduce power consumption as needed.

• GRANULAR LIGHTING CONTROL

  An integrated 6-inch (15 cm) segment mode enables more granular lighting control for organic and subtle looks
