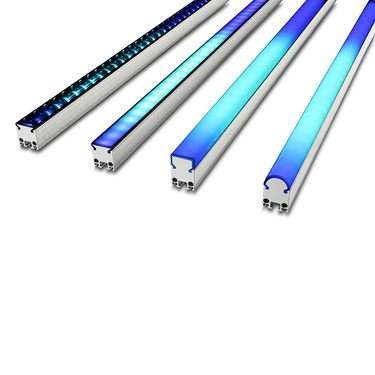

Exterior PixLine 20

Outdoor rated linear LED video fixture - 20 mm pitch

Exterior PixLine 20
Larger Images

Soon to be discontinued - please contact your dealer for information

The Exterior PixLine 20 is a  linear LED video fixture for media facades and creative installations. The Exterior PixLine 20 can be combined with a wide variety of lenses and diffusers for the right look for every application. The Exterior PixLine 20 is driven by the Martin P3 System Controller family for easy setup and video display, and it is also backwards compatible with DMX for smaller setups. The fixtures are available in two lengths to match installation requirements, while the power source is hidden.

How processing works for LED video

Learn more about our product verification and reliability

  • Wide range of pixel pitch, lens and diffuser options for flexibility of look
  •  Fully outdoor-rated
  •  Easy setup and cabling for clean installation
  • Family of ultimate creative possibilities

    The Exterior PixLine family consists of linear LED Video sticks with 10, 20 and 40 mm pixel pitch for easy design of any application.

  • Variety of diffusers for different looks

    All Exterior PixLines are available with 4 different diffusers allowing for selecting the right look for the right application: Flat clear front, Flat diffused front, Square diffused front and Round diffused front.

  • Dedicated graze version

    A dedicated graze version has been designed to achieve an effective graze light and wall wash distribution. The lens provides a beam angle of 25° X 85° with the light tilted 5° towards the wall.

  • Easy infrastructure

    The Exterior PixLine products can be controlled via the Martin P3 protocol for easy mapping and integration with other Martin LED Video products onto the same control system.
    For small or pure lighting applications, the Exterior PixLine also accepts RDM/DMX, enabling even more versatile use.

  • Easy daisy-chaining

    All Exterior PixLines products feature a single connector for data and power. This enables easy daisy-chaining in long runs without requiring power or data re-feeds halfway, greatly simplifying system setup.

  • Easy mounting

    The Exterior PixLine can easily be installed in the optional mounting profile, which also conceals the cables. The Exterior PixLine also includes an M6 bolt track for direct mounting on a surface or structure.

featured content

Family of ultimate creative possibilities

The Exterior PixLine family consists of linear LED Video sticks with 10, 20 and 40 mm pixel pitch for easy design of any application.

featured content

Variety of diffusers for different looks

All Exterior PixLines are available with 4 different diffusers allowing for selecting the right look for the right application: Flat clear front, Flat diffused front, Square diffused front and Round diffused front.

featured content

Dedicated graze version

A dedicated graze version has been designed to achieve an effective graze light and wall wash distribution. The lens provides a beam angle of 25° X 85° with the light tilted 5° towards the wall.

featured content

Easy infrastructure

The Exterior PixLine products can be controlled via the Martin P3 protocol for easy mapping and integration with other Martin LED Video products onto the same control system.
For small or pure lighting applications, the Exterior PixLine also accepts RDM/DMX, enabling even more versatile use.

featured content

Easy daisy-chaining

All Exterior PixLines products feature a single connector for data and power. This enables easy daisy-chaining in long runs without requiring power or data re-feeds halfway, greatly simplifying system setup.

featured content

Easy mounting

The Exterior PixLine can easily be installed in the optional mounting profile, which also conceals the cables. The Exterior PixLine also includes an M6 bolt track for direct mounting on a surface or structure.

Videos













Features

  • 20 mm pixel pitch
  • 125 cd per meter calibrated
  • 80 lumen per foot calibrated
  • High-quality 16-bit per color image processing technology
  • Pixel-level brightness and color calibration for optimal image quality
  • P3/DMX controllable (automatic protocol detection)
  • Intuitive mapping and addressing via P3 System Controller
  • Combined power/data input (single cable for power and data input)
  • Supported by integrated power and data processor (P3 PowerPort 1500 or P3 PowerPort 1000 IP) and simple cabling system
  • Available in standard length of 1280 mm and 320 mm

Specifications

  • Physical Length: Available in 320 mm (12.6 in.) and 1280 mm (50.4 in.) length versions Width: 27 mm (1.1 in.) Height:

    with flat diffuser / clear front: 32 mm (1.3 in.)
    with flat diffuser / clear front in mounting profile: 74 mm (3.0 in.)
    with graze (asymmetric wallwasher) lens: 42 mm (1.7 in.)
    with asymmetric wallwasher lens in mounting profile: 84 mm (3.4 in.)
    with round diffuser: 42 mm (1.7 in.)
    with round diffuser in mounting profile: 84 mm (3.4 in.)

    Weight: 1.2 kg / m (0.9 lbs. per foot) NB: To allow for thermal expansion, fixtures are 10 mm shorter than the nominal lengths given above *Fixtures must be installed with a 10 mm gap to allow for thermal expansion
    Control and Programming Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color DMX channels: 3/10/13/31/55/199 DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Control options: Martin P3™ System Controller via Martin P3™ PowerPort 1500 / Martin P3™ PowerPort 1000 IP, and/or DMX Control modes: RGB, basic, segment and pixel-level Protocol detection: Automatic Setting and addressing: Martin P3™ System Controller or RDM-compliant controller Color and intensity calibration: Pixel-level Firmware update: Via Martin P3™ System Controller
    Control/User Interface Device status: Multi-color visual indication Device test and reset: Magnetic switch to call up local test patterns and reset device
    Optics Minimum LED lifetime: 50,000 hours (to >70% luminous output)* Options:

    Clear Front: Viewing angle 110°
    Flat Diffuser: Viewing angle 160°
    Round Diffuser: Viewing angle 260°
    Square Diffuser: Viewing angle 300°
    Asymmetric graze Lens: Beam angle 25° X 85°

    LED manufacturer: Osram Binning: Tight color and flux binning Calibration: Full Gamut Pixel Calibration *Figure obtained under manufacturer’s test conditions
    Photometric Data Color resolution: 16 bits per color (48 bit per pixel) Pixels: 50 per meter Pitch (pixel center-to-center): 20.00 mm Luminous intensity: 125 cd per meter (calibrated mode) Total output, calibrated mode: 250 lumens per meter (4,166 nits (modules spaced 30 mm center-to-center))

    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

    Video Processing

    Brightness control
    Gamma correction and control
    Color temperature control
    Color space control
    Calibration processing
    Synchronization

    Signal Protocol P3 (via Martin P3™ PowerPort) or DMX
    Construction Color: Clear anodized (customized colors available on project basis) Base: Extruded aluminum profile Protection rating: IP66 Impact resistance: IK05 Corrosion resistance: C5-M (very high corrosivity/marine, ISO 2944) Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6)
    0,7g RMS Random (IEC 60068-2-64)
    RoHS compliant
  • Installation Mounting: Slot for locking nuts on back of profile (M6) and/or installation mounting profile Orientation: Any
    Connections Power and data input: 6-pin custom (BBD) IP66-rated Power and data thru: 6-pin custom (BBD) IP66-rated Hot plugging compatible
    Electrical Nominal input voltage: 48V DC +/- 4% Power supply options: Martin P3™ PowerPort 1500, Martin P3™ PowerPort 1000 IP, Martin IP66 PSU or generic 48 VDC PSU Maximum total power consumption: 17 W per meter (at max. intensity, full white) Surge protection: 4 KV
    Thermal Cooling: Convection Total heat dissipation (calculated, +/- 10%): 55 BTU/hr per meter Maximum ambient temperature (Ta max.): 55° C (131° F)* Minimum ambient temperature (Ta min.): -30° C (-22° F) *Above this temperature, the fixture regulates output to protect from overheating (P3 thermal throttling)
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 15 lm/W LWR*: 208 lm/kg (89 lm/lb)

    *LWR = Lumen-to-Weight Ratio

    Approvals EU safety: EN 60950-1, EN 60950-22 EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3 US safety: UL 60950-1, UL 60950-22 US EMC: FCC Part 15 Class A Canadian safety: CSA C22.2 No. 60950-1, No. 60950-22 Canadian EMC: ICES-003 Class A Australia/NZ: RCM India: BIS
    Related Items Martin P3™ PowerPort 1500: P/N 90721040 Martin P3™ PowerPort 1000 IP Installation: P/N 90721080 Martin DMX PowerPort 375: P/N 90721094 Martin™ IP66 PSU 240 W external power supply unit: P/N 90760330 Martin P3-050™ System Controller: P/N 90721090 Martin P3-150™ System Controller: P/N 90721015 Martin P3-300™ System Controller: P/N 90721060 Martin P3-PC™ System Controller: Free download from martin.com
    Accessories Magnetic Test Tool, set of 10: P/N 91610139 Mounting hardware:

    Exterior PixLine™ 20 Mounting Profile, 310 mm (12.2 in.), aluminum: P/N 91611700
    Exterior PixLine™ 20 Mounting Profile, 1270 mm (50.0 in.), aluminum: P/N 91611710
    Exterior PixLine™ Mounting Profile Locks, set of 10: P/N 91611725

    Input Adapter Cables:

    Power + Data Input Adapter, 4-pin male XLR (for P3 PowerPort 1500) to female BBD, 0.25 m (0.9 ft.): P/N 91616046
    Power + Data Input Adapter, 5-pin male XLR + wire tails (for PSU) to female BBD, 0.25 m (0.9 ft.): P/N 91616048
    Power + Data Input Adapter, 5-pin male XLR + male Martin™ IP66 PSU to fem. BBD, 0.25 m (0.9 ft.): P/N 91616050
    Power + Data Input Adapter, 5-pin male XLR + 4-pin male XLR to female BBD, 0.25 m (0.9 ft.): P/N 91616049

    Output Adapter Cables:

    Power + Data Output Adapter male BBD to 4-pin female XLR, 0.25 m (0.9 ft.): P/N 91616047
    DMX Output Adapter, male BBD to 5-pin female XLR, 0.25 m (0.9 ft.): P/N 91616051

    Extension Cables, CMX Type:

    Power + Data Extension Cable, Installation type CMX, BBD-BBD 1 m (3.3 ft.): P/N 91616055
    Power + Data Extension Cable, Installation type CMX, BBD-BBD, 2.5 m (8.2 ft.): P/N 91616056
    Power + Data Extension Cable, Installation type CMX, BBD-BBD, 5 m (16.4 ft.): P/N 91616057
    Power + Data Extension Cable, Installation type CMX, BBD-BBD, 10 m (32.9 ft.): P/N 91616058
    Power + Data Extension Cable, Installation type CMX, BBD-BBD, 25 m (82.1 ft.): P/N 91616059
    Power + Data Extension Cable, Installation type CMX, without connectors, 100 m (328.1 ft.): P/N 91616060

    Extension Cables, Low Smoke Zero Halogen Type:

    Power + Data Extension Cable, Installation type LSZH, BBD-BBD 1 m (3.2 ft.): P/N 91616012
    Power + Data Extension Cable, Installation type LSZH, BBD-BBD 2.5 m (8.2 ft.): P/N 91616013
    Power + Data Extension Cable, Installation type LSZH, BBD-BBD 5 m (16.4 ft.): P/N 91616014
    Power + Data Extension Cable, Installation type LSZH, BBD-BBD 10 m (32.8 ft.): P/N 91616015
    Power + Data Extension Cable, Installation type LSZH, BBD-BBD 25 m (82 ft.): P/N 91616016
    Power + Data Extension Cable, Installation type LSZH, without connectors, 100 m (328.1 ft.): P/N 91616017

    Loose Connectors:

    Power + Data Cable Connector, BBD, male: P/N 91611750
    Power + Data Cable Connector, BBD, female: P/N 91611751
    Blanking caps for unused female BBD connectors, set of 10: P/N 91616052

    Ordering Information Exterior PixLine™ 20 RGB, 310 mm, Clear Front, Aluminum: P/N 90356835 Exterior PixLine™ 20 RGB, 1270 mm, Clear Front, Aluminum: P/N 90356830 Exterior PixLine™ 20 RGB, 310 mm, Diffuser Front, Aluminum: P/N 90356825 Exterior PixLine™ 20 RGB, 1270 mm, Diffuser Front, Aluminum: P/N 90356820 Exterior PixLine™ 20 RGB, 310 mm, Round Diffuser Front, Aluminum: P/N 90356815 Exterior PixLine™ 20 RGB, 1270 mm, Round Diffuser Front, Aluminum: P/N 90356810 Exterior PixLine™ 20 RGB, 310 mm, Square Diffuser Front, Aluminum: P/N 90356805 Exterior PixLine™ 20 RGB, 1270 mm, Square Diffuser Front, Aluminum: P/N 90356800 Exterior PixLine™ 20 RGB, 310 mm, Graze (Asymmetric Lens), Left, Aluminum: P/N 90356795 Exterior PixLine™ 20 RGB, 1270 mm, Graze (Asymmetric Lens), Left, Aluminum: P/N 90356790 Exterior PixLine™ 20 RGB, 310 mm, Graze (Asymmetric Lens), Right, Aluminum: P/N 90356785 Exterior PixLine™ 20 RGB, 1270 mm, Graze (Asymmetric Lens), Right, Aluminum: P/N 90356780 For graze models, Left or Right = direction of light output when looking from male to female connector
