Length:
165 mm (6.49 inch)
Width:
275 mm (10.83 inch.)
Height:
370 mm (14.57 inch.)
Weight:
12.4 kg (27.3 lbs)
Intensity:
0 - 100 %
Color temperature control:
2400K - 6500K
Control systems:
DMX, RDM
User interface:

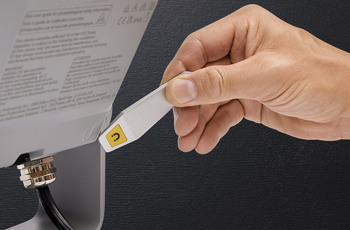

Magnetic sensor for local diagnostics and focusing
Stand-alone control:
Up to 20 scenes with individual fade/hold times
Control resolution:
8-bit DMX control of each color
Dimmer Resolution:
16-bit DMX control of intensity
DMX channels:
3/3 (Standard/Basic)
DMX compliance:
USITT DMX512/1990
RDM compliance:
ANSI/ESTA E1.20
DMX/RDM Transceiver:
Galvanic-isolated RS-485
Firmware update:
Serial upload via DMX link

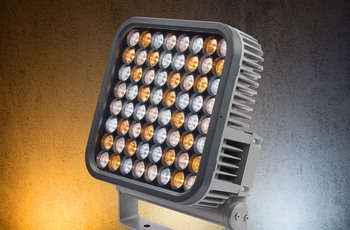

Light source:
12 x 2400K, 12 x 4000K, 12 x 6500K white color LEDs
Minimum LED lifetime:
100 000 hours (to > 70% luminous output)*
LED manufacturer:
Cree
Binning:
Tight color and flux binning
*Figure obtained under manufacturer's test conditions at Ta = 25° C.
Native beam angle:
7°
Narrow micro lens:
9°
Medium micro lens:
15°
Wide micro lens:
30°
Very Wide micro lens:
50°
Asymmetric micro lens:
8° x 60°
CRI (Color Rendering Index) :
> 70
CCT:
2400K - 6500K (default 4000K)
2400K:
4900 lm
4000K:
10500 lm
6500K:
7500 lm
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25 °C ambient.
Housing:
Cast Aluminum
Color:
Traffic grey RAL 7042 - other colors available on request
Surface treatment:
Anodized and electrostatic powder-coated
Protection rating:
IP66
Effective Projected Area (EPA):
0.097 m² / 0.120 m²
Impact resistance:
IK08
Corrosion resistance:
C5 High (ISO 12944-6)
Vibration resistance:
1.0g, Sinusoidal (IEC 60068-2-6), 0,7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)
Mounting:
Adjustable bracket
Orientation:
Any
Minimum distance to illuminated surfaces:
0.1 m (0.3 ft.)
Power connection:
2 m (6.5 ft.) cable tail open ended
Power input cable type, EU models:
H07RN-F 3G 1.0 mm², 450/750V, VDE
Power input cable type, US models:
PVC SJTW 3 x 1.31 mm² (16AWG) 105° C 300 V VW-1
Data connection:
2 m (6.5 ft.) open ended 6-conductor combined input + output cable tail
Hybrid power/data cables (in & thru) 8-pin custom connectors available on request
AC power:
100 - 240 / 277 V nominal, 50/60 Hz
Power supply unit:
Auto-ranging electronic switch-mode
Typical half-cycle RMS inrush current:
13 A
Surge protection:
4 KV
Max earth leakage:
0.5 mA
Power factor:
0.99 @ 110 V / 120 V, 0.95 @ 208 V / 230V, 0.92 @ 277 V
Max current draw:
1.50 A @ 100 V, 1.25 A @ 120 V, 0.65 A @ 230 V, 0.54 A @ 277 V
Maximum:
150 W (reduced mode 120W)*
Idle:
3.5 W*
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Idle: all LEDs at zero intensity
Cooling:
Convection
Total heat dissipation (calculated, +/- 10%):
512 BTU/hr
Maximum ambient temperature:
45° C (113° F)*
Minimum ambient temperature:
-30° C (-22° F)**
*Above this temperature, the fixture regulates output to protect from overheating.
**Power must be maintained below -20° C (-4° F)
RoHS:
Compliant
REACH:
Compliant
WEEE:
Compliant
Proposition 65:
Compliant
Efficacy (max output):
71 lm/W
LWR*:
847 lm/kg (385 lm/lb)*
*LWR = Lumen-to-Weight Ratio

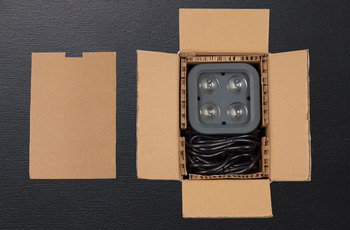

Packaging:
FSC certified cardboard inlay and outer box
Global CB Certification/IECEE:
IEC 60598-2-5 (IEC 60598-1)
EU safety:
EN 60598-2-5 (EN 60598-1), EN 62471, EN 62493
US safety:
ANSI/UL 1598
US EMC:
EN 55015, EN 55032, EN55035, EN 61547, EN 61000-3-2, EN 61000-3-3
Canadian safety:
CSA C22.2 No. 250.0
Australia/NZ:
RCM
United Kingdom:
UKCA
India:
BIS IS 10322(Part5/section5) - Pending

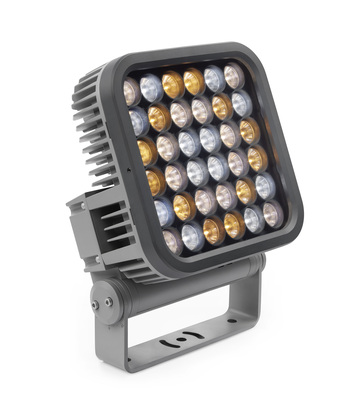

Exterior Wash Pro L CTC, EU, grey:
P/N MAR-90590011
Exterior Wash Pro L CTC, US, grey:
P/N MAR-90590015
Micro Lens Pro L - Narrow:
P/N MAR-90590036
Micro Lens Pro L - Medium:
P/N MAR-90590037
Micro Lens Pro L - Wide:
P/N MAR-90590038
Micro Lens Pro L - Very Wide:
P/N MAR-90590039
Micro Lens Pro L - Asymmetric:
P/N MAR-90590040
Exterior Wash Pro Multitool:
P/N MAR-90590025
Hybrid PD cable tail In/Out 0.5 m, black:
P/N MAR-91700020
Attachment plate for safety wire:
P/N MAR-90590050
Baffle Snoot Pro L CTC:
P/N MAR-90590023
version C,
updated: Dec 2023
