Exterior Wash Pro M CTC

Outdoor-rated wash light with color temperature control

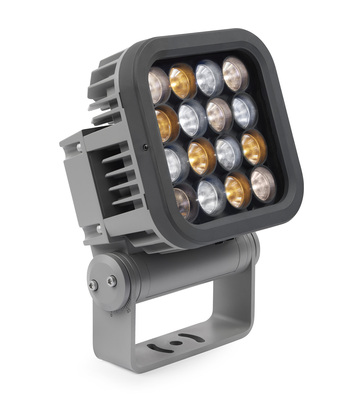

Exterior Wash Pro M CTC
Larger Images

Engineered for harsh conditions and creativity, Exterior Wash Pro M CTC provides a logical, user-friendly and versa¬tile lighting solution designed to illuminate mid-sized structures and building facades. Featuring external lenses and an optional baffle snoot, this fixture provides configurable beam control. Exterior Wash Pro M CTC offers dedicated color temperature control from 2400K-6500K. Designed for permanent outdoor installations and backed by a 5-year warranty, this fixture meets rigorous environmental standards.

  • LOGICAL AND COHESIVE PRODUCT FAMILY

    Choose from four sizes and lumen output packages that accommodate various installations and budgets. Enjoy a compact, lightweight design with integrated baffle snoot option for added versatility.

  • PRECISE BEAM CONTROL

    Achieve precise light control and high intensity, while minimizing stray light in long-range applications, thanks to the narrow beam angle.

  • EXTENDED COLOR TEMPERATURE RANGE

    Exterior Wash Pro CTC models feature warm (2400K), Medium (4000K) and Cold (6500K) LEDs for extended color temperature range and improved white light quality.

  • SUPERIOR TEMPERATURE CONTROL

    Dedicated control channel to choose a color temperature from a warm 2400K up to a cold 6500 Kelvin.

  • SMART CONTROL

    The integrated magnetic sensor is ideal for local diagnostics and focusing. Also included are RDM control and stand-alone programming via Martin Companion for easy configuration.

  • RESPONSIBLE CHOICE

    Durable design for permanent outdoor installations, backed by a 5-year warranty, and meet rigorous environmental standards. Their compact, lightweight design minimizes environmental impact and shipping costs, they are fully repairable, and ship in full cardboard FSC-certified packaging.

featured content

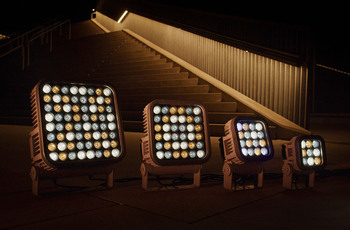

LOGICAL AND COHESIVE PRODUCT FAMILY

Choose from four sizes and lumen output packages that accommodate various installations and budgets. Enjoy a compact, lightweight design with integrated baffle snoot option for added versatility.

featured content

PRECISE BEAM CONTROL

Achieve precise light control and high intensity, while minimizing stray light in long-range applications, thanks to the narrow beam angle.

featured content

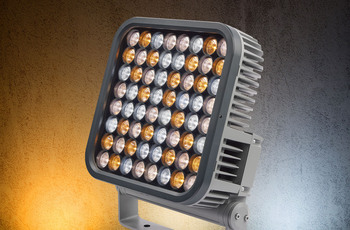

EXTENDED COLOR TEMPERATURE RANGE

Exterior Wash Pro CTC models feature warm (2400K), Medium (4000K) and Cold (6500K) LEDs for extended color temperature range and improved white light quality.

featured content

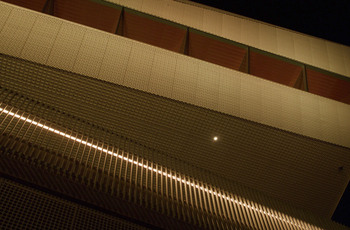

SUPERIOR TEMPERATURE CONTROL

Dedicated control channel to choose a color temperature from a warm 2400K up to a cold 6500 Kelvin.

featured content

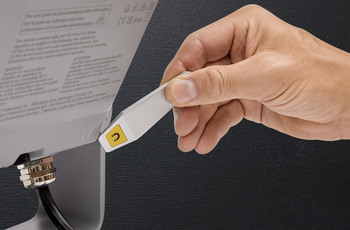

SMART CONTROL

The integrated magnetic sensor is ideal for local diagnostics and focusing. Also included are RDM control and stand-alone programming via Martin Companion for easy configuration.

featured content

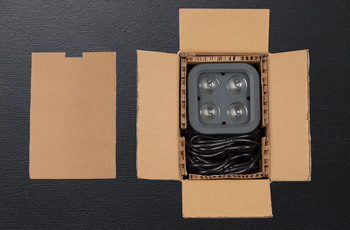

RESPONSIBLE CHOICE

Durable design for permanent outdoor installations, backed by a 5-year warranty, and meet rigorous environmental standards. Their compact, lightweight design minimizes environmental impact and shipping costs, they are fully repairable, and ship in full cardboard FSC-certified packaging.

Videos





Features

  • Logic family of four sizes and lumen packages (S, M, L, XL)
  • Compact and slim design
  • Extended color temperature control from 2400K - 6500K
  • More than 60 lm/W efficacy
  • Narrow beam-angle using high-power LEDs
  • Optional baffle snoot
  • Externally mounted micro lens diffusers
  • RDM and DMX control
  • Local diagnostics and focusing via magnetic sensor
  • Power and DMX In/Out pre-mounted cables
  • Optional Hybrid In/Out cable solution
  • Fully weatherized housing (IP66, IK08 and C-5 High corrosion rating)
  • 5-year warranty

Specifications

  • Physical Length: 152 mm (5.98 inch.) Width: 201 mm (7.91 inch.) Height: 303 mm (11.93 inch.) Weight: 7.3 kg (16.1 lbs)
    Dynamic Effects Intensity: 0 - 100 % Color temperature control: 2400K - 6500K
    Control and Programming Control systems: DMX, RDM User interface: Magnetic sensor for local diagnostics and focusing Stand-alone control: Up to 20 scenes with individual fade/hold times Control resolution: 8-bit DMX control of each color Dimmer Resolution: 16-bit DMX control of intensity DMX channels: 3/3 (Standard/Basic) DMX compliance: USITT DMX512/1990 RDM compliance: ANSI/ESTA E1.20 DMX/RDM Transceiver: Galvanic-isolated RS-485 Firmware update: Serial upload via DMX link
    Optics Light source: 5 x 2400K, 5 x 4000K, 6 x 6500 K white color LEDs Minimum LED lifetime: 100 000 hours (to > 70% luminous output)* LED manufacturer: Cree Binning: Tight color and flux binning
    *Figure obtained under manufacturer's test conditions at Ta = 25° C.

    Beam Angle Options Native beam angle: 7° Narrow micro lens: 9° Medium micro lens: 15° Wide micro lens: 30° Very Wide micro lens: 50° Asymmetric micro lens: 8° x 60°
    Photometric Data CRI (Color Rendering Index) : > 70 CCT: 2400K - 6500K (default 4000K)
    LUMINOUS OUTPUT*: 2400K: 2000 lm 4000K: 4600 lm 6500K: 3600 lm
    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25 °C ambient.
    Construction Housing: Cast Aluminum Color: Traffic grey RAL 7042 - other colors available on request Surface treatment: Anodized and electrostatic powder-coated Protection rating: IP66 Effective Projected Area (EPA): 0.056 m² / 0.072 m² Impact resistance: IK08 Corrosion resistance: C5 High (ISO 12944-6) Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6), 0,7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)
  • Installation Mounting: Adjustable bracket Orientation: Any Minimum distance to illuminated surfaces: 0.1 m (0.3 ft.)
    Connections Power connection: 2 m (6.5 ft.) cable tail open ended Power input cable type, EU models: H07RN-F 3G 1.0 mm², 450/750V, VDE Power input cable type, US models: PVC SJTW 3 x 1.31 mm² (16AWG) 105° C 300 V VW-1 Data connection: 2 m (6.5 ft.) open ended 6-conductor combined input + output cable tail
    Hybrid power/data cables (in & thru) 8-pin custom connectors available on request
    Electrical AC power: 100 - 240 / 277 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Typical half-cycle RMS inrush current: 12 A Surge protection: 4 KV Max earth leakage: 0.5 mA Power factor: 0.99 @110 V / 120 V, 0.94 @208 V / 230V, 0.90 @277 V Max current draw: 0.75 A @100 V, 0.62 A @120 V, 0.33 A @230 V, 0.27 A @ 277 V
    Power Consumption Maximum: 75 W (reduced mode 60W)* Idle: 2.5 W*
    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Idle: all LEDs at zero intensity
    Thermal Cooling: Convection Total heat dissipation (calculated, +/- 10%): 256 BTU/hr Maximum ambient temperature: 45° C (113° F)* Minimum ambient temperature: -30° C (-22° F)** *Above this temperature, the fixture regulates output to protect from overheating.
    **Power must be maintained below -20° C (-4° F)
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 63 lm/W LWR*: 603 lm/kg (273 lm/lb)* Packaging: FSC certified cardboard inlay and outer box
    Approvals Global CB Certification/IECEE: IEC 60598-2-5 (IEC 60598-1) EU safety: EN 60598-2-5 (EN 60598-1), EN 62471, EN 62493 US safety: ANSI/UL 1598 US EMC: EN 55015, EN 55032, EN55035, EN 61547, EN 61000-3-2, EN 61000-3-3 Canadian safety: CSA C22.2 No. 250.0 Australia/NZ: RCM United Kingdom: UKCA India: BIS IS 10322(Part5/section5) - Pending
    Ordering Information - Fixtures Exterior Wash Pro M CTC, US, grey: P/N MAR-90590014 Exterior Wash Pro M CTC, EU, grey: P/N MAR-90590010
    Ordering Information - Accessories Micro Lens Pro M - Narrow: P/N MAR-90590031 Micro Lens Pro M - Medium: P/N MAR-90590032 Micro Lens Pro M - Wide: P/N MAR-90590033 Micro Lens Pro M - Very Wide: P/N MAR-90590034 Micro Lens Pro M - Asymmetric: P/N MAR-90590035 Exterior Wash Pro Multitool: P/N MAR-90590025 Hybrid PD cable tail In/Out 0.5 m, black: P/N MAR-91700020 Attachment plate for safety wire: P/N MAR-90590050 Baffle Snoot Pro M CTC: P/N MAR-90590022

Downloads

  Version Language Size Uploaded
Specifications
file type icon Exterior Wash Pro M CTC Spec Sheet
en version C, updated: Dec 2023
en  2.06 MB Dec 2023
file type icon Exterior Wash Pro System Diagram
en version A, updated: Dec 2023
en  914 KB Dec 2023
Manuals
file type icon Exterior Wash Pro - Safety and Installation manual
en version A, updated: Jan 2024
en  1.51 MB Jan 2024
Photometrics
file type icon Exterior Wash Pro M CTC Photometrics
en version A, updated: Nov 2023
en  9.18 MB Nov 2023
Illustrations
file type icon Exterior Wash Pro M - 2D dimensions (PDF)
en version A, updated: Nov 2023
en  646 KB Nov 2023
file type icon Exterior Wash Pro M - 2D dimensions (DWG)
en version A, updated: Nov 2023
en  2.95 MB Nov 2023
Symbols
file type icon Vectorworks Symbols
en version 3.8, updated: Dec 2023
3.8  en  371 MB Dec 2023
file type icon AutoCAD 3D Symbols
en version 2.1, updated: Dec 2023
2.1  en  14.1 MB Dec 2023
file type icon AutoCAD 2D Symbols
en version 2.1, updated: Dec 2023
2.1  en  3.7 MB Dec 2023
CAD Drawings
file type icon Exterior Wash Pro M - 3DS
en version A, updated: Jan 2024
en  8.97 MB Jan 2024
file type icon Exterior Wash Pro M - 3D DWG
en version A, updated: Jan 2024
en  7.66 MB Jan 2024
Compliances
file type icon Product Verification and Reliability Report - Exterior Wash Pro Family
en version A, updated: Dec 2023
en  461 KB Dec 2023
