JEM K1 Haze Fluid

PREMIUM HAZE FLUID

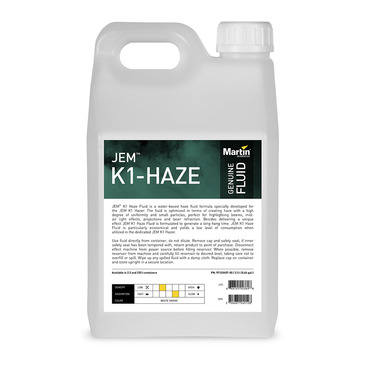

JEM K1 Haze Fluid
Larger Images

JEM™ K1 Haze Fluid is a water-based haze fluid formula specially developed for the JEM K1 Hazer. The fluid is optimized in terms of creating haze with a high degree of uniformity and small particles, perfect for highlighting beams, mid-air light effects, projections and laser refraction. Besides delivering a unique effect, JEM K1 Haze Fluid is formulated to generate a long hang time. JEM K1 Haze Fluid is particularly economical and yields a low level of consumption when utilized in the dedicated JEM K1 Hazer.

Available in 2.5 and 220 l containers.

  • MARTIN HERITAGE

    For 30 years, the Martin brand has been the leading choice of professional lighting designers, rental and production houses, and installers across the global architectural, commercial, and entertainment lighting markets. The JEM series, a founding family of products by Martin, is bringing its industry-leading excellence in atmospheric effects to new audiences by manufacturing premium products with a die-hard dedication to quality assurance and our customers.

  • PREMIUM EFFECTS FLUIDS BY MARTIN

    Martin fluids are produced at our state-of-the-art, semi-automated fluid production facility in the United Kingdom. A virtually sterile environment is our guarantee of a pure and precise product that delivers the same effect over and over again. This means that Martin fluid never comes in contact with the environment, or humans, thereby ensuring a 100% bacteria free and sterile fluid. Our production facility is ISO 9001 accredited, an internationally recognized standard of quality in manufacturing standards, documentation and administrative procedures ensuring superior quality and safety of the materials being used in our fluids. Nowhere else in the industry will you find the same attention to detail, safety and environmental consciousness. Martin fluids are also widely available throughout the world ensuring your show will go on.

  • FLUID THAT WE STAND BY

    If you think all haze fluids are the same, think again. JEM Haze Fluids have been crafted to deliver exceptional results including our benchmark density, dissipation, and pure white colors. Our manufacturing process removes all mineral content from the fluid ensuring little residue is left behind on your prized equipment and performance surfaces. We also use the highest-grade active ingredients, and microprocessor-controlled heat exchangers to ensure that haze is produced safely for you and your audience.

  • GALLONS VS. LITERS

    Why do we use liters instead of gallons? Because it’s the European way and by selling our fluid in liter containers we can offer 20% more fluid than a standard US gallon. We don’t raise our price because of this, so you are getting that extra 20% gratis. You’re welcome! We offer our fluid in various size containers, best suited for your applications, 2.5 l and even the large 220 l barrels. Pick the size that’s right for your show and your budget.

featured content

MARTIN HERITAGE

For 30 years, the Martin brand has been the leading choice of professional lighting designers, rental and production houses, and installers across the global architectural, commercial, and entertainment lighting markets. The JEM series, a founding family of products by Martin, is bringing its industry-leading excellence in atmospheric effects to new audiences by manufacturing premium products with a die-hard dedication to quality assurance and our customers.

featured content

PREMIUM EFFECTS FLUIDS BY MARTIN

Martin fluids are produced at our state-of-the-art, semi-automated fluid production facility in the United Kingdom. A virtually sterile environment is our guarantee of a pure and precise product that delivers the same effect over and over again. This means that Martin fluid never comes in contact with the environment, or humans, thereby ensuring a 100% bacteria free and sterile fluid. Our production facility is ISO 9001 accredited, an internationally recognized standard of quality in manufacturing standards, documentation and administrative procedures ensuring superior quality and safety of the materials being used in our fluids. Nowhere else in the industry will you find the same attention to detail, safety and environmental consciousness. Martin fluids are also widely available throughout the world ensuring your show will go on.

featured content

FLUID THAT WE STAND BY

If you think all haze fluids are the same, think again. JEM Haze Fluids have been crafted to deliver exceptional results including our benchmark density, dissipation, and pure white colors. Our manufacturing process removes all mineral content from the fluid ensuring little residue is left behind on your prized equipment and performance surfaces. We also use the highest-grade active ingredients, and microprocessor-controlled heat exchangers to ensure that haze is produced safely for you and your audience.

featured content

GALLONS VS. LITERS

Why do we use liters instead of gallons? Because it’s the European way and by selling our fluid in liter containers we can offer 20% more fluid than a standard US gallon. We don’t raise our price because of this, so you are getting that extra 20% gratis. You’re welcome! We offer our fluid in various size containers, best suited for your applications, 2.5 l and even the large 220 l barrels. Pick the size that’s right for your show and your budget.

Features

  • High degree of particle uniformity
  • Water-based fluid formula leaves little residue
  • Produced with ultra-pure, de-ionized water
  • White smoke color
  • For use in the JEM K1 Hazer

Specifications

  • Physical JEM K1 Haze Fluid, 2.5 l:

    Bottle: P/N 97120407-00
    Case: P/N 97120407
    Bottle dimensions, 2.5 l (L x W x H): 140 x 110 x 216 mm (5.5 x 4.3 x 8.5 in.)
    Bottle weight: 2.6 kg (5.8 lb.)
    Pieces per case: 4
    Case dimensions (L x W x H): 280 x 220 x 250 mm (11 x 8.7 x 9.8 in.)
    Weight of case: 12 kg (27 lb.)
    Cases per pallet: 48
    Pallet dimensions (L x W x H): 1200 x 800 x 1200 mm (47.3 x 31.5 x 47.3 in.)
    Weight of pallet quantity: 589 kg (1299 lb.)

    JEM K1 Haze Fluid, 220 l:

    P/N 97120412
    Container dimensions, 220 l (L x W x H): 600 x 600 x 900 mm (23.7 x 23.7 x 35.5 in.)
    Weight of container: 230 kg (508 lb.)
    No outer packaging
    Containers par pallet: 2
    Pallet dimensions (L x W x H): 1200 x 800 x 1100 mm (47.3 x 31.5 x 47.3 in.)
    Weight of pallet quantity: 475 kg (1048 lb.)

    Thermal Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum operating temperature (Ta min): 5° C (41° F)
    Storage Storage position: Upright only Ambient temperature: 10 - 30° C (50 - 86° F) Shelf life maximum, sealed: 5-Year Shelf life, opened: 2-Year reduction once opened from maximum See Safety Data Sheets (SDS) for comprehensive safety and storage information.
    Ordering Information JEM K1 Haze Fluid, 2.5 L: P/N 97120407-00* JEM K1 Haze Fluid, 4x 2.5 L: P/N 97120407 JEM K1 Haze Fluid, 220 L: P/N 97120412**

    *Minimum order quantity 4-pieces; use P/N for 4x case
    **Made to order, 4-8 week lead-time

Downloads

  Version Language Size Uploaded
Compliances
file type icon SAFETY DATA SHEET, MARTIN EFFECT FLUIDS
au version B, updated: Oct 2022
au  294 KB Oct 2022
file type icon SIKKERHEDSDATABLAD, MARTIN EFFEKT VÆSKER
da version M, updated: Oct 2022
da  297 KB Oct 2022
file type icon SICHERHEITSDATENBLATT, MARTIN‐EFFEKTFLUIDE
de version M, updated: Oct 2022
de  306 KB Oct 2022
file type icon FICHA DE SEGURIDAD LÍQUIDOS PARA EFECTOS DE MARTIN
es version M, updated: Oct 2022
es  397 KB Oct 2022
file type icon FICHE DE DONNÉES DE SÉCURITÉ, LIQUIDES A EFFET MARTIN
fr version M, updated: Oct 2022
fr  299 KB Oct 2022
file type icon SCHEDA DI DATI DI SICUREZZA, Fluidi per effetti Martin
it version M, updated: Oct 2022
it  295 KB Oct 2022
file type icon VEILIGHEIDSINFORMATIEBLAD (VIB) MARTIN‐EFFECTVLOEISTOFFEN
nl version M, updated: Oct 2022
nl  302 KB Oct 2022
file type icon Ficha de Dados de Segurança, MARTIN FLUIDOS PARA EFEITOS
pt version M, updated: Oct 2022
pt  296 KB Oct 2022
file type icon SAFETY DATA SHEET, MARTIN EFFECT FLUIDS
en version M, updated: Oct 2022
en  290 KB Oct 2022
file type icon SIKKERHETSDATABLAD, MARTIN EFFEKTVÆSKER
no version N, updated: Oct 2022
no  301 KB Oct 2022
file type icon KARTA CHARAKTERYSTYKI
pl version A, updated: Feb 2023
pl  324 KB Feb 2023
Service Notes
Particle Size, Fluid Density and Refractive Index Values
en version B, updated: Jun 2018
B   en    Jun 2018
file type icon Effect Fluids Cross References
en version B, updated: Oct 2020
en  92.3 KB Oct 2020
Martin Effect Fluid Guidelines
en version B, updated: Jun 2018
B   en    Jun 2018
Martin Atmospheric Effect Fluid Matrix
en version C, updated: Jun 2018
C   en    Jun 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
