MAC Aura XIP

WASH LIGHT WITH SMART OUTDOOR PROTECTION AND AURA FILAMENTS

MAC Aura XIP

MAC Aura XIP is a premium moving head wash light with a radical aura filament effect and full pixel control with video mapping capabilities onto the beam, aura, or both. It’s Martin's latest addition to the MAC Aura family of workhorse wash lights and the first fixture in its class to be rated for outdoor use, with close to zero compromises in weight, size, and aesthetics due to Martin’s smart outdoor-capable design. It raises the bar for optical quality, featuring an even wash field with soft edge, minimal stray light, and high intensity mid-air beams with improved light engine control.

Perfect for a wide range of concert and touring productions, MAC Aura XIP is equipped with a smart, outdoor design for festivals and events, while still being quiet and lightweight enough for theater, television, corporate events and more.

While MAC Aura XIP offers lighting designers a range of possibilities with its aura filament effect, narrower beam and better wash quality with improved light engine control; rental customers will appreciate a workhorse that is lighter and more versatile with optical improvements and a sealed design, allowing the product to be used virtually anywhere and require less maintenance.

View this page in Spanish

  • OUTDOOR CAPABLE WITH ZERO COMPROMISE TO INDOOR USE

    With innovative smart outdoor-proofing technology, MAC Aura XIP is fully waterproof for weather conditions such as rain, snow, sand or ice with close to zero impact on the fixture’s size, weight, output, noise and aesthetics. This makes it a truly versatile workhorse that can avoid “indoor-only” and “outdoor-only” labels.

  • CLEAN AND EVEN WASH FIELD

    The MAC Aura XIP has the cleanest wash field in its class, emitting rich saturated colors with RGBW color mixing to deliver very bright and vibrant colors, soft pastels, and white tones. It has an extremely even wash field with zero hotspot and a soft edge to create a better stage wash.

  • RADICAL NEW AURA FILAMENT EFFECT

    12x RGBW filaments deliver a brighter aura backlight effect, with the possibility to show iconic aura filaments that can also be individually controlled.

  • BEAM PIXEL CONTROL

    Featuring pixel control with video mapping capabilities onto beam, aura, or both with easy setup mapping and addressing via a Martin P3 controller, the MAC Aura XIP promises new and exciting eye candy looks that create intriguing stage effects.

  • WORKHORSE VERSATILITY

    The MAC Aura XIP is lightweight, compact and silent enough for the most demanding indoor applications such as theater, television and corporate events. It also integrates a robust and waterproof design for festivals, concerts and other outdoor events.

  • OPTICALLY ROBUST

    The MAC Aura XIP features remarkable optical upgrades such as a narrower zoom creating a higher intensity beam and less stray light. It has an optional high CRI / TM-30 / TLCI mode, LED frequency control for flicker-free projection in broadcasting and green/magenta shift control over white point improving skin tone optical performance.

  • EASIER HANDLING

    The MAC Aura XIP is built to be a workhorse with handles on the head and base and Omega bracket attachments for easier handling and rigging. Its sealed design requires less maintenance (as less dust and pollution can enter the product) than IP20 alternatives.

featured content

OUTDOOR CAPABLE WITH ZERO COMPROMISE TO INDOOR USE

With innovative smart outdoor-proofing technology, MAC Aura XIP is fully waterproof for weather conditions such as rain, snow, sand or ice with close to zero impact on the fixture’s size, weight, output, noise and aesthetics. This makes it a truly versatile workhorse that can avoid “indoor-only” and “outdoor-only” labels.

featured content

CLEAN AND EVEN WASH FIELD

The MAC Aura XIP has the cleanest wash field in its class, emitting rich saturated colors with RGBW color mixing to deliver very bright and vibrant colors, soft pastels, and white tones. It has an extremely even wash field with zero hotspot and a soft edge to create a better stage wash.

featured content

RADICAL NEW AURA FILAMENT EFFECT

12x RGBW filaments deliver a brighter aura backlight effect, with the possibility to show iconic aura filaments that can also be individually controlled.

featured content

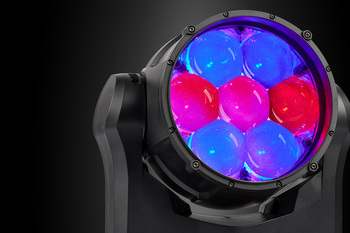

BEAM PIXEL CONTROL

Featuring pixel control with video mapping capabilities onto beam, aura, or both with easy setup mapping and addressing via a Martin P3 controller, the MAC Aura XIP promises new and exciting eye candy looks that create intriguing stage effects.

featured content

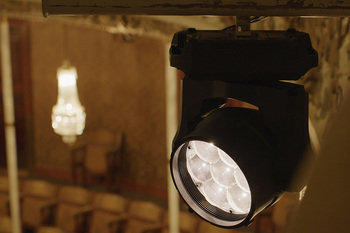

WORKHORSE VERSATILITY

The MAC Aura XIP is lightweight, compact and silent enough for the most demanding indoor applications such as theater, television and corporate events. It also integrates a robust and waterproof design for festivals, concerts and other outdoor events.

featured content

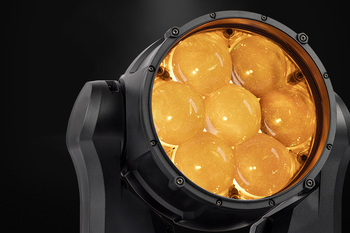

OPTICALLY ROBUST

The MAC Aura XIP features remarkable optical upgrades such as a narrower zoom creating a higher intensity beam and less stray light. It has an optional high CRI / TM-30 / TLCI mode, LED frequency control for flicker-free projection in broadcasting and green/magenta shift control over white point improving skin tone optical performance.

featured content

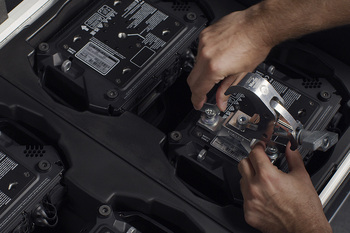

EASIER HANDLING

The MAC Aura XIP is built to be a workhorse with handles on the head and base and Omega bracket attachments for easier handling and rigging. Its sealed design requires less maintenance (as less dust and pollution can enter the product) than IP20 alternatives.

Videos





Features

LIGHT SOURCE

  • 6,000 lumens RGBW light output
  • High narrow intensity: 360,000 cd
  • Pixelated Beam: 7x 60W RGBW LEDs
  • Filament Aura: 12x 4W RGBW LEDs
  • Fully calibrated using Martin's Full Gamut Color Calibration
  • Flicker-Free operation – LED driver frequency suitable for all kinds of camera applications
  • LED Driver frequency adjustable for demanding applications

OPTICS

  • Tight beam and beautiful wash field
  • 6.3 – 50.4˚ zoom – Precise, silent and fast zoom
  • Even soft edge wash field with zero hotspot
  • High intensity mid-air beams
  • Minimal stray light
  • Minor color temperature shift from center to edge

SOFTLENS ACCESSORY INCLUDED

  • Creates an even softer edge wash field
  • Minimal impact to Aura filament effects
  • Attaches to front of fixture
  • Can remain attached to fixture inside flightcase SiP

COLOR PALETTE

  • RGBW color mixing with very bright and vibrant saturated colors, as well as soft pastels and white tones
  • Calibrated and Extended Color Modes
  • Calibrated CTC control: 1,000 – 12,850 K
  • Green Magenta Shift (Tint) Control
  • Tungsten Emulation Option
  • Virtual Color Wheel

DYNAMIC EFFECTS

  • More than 200 built-in FX macros with control of foreground color, background color, speed and direction
  • P3 video mapping of fixture Beam pixels and/or Aura filaments
  • P3 Mix allowing crossfade between video looks and DMX looks
  • High-speed pan, tilt and zoom

COOLING AND NOISE

  • Ultra-quiet cooling system
  • Theater / Broadcast mode at just 25.2 dB(A)
  • Low noise pan/tilt and effects operation

CONSTRUCTION

  • Smart outdoor rating for any weather condition
  • Weight 8.95 kg (19.73 lbs.)
  • Dimensions: 338 x 380 x 226 mm

CONTROL

  • Battery-powered control panel on the base
  • DMX in & thru
  • Ethernet in & thru, supporting Art-Net, sACN & Martin P3
  • Fail-safe bypass on Ethernet ports
  • RDM over DMX and RDM over Art-Net

Specifications

  • Physical

    Width (across yoke): 338 mm (13.31 in.)
    Width (base): 306 mm (12.05 in.)
    Height (head straight up): 380 mm (14.96 in.)
    Height (maximum): 421 mm (16.57 in.)
    Depth (head): 205 mm (8.07 in.)
    Depth (base): 226 mm (8.90 in.)
    Minimum center-to-center distance in side-by-side installation: 350 mm (13.78 in.)
    Weight: 8.95 kg (19.73 lbs.)

    Dynamic Effects

    Beam Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackout
    Beam Dimming options: Choice of four dimming curves
    Beam Color Mixing: RGB, independently variable 0 - 100%
    Beam Color Temperature Control: Variable 1,000 – 12,850 K
    Beam Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
    Beam Virtual Color wheel: 48 color presets, continuous rotation & random color
    Zoom: Motorized with 1:6 zoom ratio
    Pan: Motorized 540°
    Tilt: Motorized 220°
    Beam PixelMapping: Individual RGB control of each of the 7 Beam pixels
    Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
    Aura Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe, instant open and blackout
    Aura Dimming options: Choice of four dimming curves
    Aura Color Mixing: RGB, independently variable 0 - 100%
    Aura Color Temperature Control: Variable 1,000 – 12,850 K
    Aura Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
    Aura Virtual Color wheel: 48 color presets, continuous rotation & random color
    Aura PixelMapping: Individual RGB control of each of the 12 Aura filaments
    Aura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
    Pre-programmed effects: Two ranges of FX on Beam, Aura or Combination; independent or synchronized/combined
    LED Frequency control: Variable LED PWM control

    Control and Programming

    Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
    Protocol Detection: Automatic
    DMX Modes: Compact, Basic, Extended & Ludicrous
    DMX Channels: 20, 36, 57 & 93
    16-bit Controllable Parameters: Beam & Aura Dimming, Beam Color Mixing, Zoom, Pan and Tilt
    Setting and Addressing: Display Menu, RDM, RDM over Art-Net or P3
    Local User Interface: Backlit LCD Display with battery-powered operation
    Fixture identification: User-settable ID number
    DMX Compliance: USITT DMX512-A
    RDM Compliance: ANSI/ESTA E1.20
    Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
    sACN Compliance: ANSI E1.31 - 2016
    Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
    DMX/RDM Transceiver: Galvanic-isolated RS-485
    Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
    Firmware Update: via USB type C memory device, via DMX using Martin Companion or via Ethernet using Martin Companion / P3 System Controller

    Optics

    Front Lens Diameter: 196 mm (7.72 in.)
    Zoom Range: 1:6
    Full Zoom Range at Half Peak (Beam Angle): 6.3° - 35.3°
    Full Zoom Range at Tenth Peak (Field Angle): 8.8° - 50.4°
    Beam Light Source: 7 x 60 W RGBW LED
    Aura Light Source: 12 x 4 W RGBW LED
    Max. Total Beam LED Engine Power: 296.5 W
    Max. Total Aura LED Engine Power: 35.1 W
    Minimum LED lifetime: > 50.000 hours (to > 70% luminous output)*
    *Figure obtained under manufacturer's test conditions

    Photometric Data

    Light Engine Luminous Output: 11,000 lumens
    Fixture Luminous Output Wide: 6,000 lumens
    Fixture Luminous Output Narrow: 4,500 lumens
    Peak Luminous Intensity Narrow: 360,000 cd
    CCT: Variable 1,000 K – 12,850 K (+/- 200 K)
    CRI (Color Rendering Index): ≥ 71
    CQS (Color Quality Scale): ≥ 80
    TM-30 Rf (IES TM-30-15 Fidelity Index): ≥ 78
    TM-30 Rg (IES TM-30-15 Gamut Index): ≥ 117
    TLCI (Television Lighting Consistency Index): ≥ 57
    Beam LED Refresh Rate: Variable 2,400 Hz - 3,000 Hz and 24,000 Hz mode
    Aura LED Refresh Rate: 1,200 Hz
    Binning: Tight color and flux binning
    Calibration: Full Gamut Color Calibration of Beam and Aura
    Color Modes: Extended Color Mode and Calibrated Color Mode
    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient

    Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP54
    Installation Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets and single M12 threaded hole Location: Indoor or Temporary Outdoor use Orientation: Any, except with display facing upwards in outdoor application Minimum distance to combustible materials: 0.2 m (7.87 in.) Minimum distance to illuminated surfaces: 1.0 m (39.37 in.)
    Connections Firmware from flash memory: USB 2.0 type C port AC mains power in/thru: Neutrik powerCON TRUE1 TOP DMX and RDM data in/thru: Neutrik 5-pin locking XLR TOP Ethernet (Art-Net, sACN and P3) in/thru, including fail-safe bypass: Neutrik etherCON TOP
  • Electrical

    AC power: 100-240 V AC nominal, 50/60 Hz
    Power supply unit: Auto-ranging electronic switch mode
    Typical half-cycle RMS inrush current at 230 V, 50 Hz: 7.0 A
    Typical earth-leakage current: 0.43 mA
    Power Factor: 0.99 @ 100 V / 120 V , 0.97 @ 208 V / 230 V / 240 V
    Max current draw: 3.9 A @ 100 V / 120 V , 1.8 A @ 208 V / 230 V / 240 V
    Typical current draw: 2.9 A @ 100 V , 2.4 A @ 120 V , 1.4 A @ 208 V , 1.3 A @ 230 V , 1.2 A @ 240 V *
    Power Consumption
    Maximum: 340 W
    Typical: 292 W *
    Idle: 47 W *
    Hibernation: 32 W *
    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
    Typical: full output white, no effects moving, regulated fan speed.
    Idle: no output, no effects moving, regulated fan speed.
    Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.

    Thermal Cooling: Forced air (temperature regulated, low noise, user-definable levels) Total heat dissipation (calculated, +/- 10%): 972 BTU/hr. Maximum surface temperature, steady state, at 40° C ambient: 60° C (140° F) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 5° C (41° F)
    Acoustic Data Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 34.4 dB(A) Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 25.2 dB(A)
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 21.3 lm/W LWR*: 670 lm/kg (304 lm/lbs.)

    LWR = Lumen-to-Weight Ratio

    Approvals Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1) EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015; EN 55032; EN 55035; EN 61547; EN 61000-3-3 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class B, ICES-005 Class B Australia/NZ: RCM United Kingdom: UKCA
    Included Items

    Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
    SoftLens
    Multi-Language Safety and Installation Manual

    Related Items Martin Companion Cable (for firmware update over DMX): P/N 91616091 Martin Companion Software (for firmware update over DMX/Ethernet): Free download from www.martin.com
    Accessories

    Transport and Storage
    Flightcase for 6 x MAC Aura XIP: P/N MAR-91515057
    Additional dual SiP Foam Flightcase Insert for MAC Aura XIP: P/N MAR-91611861HU

    Consumables
    CR123A 3-volt lithium battery: P/N 05801011

    Spare Parts
    Additional MAC Aura XIP SoftLens: P/N 5136656-00

    Power Input Cables
    Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173

    Power Linking Cables
    Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

    Power Connectors
    Cable Connector, Neutrik powerCON TRUE1 TOP Female: P/N 91611789HU
    Cable Connector, Neutrik PowerCON TRUE1 TOP Male: P/N 91611788HU

    Installation Hardware
    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Half-coupler Clamp: P/N 91602005
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

    Ordering Information MAC Aura XIP in EPS (in cardboard box, polystyrene packaging): P/N MAR-90250100HU MAC Aura XIP in dual SiP (in cardboard box with dual SiP foam flight case insert): P/N MAR-90250105HU (to be ordered in multiples of 2) MAC Aura XIP white in EPS (in cardboard box, polystyrene packaging): P/N MAR-90250110HU

Downloads

  Version Language Size Uploaded
Specifications
file type icon MAC Aura XIP - Acoustic Test Report
en version A, updated: Oct 2022
en  1.37 MB Oct 2022
file type icon MAC Aura XIP - Flightcase Spec Sheet
en version A, updated: Sep 2022
en  11.1 MB Sep 2022
file type icon MAC Aura XIP - SiP Spec Sheet
en version A, updated: Sep 2022
en  3.66 MB Sep 2022
file type icon MAC Aura XIP - Spec Sheet
en version C, updated: Nov 2023
en  1.81 MB Nov 2023
Manuals
file type icon MAC Aura XIP - User, Safety and Installation Manual
en version B, updated: Nov 2022
en  5.98 MB Nov 2022
file type icon MAC Aura XIP - Guide de l’utilisateur avec Guide d’installation et de sécurité inclus
fr version B, updated: Nov 2022
fr  4.33 MB Nov 2022
file type icon MAC Aura XIP - Bedienungsanleitung mit Installations- und Sicherheitshinweisen
de version B, updated: Nov 2022
de  4.93 MB Nov 2022
Brochures
file type icon Pro Install Overview Brochure
en updated: Oct 2023
  en  23.1 MB Oct 2023
Photometrics
file type icon MAC Aura XIP - Photometric Files
en version A, updated: Oct 2022
en  6.65 MB Oct 2022
Illustrations
file type icon MAC Aura XIP - 2D Dimensions (PDF)
en version A, updated: Oct 2022
en  828 KB Oct 2022
file type icon MAC Aura XIP - 2D Dimensions (DWG)
en version A, updated: Oct 2022
en  7.82 MB Oct 2022
Symbols
file type icon AutoCAD 2D Symbols
en version 2.1, updated: Dec 2023
2.1  en  3.7 MB Dec 2023
file type icon AutoCAD 3D Symbols
en version 2.1, updated: Dec 2023
2.1  en  14.1 MB Dec 2023
file type icon Vectorworks Symbols
en version 3.8, updated: Dec 2023
3.8  en  371 MB Dec 2023
file type icon Martin Professional GDTF Library
en version A, updated: Oct 2023
en  203 Bytes Oct 2023
CAD Drawings
file type icon MAC Aura XIP - 3D DWG
en version A, updated: Oct 2022
en  718 KB Oct 2022
file type icon MAC Aura XIP - 3DS
en version A, updated: Oct 2022
en  1.15 MB Oct 2022
Bim Objects
file type icon MAC Aura XIP - BIM Object
en version A, updated: Nov 2023
en  Nov 2023
Compliances
file type icon MAC Aura XIP - EU Test Verification of Conformity
en version B, updated: Dec 2022
en  167 KB Dec 2022
file type icon MAC Aura XIP - Product Verification and Reliability Report
en version A, updated: Dec 2022
en  703 KB Dec 2022
file type icon MAC Aura XIP - CB Test Certificate
en version A, updated: Dec 2022
en  105 KB Dec 2022
file type icon Safety Document (SDS) for Batteries
en version A, updated: Nov 2023
en  117 KB Nov 2023
file type icon MAC Aura XIP - ETL Listing Verification
en version A, updated: Oct 2022
en  111 KB Oct 2022
file type icon MAC Aura XIP - UKCA Declaration of Conformity
en version A, updated: Oct 2022
en  298 KB Oct 2022
file type icon MAC Aura XIP - Déclaration de Conformité Européenne
fr version A, updated: Oct 2022
fr  277 KB Oct 2022
file type icon MAC Aura XIP - EU Declaration of Conformity
en version A, updated: Oct 2022
en  300 KB Oct 2022
file type icon MAC Aura XIP - FCC Declaration of Conformity
en version A, updated: Oct 2022
en  413 KB Oct 2022
Firmware
platform icon MAC Aura XIP - Firmware
version 1.1.1, updated: Jan 2024
1.1.1     Jan 2024

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

News

Support/FAQs

HARMAN Professional Solutions:

MAC Aura XIP

WASH LIGHT WITH SMART OUTDOOR PROTECTION AND AURA FILAMENTS


PLASA Winner
