MAC Ultra Performance

1150 W HIGH OUTPUT LED MOVING HEAD PROFILE WITH FRAMING

MAC Ultra Performance

The MAC Ultra Performance has raised the bar for extremely bright moving lights and features benchmark output across the zoom range, a true next generation framing system, higher definition optics and astoundingly low noise levels.

Built to support the biggest live events, this powerful workhorse is based on our all new 1150 W, 5800 K proprietary LED light engine and the fixture pushes an incredible 46,500 lumens in projection. The 50,000+ hour light engine also provides high resolution dimming, strobing and Martin’s unique Animotion™ effect.

A 1:7 zoom-range and precision focus-control is provided from the refined optical system. The extensive feature package includes uniform color mixing, variable CTO, additional color and spectral correction filters, Martin’s innovative Extended Framing system, two layers of rotating gobos, full function animation wheel, iris, frost and prism effects, and truly responsive and accurate pan and tilt. And, these features are all packed into a compact, sturdy and legendary Martin design.

The MAC Ultra Performance is perfect for a wide range of concert and touring productions but is equally applicable for noise-sensitive broadcast and theater stage lighting applications. Simply put, when it comes to workhorse fixtures that push the boundaries of output and performance execution, the MAC Ultra Performance stands boldly in a class all its own.

  • INCREDIBLE LUMEN OUTPUT

    The MAC Ultra Performance produces an incredible 46,500 projection lumens. With our tailor-made light engine and optics designed as a single unified system, MAC Ultra excels on keeping output across the zoom range. With high luminous flux and intensity at narrow zoom angles, MAC Ultra delivers the punch needed for the longest throws and highest trims - no stage or venue is too big for MAC Ultra Performance.

  • SEEING IS BELIEVING

    Our proprietary LED light engine is the foundation for MAC Ultra visual quality, built around the very latest technology to meet ever-stretched performance requirements. Our engine not only provides impressive metrics, but most importantly is more pleasing to the human eye. With higher red content and 5800 K color temperature for better daylight balance, it delivers richer, more vivid colors and more natural skin-tones.

  • VISUAL EXCELLENCE FOR LIFE

    MAC Ultra was designed to not only deliver best-in-class output and quality in its first hour of use, but throughout its product life. The minimum LED lifetime exceeds 50,000 hours and the engine delivers over 90 percent of its initial output after 20,000 hours of full output. In real-world applications, this equals rock-solid performance and stability. Our engineering team has achieved these results through a sophisticated cooling system and by never driving the 1680 W LED package at more than 70 percent of its maximum rating. For maximum peace of mind, Martin provides a 5 years warranty on light engine.

  • PRECISION OPTICS

    With remarkably higher projection resolution and definition, incredible sharpness across the field and enhanced contrast, the MAC Ultra Performance features our most impressive projection system ever. The 1:7 zoom system with accurate focus capability maintains a flat field. Thanks to this optical design, MAC Ultra delivers excellent morphing from one gobo plane to the other and outstanding results when using framing and gobos together.

  • EXTENDED FRAMING SYSTEM

    MAC Ultra Performance truly raises the bar with a next-generation framing system. It offers more flexibility, easy programming, quick response time and enhanced shutter angling. Where existing systems have no tilting of the shutter blades at the very edge of the beam and only obtain their specified tilt range when the blades are fully inserted, the Martin Extended Framing System offers fully specified shutter tilting from the very outside of the beam all the way across to the opposite side. This results in limitless, full curtain functionality and the ability to throw more light onstage. And, the MAC Ultra Performance keeps the four framing blades in just two layers, offering more even focus across all four blades.

  • ULTRA QUIET OPERATION

    The sophisticated MAC Ultra cooling system ensures a precise operating temperature window and sets a new standard for low acoustic levels. It’s not only ideal for a range of concert and touring productions but is equally applicable for noise-sensitive broadcast and theater stage lighting applications.

  • FUNCTIONAL INDUSTRIAL DESIGN

    MAC Ultra features a unique and compact industrial design. Martin’s patented yoke handles provide better ergonomics and safer handling of the light. To benefit stage and set designers, all connectors and the UI are placed on the same side of the unit, leaving the opposite side free from visual distraction. Follow-spot handles are also permanently incorporated, and tool-free replacement of air-inlet filters is easier than ever to access.

featured content

INCREDIBLE LUMEN OUTPUT

The MAC Ultra Performance produces an incredible 46,500 projection lumens. With our tailor-made light engine and optics designed as a single unified system, MAC Ultra excels on keeping output across the zoom range. With high luminous flux and intensity at narrow zoom angles, MAC Ultra delivers the punch needed for the longest throws and highest trims - no stage or venue is too big for MAC Ultra Performance.

featured content

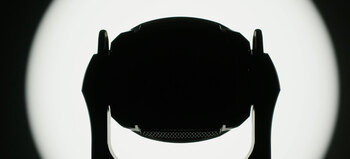

SEEING IS BELIEVING

Our proprietary LED light engine is the foundation for MAC Ultra visual quality, built around the very latest technology to meet ever-stretched performance requirements. Our engine not only provides impressive metrics, but most importantly is more pleasing to the human eye. With higher red content and 5800 K color temperature for better daylight balance, it delivers richer, more vivid colors and more natural skin-tones.

featured content

VISUAL EXCELLENCE FOR LIFE

MAC Ultra was designed to not only deliver best-in-class output and quality in its first hour of use, but throughout its product life. The minimum LED lifetime exceeds 50,000 hours and the engine delivers over 90 percent of its initial output after 20,000 hours of full output. In real-world applications, this equals rock-solid performance and stability. Our engineering team has achieved these results through a sophisticated cooling system and by never driving the 1680 W LED package at more than 70 percent of its maximum rating. For maximum peace of mind, Martin provides a 5 years warranty on light engine.

featured content

PRECISION OPTICS

With remarkably higher projection resolution and definition, incredible sharpness across the field and enhanced contrast, the MAC Ultra Performance features our most impressive projection system ever. The 1:7 zoom system with accurate focus capability maintains a flat field. Thanks to this optical design, MAC Ultra delivers excellent morphing from one gobo plane to the other and outstanding results when using framing and gobos together.

featured content

EXTENDED FRAMING SYSTEM

MAC Ultra Performance truly raises the bar with a next-generation framing system. It offers more flexibility, easy programming, quick response time and enhanced shutter angling. Where existing systems have no tilting of the shutter blades at the very edge of the beam and only obtain their specified tilt range when the blades are fully inserted, the Martin Extended Framing System offers fully specified shutter tilting from the very outside of the beam all the way across to the opposite side. This results in limitless, full curtain functionality and the ability to throw more light onstage. And, the MAC Ultra Performance keeps the four framing blades in just two layers, offering more even focus across all four blades.

featured content

ULTRA QUIET OPERATION

The sophisticated MAC Ultra cooling system ensures a precise operating temperature window and sets a new standard for low acoustic levels. It’s not only ideal for a range of concert and touring productions but is equally applicable for noise-sensitive broadcast and theater stage lighting applications.

featured content

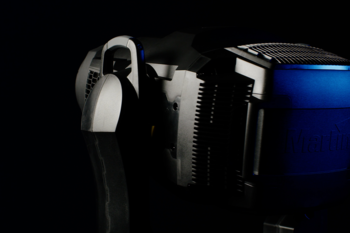

FUNCTIONAL INDUSTRIAL DESIGN

MAC Ultra features a unique and compact industrial design. Martin’s patented yoke handles provide better ergonomics and safer handling of the light. To benefit stage and set designers, all connectors and the UI are placed on the same side of the unit, leaving the opposite side free from visual distraction. Follow-spot handles are also permanently incorporated, and tool-free replacement of air-inlet filters is easier than ever to access.

Videos





Features

LIGHT SOURCE

  • 1150 W proprietary LED light engine
  • 84 x 20 W white LEDs
  • Minimum LED lifetime: >50,000 hours (see specs for further details)

PHOTOMETRIC DATA

  • Light Engine Luminous Output: 90,000 lumens
  • Fixture Luminous Output: 46,500 lumens
  • Peak Luminous Intensity: 3,000,000 cd
  • CCT: 5800 K (+/- 250 K)

OPTICS

  • 160 mm front Lens
  • 1:7 zoom range (8.0° - 54° field angle)
  • High resolution projection system

DYNAMIC EFFECTS

  • 0 - 100% continuous dimming and strobe effects
  • Choice of four dimming curves
  • CMY color mixing
  • Color temperature control (5800 - 2850 K)
  • Color wheel with 6 x interchangeable dichroic filters, including Spectral Enhancement Filter
  • Rotating gobo wheel 1 includes 5 interchangeable gobos + open
  • Rotating gobo wheel 2 includes 5 interchangeable gobos + open
  • Gobo animation wheel, indexing, continuous rotation with variable angle
  • Frost (fade in)
  • 4-facet prism
  • Iris
  • Zoom
  • Focus with auto tracking
  • Extended Framing module with individual +/- 30° across entire beam and +/- 83° rotation
  • Pan: 540°
  • Tilt: 268°
  • P3 videomapping of fixture color and/or intensity (10 segments)
  • Pre-programmed effects: Two ranges of pre-programmed FX

COOLING AND NOISE

  • Low noise cooling system
  • User-selectable output vs. sound level control

CONSTRUCTION

  • Height (head straight up): 864 mm (34.1 in.)
  • Height (maximum): 876 mm (34.5 in.)
  • Weight: 44.0 kg (97.0 lbs.)

CONTROL

  • DMX-512 in/out
  • Ethercon in/out for P3, Art-Net, sACN
  • Built in Ethernet switch with fail-safe bypass

Specifications

  • Physical Weight: 44.0 kg (97.0 lbs.) Minimum center-to-center distance in side-by-side installation: 830 mm (32.7 in.) Length (head): 660 mm (26.0 in.) Length (base): 468 mm (15.5 in.) Width (base): 312 mm (12.3 in.) Width (across yoke): 520 mm (20.5 in.) Height (head straight up): 864 mm (34.1 in.) Height (maximum): 876 mm (34.5 in.)
    Dynamic Effects Pre-programmed effects: Two ranges of FX, independent or synchronized/combined Color mixing: CMY, independently variable 0 - 100% Color wheel: 6 x interchangeable dichroic filters + open (incl. Spectral Enhancement Filter), indexing, continuous rotation, random color Gobo animation: Interchangeable animation wheel, indexing, continuous rotation with variable angle, speed and direction Iris: Variable 0 - 100%, pulse effects Framing: Rotatable framing module, +/- 83°, 4 x individually controllable full curtain blades with full variable angle (+/- 30°) through the entire insertion path from 0 - 100% Prism: 4-facet, indexing and continuous rotation Frost: Variable 0 - 100%, second (heavy) frost available as optional replacement for Prism Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout Color temperature control: Variable 5800 - 2850 K Dimming options: Choice of four dimming curves Zoom: Motorized Pan: 540°, coarse & fine control and speed Tilt: 268°, coarse & fine control and speed P3: Videomapping of fixture color and/or intensity with variable crossfade between DMX control and video control Focus: Motorized, range varies with zoom angle, from approx. 4.5 m (14.8 ft.) to infinity Rotating gobo wheel 1: 5 x interchangeable gobos + open, indexing, continuous rotation and shake Rotating gobo wheel 2: 5 x interchangeable gobos + open, indexing, continuous rotation and shake Gobo Color Temperature Correction: Automatic
    Control and Programming DMX channels: Standard 48, Extended 58 DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 DMX/RDM Transceiver: Galvanic-isolated RS-485 Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3 Protocol detection: Automatic Setting and addressing: Display Menu, RDM, RDM over Art-Net or P3 DMX Modes: Two 16-bit Controllable Parameters: Dimming, Color Mixing + CTC, Gobo Rotation/Indexing, Framing, Iris, Zoom, Focus, Pan and Tilt Fixture Identification: User-settable ID number Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net sACN Compliance: ANSI E1.31 - 2016 Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer Ethernet Transceiver: 10/100Mbit (with fail-safe bypass) Firmware update: USB memory device, via DMX using Martin Companion or via Ethernet using P3 System Controller Local User Interface: Backlit LCD Display with battery-powered operation
    Optics Front lens diameter: 160 mm Zoom range: 8.0° - 54° (1:7 field angle) Light source: 84 x 20 W White LEDs in a custom Martin engine Minimum LED lifetime: >50,000 hours (to >80% luminous output)/ >20,000 hours (to >90% luminous output)* Maximum Total LED Engine Power: 1150 W

    *Figure obtained under manufacturer's test conditions

    Photometric Data

    Light engine luminous output: 90,000 lumens LED refresh rate : 3000 Hz Standard Fixture luminous output: 46,500 lumens CRI (Color Rendering Index): 66 (+/- 3) TM-30 Rf (IES TM-30-15 Fidelity Index): 66TM-30 Rg (IES TM-30-15 Gamut Index): 95 CCT: 5800 K (+/- 250 K) Peak Luminous Intensity: 3,000,000 cd With Spectral Enhancement Filter at 5300 K Fixture luminous output: 23,500 lumensCRI (Color Rendering Index): 83 (+/- 3)With CTO and Cyan at 3200 KFixture luminous output: 12,000 lumens CRI (Color Rendering Index): 90 (+/- 3)
    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

    Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP20
    Gobos Maximum image diameter: 30 mm (1.181 in.) External diameter: 37.5 mm +0 / -0.2 mm (1.476 in. +0 / -0.008 in.) Maximum gobo thickness: 1.1 mm (0.04 in.) Coating: Heavy matted aluminum Material: Borofloat 33
    Installation Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets Location: Dry location only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 0.2 m (8 in.) Minimum distance to illuminated surfaces: 4.75 m (15.6 ft.)
    Connections DMX and RDM data in/out: 5-pin locking XLR AC mains power input.: Neutrik TRUE1 socket, accepts TRUE1 NAC3FX-W (TOP) connector Ethernet (Art-Net, sACN and P3) in/out, including fail-safe bypass: Neutrik etherCON Firmware from flash memory: USB 2.0 port
  • Electrical

    AC power: 200-240 V AC nominal, 50/60 Hz
    Power supply unit: Auto-ranging electronic switch mode
    Typical half-cycle RMS inrush current at 230 V, 50 Hz: 17.0 A
    Power Factor: 0.99 @ 208 V / 230 V / 240 V
    Max current draw: 8.0 A @ 208 , 6.7 A @ 230 V / 240 V
    Typical current draw: 6.8 A @ 208 V , 6.0 A @ 230 V , 5.8 A @ 240 V *
    Power Consumption
    Maximum: 1450 W
    Typical: 1380 W *
    Idle: 100 W *
    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
    Typical: full output white, no effects moving, regulated fan speed.
    Idle: no output, no effects moving, regulated fan speed.

    Thermal Cooling: Forced air (temperature regulated, low noise) Total heat dissipation (calculated, +/- 10%): 4950 BTU/hr. Maximum surface temperature, steady state, at 40° C ambient: 85° C (185° F) Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): 5° C
    Acoustic Data Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 36.5 dB(A) Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 35.1 dB(A)
    Warranty Fixture: 2 years Light Engine: 5 years
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 33 lm/w LWR*: 1,096 lm/kg (479 lm/lb)

    LWR = Lumen-to-Weight Ratio

    Approvals Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1) EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55032; EN 61547; EN 55035; EN 61000-3-2,-11 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class B, ICES-005 Class B Australia/NZ: RCM
    Included Items

    Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
    Safety and Installation Manual
    Heavy-frost/wash filter (prism replacement): P/N MAR-91614060HU

    Related Items Martin Companion Cable (for firmware update over DMX): P/N 91616091 Martin Companion Software (for firmware update over DMX): Free download from www.martin.com
    Accessories

    Optical Accessories
    Heavy-frost/wash filter (prism replacement): P/N MAR-91614060HU
    Heavy-frost/wash filter (light frost replacement): P/N MAR-91614063HU

    Transport and Storage
    Flightcase for 2 x MAC Ultra Performance/Wash without SIP inserts: P/N 91515055

    Consumables
    Air filter, MAC Quantum / MAC Ultra, set of 12: P/N 50400765
    CR123A 3-volt lithium battery: P/N 05801011

    Power Input Cables
    Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797
    Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 5 m (16.4 ft.) P/N 91611786
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 5 m (16.4 ft.) P/N 91610174

    Power Input Connector
    Cable Connector, Neutrik powerCON TRUE1 NAC3FX-W TOP (female): P/N 91611789HU

    Installation Hardware
    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Half-coupler Clamp: P/N 91602005
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

    Ordering Information MAC Ultra Performance, SIP (in cardboard box with SIP foam flight case insert): P/N 90250055HU MAC Ultra Performance, white finish, SIP (in cardboard box with SIP foam flight case insert): P/N 90250060HU
