MAC Ultra Wash

1150 W HIGH OUTPUT LED MOVING HEAD WASH

MAC Ultra Wash

The MAC Ultra Wash is a colossal return to everything that an incredible wash light should be. Pure and simple in concept, it’s a bold, no-nonsense workhorse and the brightest wash we’ve ever developed. Via it’s 1150 W, 5800 K proprietary LED light engine, the MAC Ultra Wash delivers a jaw-dropping 63,500 lumens from a 220 mm front lens and features incredibly fast 1:10 zoom range.

Its 50,000+ hour light engine is the latest in a long line of Martin feats of innovation. No matter what the application, you can reliably count on consistent quality of light and output - show after show for many years to come. The MAC Ultra Wash also includes a powerful feature set, including uniform color mixing, variable CTO, additional color and spectral correction filters, motorized frost for a softer field, high resolution dimming and strobing.

Ideal for touring, concerts, TV shows and performing arts, the MAC Ultra Wash supports the broader production market all the way up to the most demanding stage lighting events. Martin set the standard for managing the ratio of weight, size, and power and the MAC Ultra Wash surges ahead with even superior performance.

When it comes to delivering drop-dead wash light performance and workhorse reliability, nothing comes remotely close. MAC Ultra Wash exceeds the boundaries of design as an undeniable, class-leading fixture that sets a steep bar on wash light innovation.

  • MARTIN’S BRIGHTEST WASH LIGHT

    The MAC Ultra Wash pushes a phenomenal 63,500 lumens of output from its mighty 220 mm front lens. With our tailor-made light engine and optics designed as one unified system, MAC Ultra Wash excels on keeping output across the zoom range, resulting in an ever-bright wash field. With high luminous flux and intensity at narrow zoom angles, MAC Ultra Wash delivers the punch needed for the longest throws and highest trims - no stage or venue is too big for MAC Ultra Wash.

  • SEEING IS BELIEVING

    Our proprietary LED light engine is the foundation for MAC Ultra visual quality, built around the very latest technology to meet ever-stretched performance requirements. Our engine not only provides impressive metrics, but most importantly is more pleasing to the human eye. With higher red content and 5800 K color temperature for better daylight balance, it delivers richer, more vivid colors and more natural skin-tones.

  • VISUAL EXCELLENCE FOR LIFE

    MAC Ultra was designed to not only deliver best-in-class output and quality in its first hour of use, but throughout its product lifetime. The minimum LED lifetime exceeds 50,000 hours and the engine delivers over 90 percent of its initial output after 20,000 hours of full output. In real-world applications, this equals rock-solid performance and stability. Our engineering team has achieved these results through a sophisticated cooling system and by never driving the 1680 W LED package at more than 70 percent of its maximum rating. For maximum peace of mind, Martin provides a 5 years warranty on light engine.

  • ULTRA QUIET OPERATION

    The sophisticated MAC Ultra cooling system always ensures a precise operating temperature window and sets a new standard for low acoustic levels. It’s not only ideal for a range of concert and touring productions but is equally applicable for noise-sensitive broadcast and theater stage lighting applications.

  • FUNCTIONAL INDUSTRIAL DESIGN

    MAC Ultra features a unique and compact industrial design. Martin’s patented yoke handles provide better ergonomics and safer handling of the light. To benefit stage and set designers, all connectors and the UI are placed on the same side of the unit, leaving the opposite side free from visual distraction. Follow-spot handles are also permanently incorporated, and tool-free replacement of air-inlet filters is easier than ever to access.

featured content

MARTIN’S BRIGHTEST WASH LIGHT

The MAC Ultra Wash pushes a phenomenal 63,500 lumens of output from its mighty 220 mm front lens. With our tailor-made light engine and optics designed as one unified system, MAC Ultra Wash excels on keeping output across the zoom range, resulting in an ever-bright wash field. With high luminous flux and intensity at narrow zoom angles, MAC Ultra Wash delivers the punch needed for the longest throws and highest trims - no stage or venue is too big for MAC Ultra Wash.

featured content

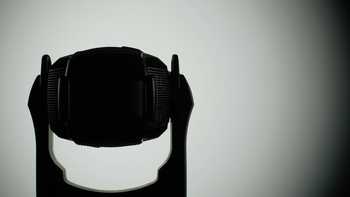

SEEING IS BELIEVING

Our proprietary LED light engine is the foundation for MAC Ultra visual quality, built around the very latest technology to meet ever-stretched performance requirements. Our engine not only provides impressive metrics, but most importantly is more pleasing to the human eye. With higher red content and 5800 K color temperature for better daylight balance, it delivers richer, more vivid colors and more natural skin-tones.

featured content

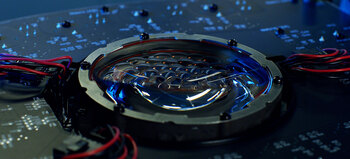

VISUAL EXCELLENCE FOR LIFE

MAC Ultra was designed to not only deliver best-in-class output and quality in its first hour of use, but throughout its product lifetime. The minimum LED lifetime exceeds 50,000 hours and the engine delivers over 90 percent of its initial output after 20,000 hours of full output. In real-world applications, this equals rock-solid performance and stability. Our engineering team has achieved these results through a sophisticated cooling system and by never driving the 1680 W LED package at more than 70 percent of its maximum rating. For maximum peace of mind, Martin provides a 5 years warranty on light engine.

featured content

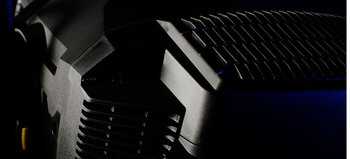

ULTRA QUIET OPERATION

The sophisticated MAC Ultra cooling system always ensures a precise operating temperature window and sets a new standard for low acoustic levels. It’s not only ideal for a range of concert and touring productions but is equally applicable for noise-sensitive broadcast and theater stage lighting applications.

featured content

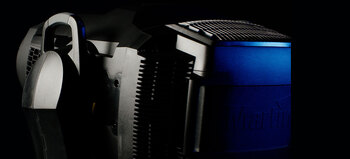

FUNCTIONAL INDUSTRIAL DESIGN

MAC Ultra features a unique and compact industrial design. Martin’s patented yoke handles provide better ergonomics and safer handling of the light. To benefit stage and set designers, all connectors and the UI are placed on the same side of the unit, leaving the opposite side free from visual distraction. Follow-spot handles are also permanently incorporated, and tool-free replacement of air-inlet filters is easier than ever to access.

Videos





Features

LIGHT SOURCE

  • 1150 W proprietary LED light engine
  • 84 x 20 W white LEDs
  • Minimum LED lifetime: >50,000 hours (see specs for further details)

PHOTOMETRIC DATA

  • Light Engine Luminous Output: 90,000 lumens
  • Fixture Luminous Output: 63,500 lumens
  • Peak Luminous Intensity: 5,000,000 cd
  • CCT: 5800 K (+/- 250 K)

OPTICS

  • 220 mm Front Lens
  • 1:7 zoom range (6.8° - 47.5° beam angle)

DYNAMIC EFFECTS

  • 0 - 100% continuous dimming and strobe effects
  • Choice of four dimming curves
  • CMY color mixing
  • Color temperature control (5800 - 2850 K)
  • Color wheel with six interchangeable dichroic filters, including a Spectral Enhancement Filter
  • 1:10 Zoom (hyper zoom); 1:7 Zoom (native zoom)
  • Motorized frost
  • Iris
  • Variable edge control
  • Pan: 540°
  • Tilt: 268°
  • P3 videomapping of fixture color and/or intensity (10 segments)
  • Pre-programmed effects: Two ranges of pre-programmed FX

COOLING AND NOISE

  • Low noise cooling system
  • User-selectable output vs. sound level control

CONSTRUCTION

  • Height (head straight up): 848 mm (33.4 in.)
  • Height (maximum): 867 mm (34.2 in.)
  • Weight: 39.0 kg (86.0 lbs.)

CONTROL

  • DMX-512 in/out
  • Ethercon in/out for P3, Art-Net, sACN
  • Built in Ethernet switch with fail-safe bypass

Specifications

  • Physical Weight: 39.0 kg (86.0 lbs.) Minimum center-to-center distance in side-by-side installation: 810 mm (31.9 in.) Length (head): 642 mm (25.3 in.) Length (base): 468 mm (15.5 in.) Width (base): 312 mm (12.3 in.) Width (across yoke): 520 mm (20.5 in.) Height (head straight up): 848 mm (33.4 in.) Height (maximum): 867 mm (34.2 in.)
    Dynamic Effects Pre-programmed effects: Two ranges of FX, independent or synchronized/combined Color mixing: CMY, independently variable 0 - 100% Color wheel: 6 x interchangeable dichroic filters + open (incl. Spectral Enhancement Filter), indexing, continuous rotation, random color Iris: Variable 0 - 100%, pulse effects Frost: Motorized Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout Color temperature control: Variable 5800 - 2850 K Dimming options: Choice of four dimming curves Zoom: Motorized Pan: 540°, coarse & fine control and speed Tilt: 268°, coarse & fine control and speed P3: Videomapping of fixture color and/or intensity with variable crossfade between DMX control and video control Focus: Motorized, range varies with zoom angle, from approx. 4.5 m (14.8 ft.) to infinity
    Control and Programming DMX channels: 29 DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 DMX/RDM Transceiver: Galvanic-isolated RS-485 Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3 Protocol detection: Automatic Setting and addressing: Display Menu, RDM, RDM over Art-Net or P3 DMX Modes: One 16-bit Controllable Parameters: Dimming, Color Mixing + CTC, Zoom, Focus, Pan and Tilt Fixture Identification: User-settable ID number Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net sACN Compliance: ANSI E1.31 - 2016 Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer Ethernet Transceiver: 10/100Mbit (with fail-safe bypass) Firmware update: USB memory device, via DMX using Martin Companion or via Ethernet using P3 System Controller Local User Interface: Backlit LCD Display with battery-powered operation
    Optics Front lens diameter: 220 mm Light source: 84 x 20 W White LEDs in a custom Martin engine Zoom Range Beam (half-peak): 6.8° - 47.5° (1:7) Zoom Range Field (tenth-peak): 9° - 62° (1:7) Maximum Total LED Engine Power: 1150 W Minimum LED Lifetime: >50,000 hours (to >80% luminous output)* / >20,000 hours (to >90% luminous output)*
    *Figure obtained under manufacturer's test conditions
    Photometric Data

    Light engine luminous output: 90,000 lumens LED refresh rate : 3000 Hz Standard Fixture luminous output: 63,500 lumens CRI (Color Rendering Index): 66 (+/- 3)TM-30 Rf (IES TM-30-15 Fidelity Index): 66 TM-30 Rg (IES TM-30-15 Gamut Index): 95 CCT: 5800 K (+/- 250 K) Peak Luminous Intensity: 5,000,000 cd With Spectral Enhancement Filter at 5300 K Fixture luminous output: 49,000 lumensCRI (Color Rendering Index): 78 (+/- 3)With CTO and Cyan at 3200 KFixture luminous output: 19,500 lumensCRI (Color Rendering Index): 90 (+/- 3)
    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

    Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP20
    Installation Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets Location: Dry location only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 0.2 m (8 in.) Minimum distance to illuminated surfaces: 4.75 m (15.6 ft.)
    Connections DMX and RDM data in/out: 5-pin locking XLR AC mains power input.: Neutrik TRUE1 socket, accepts TRUE1 NAC3FX-W (TOP) connector Ethernet (Art-Net, sACN and P3) in/out, including fail-safe bypass: Neutrik etherCON Firmware from flash memory: USB 2.0 port
    Electrical

    AC power: 200-240 V AC nominal, 50/60 Hz
    Power supply unit: Auto-ranging electronic switch mode
    Typical half-cycle RMS inrush current at 230 V, 50 Hz: 17.0 A
    Power Factor: 0.99 @ 208 V / 230 V / 240 V
    Max current draw: 8.0 A @ 200 , 6.7 A @ 230 V / 240 V
    Typical current draw: 6.6 A @ 208 V , 6.0 A @ 230 V , 5.7 A @ 240 V *
    Power Consumption
    Maximum: 1450 W
    Typical: 1360 W *
    Idle: 100 W *
    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
    Typical: full output white, no effects moving, regulated fan speed.
    Idle: no output, no effects moving, regulated fan speed.

  • Thermal Cooling: Forced air (temperature regulated, low noise) Total heat dissipation (calculated, +/- 10%): 4950 BTU/hr. Maximum surface temperature, steady state, at 40° C ambient: 85° C (185° F) Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): 5° C
    Acoustic Data Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 37.6 dB(A) Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 34.5 db(A)
    Warranty Fixture: 2 years Light Engine: 5 years
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 48 lm/w LWR*: 1,628 lm/kg (738 lm/lb)

    LWR = Lumen-to-Weight Ratio

    Approvals Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1) EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015; EN 55032; EN 61547; EN 55035; EN 61000-3-2,-11 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class B, ICES-005 Class B Australia/NZ: RCM
    Included Items Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
    Safety and Installation Manual
    Related Items Martin Companion Cable (for firmware update over DMX): P/N 91616091 Martin Companion Software (for firmware update over DMX): Free download from www.martin.com
    Accessories

    Transport and Storage
    Flightcase for 2 x MAC Ultra Performance/Wash without SIP inserts: P/N 91515055

    Consumables
    Air filter, MAC Quantum / MAC Ultra, set of 12: P/N 50400765
    CR123A 3-volt lithium battery: P/N 05801011

    Power Input Cables
    Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797
    Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 5 m (16.4 ft.) P/N 91611786
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 5 m (16.4 ft.) P/N 91610174

    Power Input Connector
    Cable Connector, Neutrik powerCON TRUE1 NAC3FX-W TOP (female): P/N 91611789HU

    Installation Hardware
    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Half-coupler Clamp: P/N 91602005
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

    Ordering Information MAC Ultra Wash, SIP (in cardboard box with SIP foam flight case insert): P/N 90250085HU MAC Ultra Wash, white finish, SIP (in cardboard box with SIP foam flight case insert): P/N 90250090HU
