Martin IP66 PSU 240W

Power supply to run Martin Creative LED on DMX

Martin IP66 PSU 240W
Larger Images

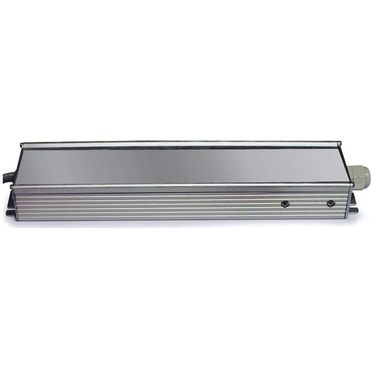

The Martin™ IP66 PSU 240W is an IP66-rated external power supply unit that can supply 48 VDC power to various Martin™ lighting and LED Video products, including the Exterior PixLine, Exterior Dot-HP and VC-Dot.

It provides an alternative to the P3 PowerPort in supplying power to fixtures in a DMX-controlled system.

  • Rugged extruded aluminum housing
  • Auto-ranging 100-240 VAC power input
  • Full protection with auto-recovery

Features

  • IP66-rated
  • Wall-mountable
  • Can be located up to 50 m (164 ft.) away from the creative LED video products
  • No configuration or addressing required

Specifications

  • Physical Length: 314 mm (12.4 in.) Width: 68 mm (2.7 in.) Height: 39 mm (1.5 in.) Weight: 1.5 kg (3.3 lbs.)
    System integration

    VDO Sceptron™ family
    VDO Fatron™ family
    VDO Dotron™ family
    Exterior PixLine™ family
    Exterior Dot-HP™ family
    VC-Grid™ family (indoor product)
    VC-Strip™ family (indoor product)
    VC-Dot™ family via VC-Feeder™
    Tripix family

    Construction Housing: Aluminum Finish: Clear anodized Protection rating: IP66, NEMA 4X RoHS compliant
    Installation Mounting: Fixation points for surface-mounting Orientation: Any Maximum cable length: See connected product user manuals Maximum number of connected fixtures: See connected product user manuals
    Connections AC power input: 100-240 V nominal, 50/60 Hz 48 VDC power output:

    To Tripix: Power Inserter Cable, Martin™ IP66 PSU 240 W to Tripix system, 0.25 m (9.8 in.), P/N 91611339
    To VDO Sceptron: Input Y-Cable, XLR5 + Martin™ IP66 PSU 240W to BBD, 0.25 m (9.8 in.), P/N 91616050
    To Exterior PixLine: Input Y-Cable, XLR5 + Martin™ IP66 PSU 240W to BBD, 0.25 m (9.8 in.), P/N 91616050
    To Exterior Dot-HP: Input Y-Cable, XLR5 + Martin™ IP66 PSU 240W to BBD, 0.25 m (9.8 in.), P/N 91616050
    To VC-Grid: Input Y-Cable, XLR5 + Martin™ IP66 PSU to XLR4, 0.25 m (9.8 in.), P/N 91616039
    To VC-Strip: Input Y-Cable, XLR5 + Martin™ IP66 PSU to XLR4, 0.25 m (9.8 in.), P/N 91616039
    To VC-Feeder (VC-Dot): Input Y-Cable, XLR5 + Martin™ IP66 PSU 240W to IP65 connector, 0.25 m (9.8 in.), P/N 11840195

    See user manuals of compatible products for latest complete information on suitable cables and connectors, safety limits, etc.
  • Electrical AC mains power input: Hard-wired (terminal block) via cable gland Power supply unit: Auto-sensing multi-voltage switch-mode DC power output: 48 V Maximum DC output power: 240 W Maximum DC output current draw: 5 A Protection: Overvoltage, overcurrent, short circuit, over-temperature, all with auto-recovery
    Thermal Cooling: Convection Total heat dissipation (calculated, including max. number of connected devices, all at full load): 820 BTU/hr. Maximum surface temperature, steady state, at 45° C ambient: 80° C (176° F) Maximum ambient temperature (Ta max.): 45° C (113° F) Minimum ambient temperature (Ta min.): -30° C (-22° F)
    Approvals EU safety: EN 60598-2-6, EN 61347-2-13 EU EMC: EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1012 Canadian safety: CSA C22.2 No. 107.1 Australia/NZ: RCM
    Accessories Power Inserter Cable, Martin™ IP66 PSU 240 W to Tripix™ system: P/N 91611339 Input Y-Cable, 5-pin XLR + Martin™ IP66 PSU 240W to BBD, 0.25m (9.8 in.): P/N 91616050 Input Y-Cable, 5-pin male XLR + Martin™ IP66 PSU 240W to 4-pin fem. XLR, 0.25 m (9.8 in.): P/N 91616039 Input Y-Cable, 5-pin male XLR + Martin™ IP66 PSU 240W to IP65, 0.25 m (9.8 in.): P/N 11840195
    Ordering Information Martin™ IP66 PSU 240 W (replaces Tripix™ Power IP66): P/N 90760330
