P3-175 System Controller

Next-Generation P3 System Controller for Easy Mapping and Control

P3-175 System Controller

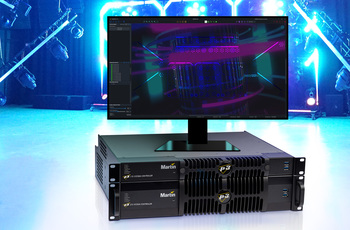

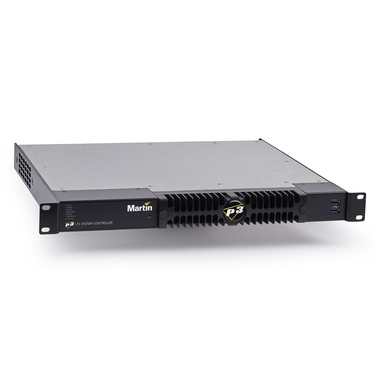

The Martin P3-175 System Controller supports video input up to Full HD (1920x1080) and allows fixtures to be mapped onto the visual canvas, patched, addressed, and configured without having to directly access the fixtures. Martin fixtures can be easily controlled from a lighting desk, video source or a mix of both. They integrate with third-party software by importing and exporting industry-standard MVR files, eliminating duplicate actions and enabling designs to be easily shared.

Uniquely creative looks can be created for each application, whether using video content, traditional DMX controls, Art-Net / sACN PixelMapping, or a mix of control methods.

The entire system is fully synchronized, ensuring all elements work cohesively without visible latency. They support Full HD video input over HDMI and NDI inputs, outputting up to 520,000 pixels to up to 2,000 fixtures. Real-time previews show you how DMX controls and video will be rendered on the fixtures.

  • MIX DMX AND VIDEO CONTROL

    Gives the lighting designer the freedom to create unique looks by entering parameters or by sending content to fixtures to ultimately create the ideal look that the designer envisions.



  • TIME-SAVING MVR INTEGRATION

    Mapping and patches can be exported to third-party lighting consoles, visualizers and CAD programs. There is no need to re-create a system repeatedly using different software packages.

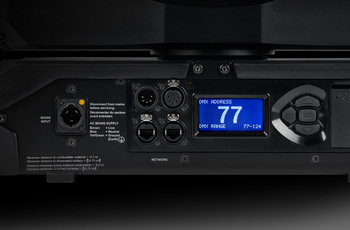

  • REMOTE ADDRESSING AND SETTING

    Eliminates the need to physically access fixtures to address and configure each one locally via the display.

  • REAL-TIME MONITORING

    Offers a complete view of your entire system to diagnose any issues.

  • SYSTEM-WIDE SYNCHRONIZATION

    Deliver perfect performance across the entire system, without visible lag and latency issues.

  • LIVE PREVIEW

    Visualize results during pre-programming without connecting actual fixtures.

featured content

MIX DMX AND VIDEO CONTROL

Gives the lighting designer the freedom to create unique looks by entering parameters or by sending content to fixtures to ultimately create the ideal look that the designer envisions.



featured content

TIME-SAVING MVR INTEGRATION

Mapping and patches can be exported to third-party lighting consoles, visualizers and CAD programs. There is no need to re-create a system repeatedly using different software packages.

featured content

REMOTE ADDRESSING AND SETTING

Eliminates the need to physically access fixtures to address and configure each one locally via the display.

featured content

REAL-TIME MONITORING

Offers a complete view of your entire system to diagnose any issues.

featured content

SYSTEM-WIDE SYNCHRONIZATION

Deliver perfect performance across the entire system, without visible lag and latency issues.

featured content

LIVE PREVIEW

Visualize results during pre-programming without connecting actual fixtures.

Videos









Features

  • Full HD video input compatible (HDMI & NDI)
  • HDMI input resolution up to 1920 x 1080
  • NDI input resolution up to 1920 x 1080
  • 256 universes of Art-Net / sACN input
  • Outputs up to 520,000 pixels on 2,000 fixtures
  • 1U rackmount
  • Map a mix of Martin fixtures onto one visual canvas
  • Patch, address, and configure Martin fixtures, without having to directly address and configure each fixture
  • Export mapping and patch to third-party lighting controllers, CAD programs and visualizers via MVR
  • Import mapping and patch from third-party lighting controllers, CAD programs and visualizers via MVR
  • Export mapping mask to third-party media servers
  • Provide real-time feedback and monitoring of Martin fixtures
  • Provide remote monitoring of the P3 System Controller and all connected fixtures without physically being onsite

Specifications

  • Physical

    Width: 482.6 mm (19.0 in.)
    Height: 44.45 mm (1.75 in.) (rackmount 1U)
    Depth: 343.0 mm (13.5 in.)
    Weight: 3.5 kg (7.7 lbs.)

    Control/User Interface

    User Interface: Full HD (1920x1080) or better monitor (VGA, DVI, HDMI or DP), USB keyboard & USB mouse
    Device Status: Status indication LEDs

    HDMI Video Input

    Standard: HDMI 1.4a
    Resolution: Supporting all standard resolutions up to 1920x1080 (Full HD)
    Framerate: Supporting frame rates up to 75fps
    Scan: Progressive & Interlaced
    EDID: Customizable via user interface
    Colour Depth: 8/10/12-bit
    Colour Sampling: RGB 4:4:4, YCbCr 4:4:4 & YCbCr 4:2:2
    Colour Formats: RGB, YCbCr 601, YCbCr 709 & YCbCr 2020

    NDI Video Input

    Standard: NDI
    Resolution: Supporting all standard resolutions up to 1920x1080 (Full HD)
    Framerate: Supporting frame rates up to 75fps

    Video Processing

    Controller pixel processing capacity: 520,000 pixels (expandable by adding P3-175s)*
    Controller fixture capacity: 2,000 fixtures (expandable by adding P3-175s)*
    Maximum workspace area: 8,847,360 pixels
    Maximum active capture area: 2,073,600 pixels
    System processing depth: 16 bits per color (48 bits per pixel)
    System latency: 2 frames
    Latency between first and last fixture: None
    Scaling: Yes, global and mixed pixel pitch
    Gamma Curve Control: Yes, adjustable
    Image Control Parameters: Hue, Saturation, Brightness, Contrast, Lowlight & Gain
    Mapping: Real-time
    Colour Temperature Control: Real-time
    Colour Space Control: Real-time
    Preview: Real-time (incoming video & mapping onto fixtures)
    *See also P3 System Controller Capacity Info Note on Downloads page

    DMX Controls

    Up to 256 universes of Art-Net or sACN input*
    Control of intensity and colours
    Control of colour temperature
    Merge video input with DMX controls towards fixtures
    Cross-fade or toggle between video and DMX controls
    Freeze, blackout or activate testpatterns on video engine
    Recall video presets (video settings, fixture positions and more)
    *See also P3 System Controller Capacity Info Note on Downloads page

    Motion Controls

    One universe of Art-Net, sACN or Kinesys K2 input*
    Compatible with Kinesys K2/Vector, Tait Navigator and others
    Control fixture or group position on video canvas
    Control fixture or group rotation on video canvas
    *See also P3 System Controller Capacity Info Note on Downloads page

    P3 Signal Protocol

    Signal type: Gigabit Ethernet
    Protocol : Proprietary Martin P3
    Hot pluggable: Yes, electrically isolated at all connections
    Cable type: Ethernet, shielded, Cat 5e or better
    Cable length: Up to 100 m between any 2 devices, extendable with Ethernet switch
    Maximum number of fixtures per daisy-chain: 50, extendable with Ethernet switch

    Construction Housing: Steel and aluminium Color: Matte black Protection rating: IP20
  • Installation Mounting: 19" rackmount (1U) or free-standing Location: Indoor or outdoor protected from elements Orientation: Horizontal only
    Connections

    Power input: IEC socket with integrated power switch
    P3 data in/out: 1x etherCON socket (100/1000Mbit)
    EtherDMX Network (Art-Net, sACN and Kinesys K2/Vector): 1x etherCON socket (100/1000Mbit)
    Management Network (remote management, syslog and webserver): 1x etherCON socket (100/1000Mbit)
    NDI Video In: 1x etherCON socket (100/1000Mbit)
    HDMI Video In: HDMI 1.4a
    Peripherals and USB memory devices: 2 x USB 2.0 ports and 2x USB 3.0 ports
    User interface monitor: DisplayPort++ (compatible with adapters to DVI, HDMI and VGA, not supplied)

    Electrical

    AC power: 100-240 V AC nominal, 50/60 Hz
    Power supply unit: Auto-ranging electronic switch mode
    Typical half-cycle RMS inrush current at 230 V, 50 Hz: 28 A
    Typical earth-leakage current: 0.50 mA
    Power Factor: 0.97 @ 100 V / 120 V , 0.91 @ 208 V / 230 V / 240 V
    Max current draw: 0.65 A @ 100 V / 120 V , 0.35 A @ 208 V / 230 V / 240 V
    Typical current draw: 0.28 A @ 100 V / 120 V , 0.15 A @ 208 V / 230 V / 240 V *
    Power Consumption
    Maximum: 65 W
    Typical: 28 W *
    Idle: 21 W *
    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
    Typical: machine running at full P3, Art-Net/sACN and Video Input capacity.
    Idle: no showfile loaded.

    Thermal Cooling: Filtered forced air (temperature-controlled fans) Maximum ambient temperature (Ta max.): 50° C (122° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Typical heat dissipation (calculated, +/- 10%): 96 BTU/hr.
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant
    Approvals EU safety: EN 62368-1 EU EMC: EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3 US safety: UL 62368-1 Canadian safety: CSA C22.2 No. 62368-1 Australia/NZ: RCM United Kingdom: UKCA India: BIS (pending)
    Included Items

    Safety Guide
    Quick Start Guide
    EU-type power cable with Schuko connector
    US-type power cable
    UK-type power cable

    Related Items

    Martin P3-275 System Controller: P/N MAR-90721101
    Martin P3-PC System Controller: Free download from www.martin.com

    Ordering Information

    Martin P3-175 System Controller: P/N MAR-90721100

Downloads

  Version Language Size Uploaded
Specifications
file type icon P3-175 System Controller - Spec Sheet
en version A, updated: Oct 2023
en  770 KB Oct 2023
Manuals
file type icon P3 System Controllers - DMX Protocol
en version 5.3.0, updated: Aug 2023
5.3.0  en  240 KB Aug 2023
file type icon P3 System Controllers - Getting Started Video
en version 6.0.0, updated: Dec 2023
6.0.0  en  Dec 2023
file type icon P3 System Controllers - Capacity Info Note
en version P, updated: Jan 2024
en  200 KB Jan 2024
file type icon P3 System Controllers - Keyboard Shortcuts
en version F, updated: Aug 2023
en  37.5 KB Aug 2023
file type icon P3 System Controllers – Training Videos
en version A, updated: Oct 2023
en  Oct 2023
file type icon P3-175/275 System Controller - Quick Guide
en version A, updated: Oct 2023
en  1.95 MB Oct 2023
Brochures
file type icon Pro Install Overview Brochure
en updated: Oct 2023
  en  23.1 MB Oct 2023
Illustrations
file type icon P3-175 System Controller - 2D Dimensions (PDF)
en version A, updated: Nov 2023
en  143 KB Nov 2023
Symbols
file type icon AutoCAD 2D Symbols
en version 2.1, updated: Dec 2023
2.1  en  3.7 MB Dec 2023
file type icon AutoCAD 3D Symbols
en version 2.1, updated: Dec 2023
2.1  en  14.1 MB Dec 2023
file type icon Martin Professional GDTF Library
en version A, updated: Oct 2023
en  203 Bytes Oct 2023
file type icon Vectorworks Symbols
en version 3.8, updated: Dec 2023
3.8  en  371 MB Dec 2023
CAD Drawings
file type icon P3-175 System Controller - 3D DWG
en version A, updated: Nov 2023
en  1.93 MB Nov 2023
file type icon P3-175 System Controller - 3DS
en version A, updated: Nov 2023
en  10 MB Nov 2023
Compliances
file type icon P3-175 System Controller - CB Test Certificate
en version A, updated: Nov 2023
en  526 KB Nov 2023
file type icon P3-175/275 System Controller - EU Declaration of Conformity
en version A, updated: Nov 2023
en  223 KB Nov 2023
file type icon P3-175/275 System Controller - UKCA Declaration of Conformity
en version A, updated: Nov 2023
en  154 KB Nov 2023
file type icon Safety Document (SDS) for CR2032 Battery
en version A, updated: Nov 2023
en  571 KB Nov 2023
file type icon P3-175/275 System Controller - ETL Certificate of Compliance
en version A, updated: Oct 2023
en  185 KB Oct 2023
Software
platform icon P3 Fixture Adjuster One-Key Conversion
version 2016-05-30, updated: Oct 2023
2016-05-30     446 KB Oct 2023
platform icon P3 Personality and Firmware Update Package 6.0.0
version 2024-01-10, updated: Jan 2024
2024-01-10     3.58 MB Jan 2024
platform icon P3-175/275 Software
version 6.0.2, updated: Jan 2024
6.0.2     108 MB Jan 2024
platform icon P3-175/275 Recovery Wizard
version 6.0.2, updated: Jan 2024
6.0.2     152 MB Jan 2024
platform icon P3 Personality and Firmware Update Package 6.0.2
version 2024-01-24, updated: Jan 2024
2024-01-24     280 Bytes Jan 2024
Service Notes
file type icon Running P3 network in surge-sensitive environment
en version A, updated: Oct 2023
en  33.3 KB Oct 2023
Showfiles
file type icon Martin P3 Content Package Rev. B Part 1 - H.264
en version B, updated: Aug 2023
en  950 MB Aug 2023
file type icon Martin P3 Content Package Rev. B Part 2 - H.264
en version B, updated: Aug 2023
en  883 MB Aug 2023
file type icon Martin P3 Content Package Rev. B Part 3 - H.264
en version B, updated: Aug 2023
en  924 MB Aug 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
