P3-300 System Controller

High capacity P3 System Controller

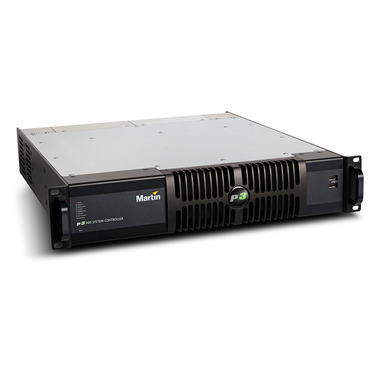

P3-300 System Controller

The Martin P3-300 System Controller supports video input up to Full HD (1920x1080) and allows fixtures to be mapped onto the visual canvas, patched, addressed, and configured without having to directly access the fixtures. Martin fixtures can be easily controlled from a lighting desk, video source or a mix of both. They integrate with third-party software by importing and exporting industry-standard MVR files, eliminating duplicate actions and enabling designs to be easily shared.

Uniquely creative looks can be created for each application, whether using video content, traditional DMX controls, Art-Net / sACN PixelMapping, or a mix of control methods.

The entire system is fully synchronized, ensuring all elements work cohesively without visible latency. They support Full HD video input over DVI and 3G-SDI inputs, outputting up to 2,080,000 pixels to up to 2,000 fixtures. Real-time previews show you how video will be rendered on the fixtures.

Videos









Features

  • Full HD video input compatible (DVI & 3G-SDI)
  • DVI input resolution up to 1920 x 1080
  • 2x 3G-SDI input resolution up to 1920 x 1080
  • Component input resolution up to 1920 x 1080
  • Dedicated bi-level and tri-level sync input for genlock
  • 64 universes of Art-Net / sACN input
  • 1 universe of 5-pin XLR DMX input
  • Outputs up to 2,080,000 pixels on 2,000 fixtures
  • 2U rackmount
  • Map a mix of Martin fixtures onto one visual canvas
  • Patch, address, and configure Martin fixtures, without having to directly address and configure each fixture
  • Export mapping and patch to third-party lighting controllers, CAD programs and visualizers via MVR
  • Import mapping and patch from third-party lighting controllers, CAD programs and visualizers via MVR
  • Export mapping mask to third-party media servers
  • Provide real-time feedback and monitoring of Martin fixtures
  • Provide remote monitoring of the P3 System Controller and all connected fixtures without physically being onsite

Specifications

  • Physical Width: 482.6 mm (19.0 in.) Height: 88.90 mm (3.50 in.) (rackmount 2U) Depth: 508.0 mm (20.0 in.) Weight: 9.0 kg (19.8 lbs.)
    Control/User Interface

    User Interface: Full HD (1920x1080) or better monitor (VGA, DVI, HDMI or DP), USB keyboard & USB mouse
    Device Status: Status indication LEDs

    DVI Video Input

    Resolution: Supporting all standard resolutions up to 1920x1080 (Full HD)
    Framerate: Supporting frame rates up to 60fps
    Scan: Progressive only
    EDID: Customizable via user interface
    Colour Depth: 8-bit
    Colour Sampling: RGB 4:4:4, YCbCr 4:4:4 & YCbCr 4:2:2

    Component Video Input

    Connection: Via DVI-I breakout cable (not included)
    Standards: Composite NTSC/PAL/Secam, S-Video (Y/C) and component YPbPr w/Sync-on-G (Y)
    Resolution: Supporting all standard resolutions up to 1920x1080 (Full HD)
    Sync: Supporting tri-level sync
    Scan: Progressive & Interlaced
    Sampling: 10-bit

    SDI Video Input

    2 x SD-SDI 525/60 (NTSC) or 625/50 (PAL) per SMPTE 259M
    2 x HD-SDI 720p per SMPTE 296M or 1080i per SMPTE 292M
    1 x dual-link HD-SDI per SMPTE 372M
    2 x 3G-SDI per SMPTE 424M (compatible with level A and level B sync)

    Genlock Input Supports bi-level and tri-level sync
    Video Processing

    Controller pixel processing capacity: 2,080,000 pixels (expandable by adding P3-300s)*
    Controller fixture capacity: 2,000 fixtures (expandable by adding P3-300s)*
    Maximum workspace area: 2,073,600 pixels
    Maximum active capture area: 2,073,600 pixels
    System processing depth: 16 bits per color (48 bits per pixel)
    System latency progressive: 2 frames
    System latency interlaced: 3 frames
    Latency between first and last fixture: None
    Scaling: Yes, global and mixed pixel pitch
    Gamma Curve Control: Yes, adjustable
    Image Control Parameters: Hue, Saturation, Brightness, Contrast, Lowlight & Gain
    Mapping: Real-time
    Colour Temperature Control: Real-time
    Colour Space Control: Real-time
    Preview: Real-time (incoming video & mapping onto fixtures)
    *See also P3 System Controller Capacity Info Note on Downloads page

    DMX Controls

    Up to 64 universes of Art-Net or sACN input*
    Control of intensity and colours
    Control of colour temperature
    Merge video input with DMX controls towards fixtures
    Cross-fade or toggle between video and DMX controls
    Freeze, blackout or activate testpatterns on video engine
    Recall video presets (video settings, fixture positions and more)
    *See also P3 System Controller Capacity Info Note on Downloads page

    Motion Controls

    One universe of Art-Net, sACN or Kinesys K2 input*
    Compatible with Kinesys K2/Vector, Tait Navigator and others
    Control fixture or group position on video canvas
    Control fixture or group rotation on video canvas
    *See also P3 System Controller Capacity Info Note on Downloads page

    P3 Signal Protocol

    Signal type: Gigabit Ethernet
    Protocol : Proprietary Martin P3
    Hot pluggable: Yes, electrically isolated at all connections
    Cable type: Ethernet, shielded, Cat 5e or better
    Cable length: Up to 100 m between any 2 devices, extendable with Ethernet switch
    Maximum number of fixtures per daisy-chain: 50, extendable with Ethernet switch

  • Construction Housing: Steel and aluminum Color: Matte black Protection rating: IP20
    Installation Mounting: 19" rackmount (2U) or free-standing Location: Indoor or outdoor protected from elements Orientation: Horizontal only
    Connections

    Power input: IEC socket with integrated power switch
    P3 data in/out: 4x etherCON socket (1000Mbit)
    EtherDMX Network (Art-Net, sACN and Kinesys K2/Vector): 1x etherCON socket (100/1000Mbit)
    Management Network (remote management, syslog and webserver): 1x etherCON socket (100/1000Mbit)
    DMX in: 5-pin locking XLR
    DMX thru: 5-pin locking XLR
    DVI/component video in: DVI-I (component via BNC-to-DVI-A adapter cable, not included)
    DVI/component video thru: DVI-I
    SDI video in: 2 x BNC
    SDI video thru: 2 x BNC
    Genlock in: 1 x BNC
    Genlock thru: 1 x BNC
    Peripherals and USB memory devices: 4 x USB 2.0 ports
    User interface monitor: DisplayPort++ (compatible with adapters to DVI, HDMI and VGA, not supplied)

    Electrical

    AC power: 100-240 V AC nominal, 50/60 Hz
    Power supply unit: Auto-ranging electronic switch mode

    Thermal Cooling: Filtered forced air (temperature-controlled fans) Total heat dissipation (calculated, +/- 10%): 157 BTU/hr. Maximum ambient temperature (Ta max.): 50° C (122° F) Minimum ambient temperature (Ta min.): 5° C (41° F)
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant
    Approvals EU safety: EN 60950-1 EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 6100-4-2, EN 6100-4-3, EN 6100-4-4, EN 6100-4-5, EN 6100-4-6, EN 6100-4-11 US safety: ANSI/UL 60950-1 Canadian safety: CAN/CSA C22.2 No. 60950-1 Australia/NZ: RCM United Kingdom: UKCA
    Included Items

    Safety Guide
    Quick Start Guide
    EU-type power cable with Schuko connector
    US-type power cable
    UK-type power cable

    Related Items

    Martin P3-050 System Controller: P/N 90721090
    Martin P3-150 System Controller: P/N 90721015
    Martin P3-175 System Controller: P/N MAR-90721100
    Martin P3-275 System Controller: P/N MAR-90721101
    Martin P3-PC System Controller: Free download from www.martin.com

    Ordering Information Martin P3-300 System Controller: P/N 90721060
