RUSH BLINDER 1 WW

Static warm white LED wash / blinder

RUSH BLINDER 1 WW
Larger Images

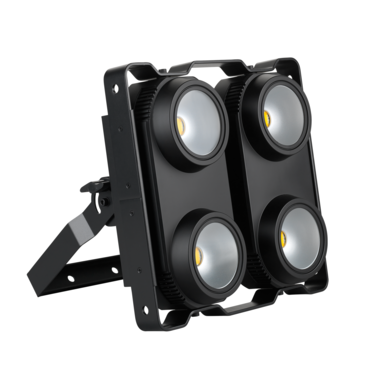

The RUSH BLINDER 1 WW is an ultra-bright quad LED blinder fixture. The 2x2 blinder features a PAR array with four individually-controllable 100 watt COB warm white LEDs, providing high-intensity light for a variety of entertainment events. The unique frame on the RUSH BLINDER 1 WW offers the ability to attach multiple fixtures together in a grid pattern. With individually-controllable COBs, multiple units can be used to create pixel effects across a grid of fixtures, with on-board electronic dimming and strobe also available.

The fixture offers a wide 70° beam angle, with a combined 19,000+ lumens output from the fixture for truly brilliant effects. The rugged, lightweight construction and available brackets for floor or truss mounting make the RUSH BLINDER 1 WW ideal for live shows, TV events, stage, concerts, and nightclubs.

  • Ultra-bright 2x2 100W LED blinder with individually-controllable LEDs
  • Unique frame allows multiple fixtures to be mounted together
  • Wide 70° beam angle for broad coverage

Features

  • 2x2 100W COB warm white LEDs
  • 19,000+ lumens output
  • Full pixel control of individual COBs
  • Unique frame offers grid installation
  • 70° beam angle
  • Electronic dimming and strobe
  • Brackets are available for floor or truss mounting
  • Lightweight construction (5 kg / 20.9 lbs.)

Specifications

  • Physical Length: 400 mm (15.7 in.) Width: 441 mm (17.4 in.) Height: 177 mm (7.0 in.) Weight: 9.5 kg (20.9 lbs.)
    Dynamic Effects Dimming: 0 – 100%, coarse & fine control Shutter: Strobe & pulse effects, instant open and blackout
    Control and Programming Control systems: USITT DMX512/1990 with RDM DMX channels: 1, 4, or 8 RDM compliance: ANSI/ESTA E.120 Interface: Control panel with backlit LCD display
    Optics Beam angle: 70°
    Construction Housing: High impact flame retardant thermoplastic and aluminum Color: Black Protection rating: IP20
    Installation Mounting points: Adjustable bracket, surface or truss mount Location: Indoor location only Orientation: Any Minimum distance to combustible materials: 0.1 m (4 in.) Minimum distance to illuminated surfaces: 0.5 m (20 in.)
    Connections AC power input/output: Neutrik PowerCon DMX and RDM data in/out: 3-pin and 5-pin locking XLR
  • Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch mode Fuse: T 250 V 6.3 A Typical half-cycle RMS inrush current: 15.5 A at 240 V, 50 Hz Recommended Miniature Circuit Breaker when power linking: Type D* Maximum total power consumption: 448 W *Per IEC 60898/UL489/CSA C22.2 No. 5
    Typical Power and Current 100 V, 60 Hz: 432 W, 4.3 A, PF 0.998 120 V, 60 Hz: 428 W, 3.6 A, PF 0.996 230 V, 50 Hz: 426 W, 1.9 A, PF 0.956 Measurements made at nominal voltage. Figures are typical, not maximum, allow for a deviation of +/- 10%.
    Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 0° C (32° F)
    Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: 47 CFR 15 Class A Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class A Australia/NZ: RCM
    Included Items Power cable, 1.5 m without mains plug
    Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader):

    Free download from www.martin.com

    Accessories Power connectors:

    Power Connector PowerCON Male: P/N 91611795
    Power Connector PowerCON Female : P/N 91611794

    Cables, 16 A, for connection to power in chains:

    Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
    Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
    Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
    Power relay cable 3 x 14 AWG,SJOOW POWCON-POWCON 2.5m (8.2 ft.) : P/N 91610176

    Cables, 16 A, for power input:

    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
    (H07RN-F are European approved cables, SJOOW are US approved cables)

    Installation hardware:

    Half-coupler clamp: P/N 91602005
    G-clamp (vertical hanging suspension only): P/N 91602003
    Quick-trigger clamp (vertical hanging suspension only): P/N 91602007

    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006 Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
    Ordering Information RUSH BLINDER 1 WW in cardboard box: P/N 90480150
