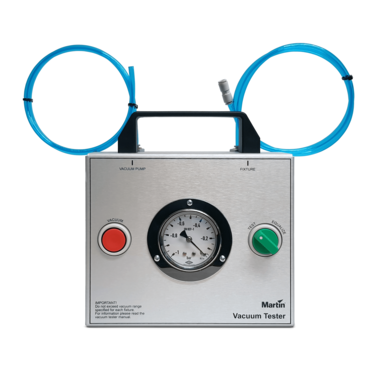

The Martin Vacuum Tester is designed as an easy-to-use service tool for qualified technicians, to verify correct sealing against any water or dust ingress of Martin outdoor rated products
_original_vert_medium.png)
Larger Images
Specifications
-
Physical Length: 210 mm (8.2 in.) Width: 100 mm (3.9 in.) Height: 220 mm (8.6 in.) – including handle Weight: 1.3 kg (2.9) lbs.Included Items Pump adaptor M12x1, very fine: P/N 50503001 Pump adaptor M12x1.5, fine: P/N 50503002
Suction cup
Vacuum hoses for connection to pump and to Exterior fixtureOrdering Information Vaccum Tester: P/N 91611580Specifications for required vacuum pump (not included) Pumping capacity: Minimum 30 liters per minute. Vacuum capacity: Minimum 10 Pa/0.0001 bar, maximum 50 Pa/0.0005 bar
Downloads
| Size | ||||
Manuals | ||||
Performing a vacuum test
version H,
updated: Dec 2020
|
1020 KB | |||
Illustrations | ||||
|
Vacuum test equipment (EC) - 2D dimensions (PDF)
updated: Dec 2020
|
716 KB | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
