VC-Grid 15

Creative LED Video tile with 15mm pixel pitch

VC-Grid 15
Larger Images

Soon to be discontinued - please contact your dealer for information

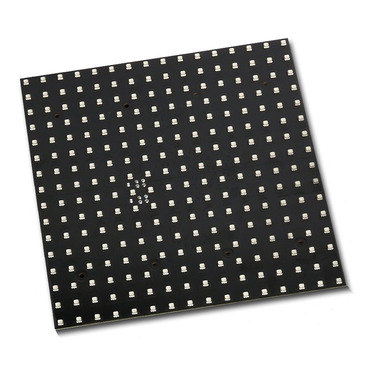

The VC-Grid 15 is a small, 240 x 240 mm LED video module with a 15 mm pixel pitch. Useful in creating customized LED video solutions with maximum artistic flexibility and a minimum of effort, the VC-Grid’s compact size makes it extremely suitable for integration into stage designs, set elements, creative ceilings, lobbies and much more. Used with or without a front diffuser, multiple VC-Grids can be combined in a countless variety of ways for ultimate design freedom. A combined power/data cable allows VC-Grids to be daisy-chained for easy setup and less cabling

  • Wide range of pixel pitches to suit every application
  • Easy cabling, mapping and configuration
  • Bright and fully calibrated for optimal consistency

Videos

















Features

  • 15 mm pixel pitch
  • 256 individually controllable pixels
  • DMX Control
  • P3 Control with VideoMapping
  • Hybrid DMX + P3 Control (toggle in real-time between DMX, PixelMapping and VideoMapping using P3 Switch channel)
  • 5000 nits of brightness
  • 15000 lumen per square meter
  • High-quality 16-bit per color image processing technology
  • Pixel-level brightness and color calibration for optimal image quality and matching between products
  • Intuitive mapping and addressing via P3 System Controller
  • Combined power/data input (single cable for power and data input)
  • Combined power/data thru (to daisy-chain multiple VC-Grids)
  • Supported by integrated power and data processor (P3 PowerPort 1500 or DMX PowerPort 375) and simple cabling system
  • Custom designs available on request (pixel pitch and module dimensions)
  • Compatible with VC-Strip 15

Specifications

  • Physical Length: 240 mm (9.5 in.) * Width: 240 mm (9.5 in.) * Height: 15 mm (0.6 in.) Weight: 311 g (0.7 lbs.) *Including 5 mm (0.2 in.) board-to-board gap
    Control and Programming Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Control options: Martin P3™ System Controller (via Martin P3 PowerPort™) or DMX Protocol detection: Automatic Setting and addressing: Martin P3™ System Controller or RDM-compliant controller Color and intensity calibration: Pixel-level Firmware update: Via Martin P3™ System Controller

    Control modes, direct DMX control: Module and QuadPixel DMX channels, direct DMX control: 3/192 Control modes, DMX via P3: P3 Intensity, P3 RGB, P3 Basic, P3 Hybrid and P3 PixelMap DMX channels, DMX via P3: Wide range of options from 1 to 771

    Control/User Interface Device status: Multi-color visual indication Device test and reset: Pushbutton to call up local test patterns and reset device
    Optics Minimum LED lifetime: 50,000 hours (to >70% luminous output)* Binning: Tight color and flux binning Calibration: Full Gamut Pixel Calibration *Figure obtained under manufacturer's test conditions.
    Photometric Data Color resolution: 16 bits per color (48 bits per pixel) Viewing angle: 120° x 120° (half-peak)

    Pitch (pixel center-to-center): 15.00 mm Total output, calibrated mode: 5000 nits (fixtures placed in continuous surface) Luminous output, calibrated mode: 15000 lumen per square meter LED Array VC-Grid 15 16x16: 16 x 16

    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

    P3 Video Processing

    Brightness control
    Gamma correction and control
    Color temperature control
    Color space control
    Calibration processing
    Synchronization

    Signal Protocol Martin P3 (via Martin P3™ PowerPort) or DMX (direct)
    Construction Base: Black FR4 circuit board Transparency through module (unmasked area): 0% Protection rating: IP20 RoHS compliant
  • Installation Mounting: Mounting holes in module Orientation: Any Maximum number of VC-Grid™ 16x16 15 modules per daisy-chain: 4
    Connections Power & data input: 4-pin Molex connector Power & data thru: 4-pin Molex connector
    Electrical Nominal input voltage: 48 VDC +/- 4% Power supply options: Martin P3™ PowerPort 1500, DMX PowerPort 375, Martin™ IP66 PSU 240W or generic 48 VDC PSU Maximum power consumption, all LEDs at full intensity, VC-Grid 15 16x16: 50 W
    Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 45° C Minimum ambient temperature (Ta min.): -20° C Maximum total heat dissipation, calculated, +/- 10%:

    VC-Grid 15 16x16: 171 BTU/hr

    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant
    Approvals EU safety: EN 60950 EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3 US safety: ANSI/UL 60950-1 Canadian safety: CSA C22.2 No. 60950-1
    Related Items Martin P3™ PowerPort 1500: P/N 90721040 Martin DMX PowerPort 375: P/N 90721094 Martin™ IP66 PSU 240 W external power supply unit: P/N 90760330 Martin P3-050™ System Controller: P/N 90721090 Martin P3-150™ System Controller: P/N 90721015 Martin P3-300™ System Controller: P/N 90721060 Martin P3-PC™ System Controller: Free download from martin.com
    Accessories VC-Grid 15/30/60 Mounting Frames, set of 10: P/N 91611560 Input cables:

    Power+Data Adapter XLR4-PCB, 0.25 m (0.9 ft.): P/N 91616035
    Power+Data Adapter XLR5+Power-XLR4, 0.25 m (0.9 ft.): P/N 91616037
    Power+Data Adapter XLR5+XLR4-XLR4, 0.25 m (0.8 ft.): P/N 91616038
    Power+Data Adapter XLR5+Tripi-XLR4, 0.25 m (0.9 ft.): P/N 91616039

    VC-Grid to VC-Grid link cables:

    Power+Data Cable PCB-PCB, 200 mm (7.9 in.): P/N 91616025
    Power+Data Cable PCB-PCB, 400 mm (15.8 in.): P/N 91616026
    Power+Data Cable PCB-PCB, 600 mm (23.7 in.): P/N 91616027
    Power+Data Cable PCB-PCB, 800 mm (31.5 in.): P/N 91616028
    Power+Data Cable PCB-PCB, 1000 mm (39.4 in.): P/N 91616029

    Extension cables:

    Power+Data Cable XLR4-XLR4, 1 m (3.3 ft.): P/N 91616030
    Power+Data Cable XLR4-XLR4, 2.5 m (8.2 ft.): P/N 91616031
    Power+Data Cable XLR4-XLR4, 5 m (16.4 ft.): P/N 91616032
    Power+Data Cable XLR4-XLR4, 10 m (32.8 ft.): P/N 91616033
    Power+Data Cable XLR4-XLR4, 25 m (82.1 ft.): P/N 91616034

    Output/throughput cables:

    Power+Data Adapter PCB-XLR4, 0.25 m (0.9 ft.): P/N 91616036
    Power+Data Adapter XLR4-XLR5, 0.25 m (0.9 ft.): P/N 91616040

    Cable without connectors:

    Power+Data Cable, Rental, 100 m (328.1 ft.): P/N 91616045
    Power+Data Cable, Install CMX, 100 m (328.1 ft.): P/N 91616060
    Power+Data Cable, Install LSZH, 100 m (328.1 ft.): P/N 91616017

    Ordering Information VC-Grid™ 16x16 15 RGB: P/N 90357540 (to be ordered in multiples of 4)
