Width excluding hanging bracket: 288 mm (11.3 in.) (identical to 2x VDO Atomic Dot locked together)

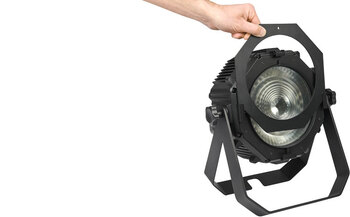

Width including hanging bracket: 371 mm (14.6 in.)
Height excluding hanging bracket: 288 mm (11.3 in.) (identical to 2x VDO Atomic Dot locked together)
Height including hanging bracket: 394 mm (15.5 in.)

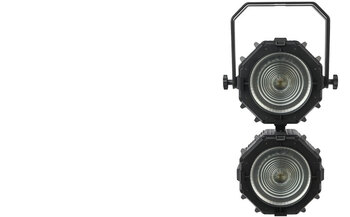

Horizontal fixture spacing: 300 mm (11.8 in.) (center-to-center using interlock couplers)
Vertical fixture spacing: 300 mm (11.8 in.) (center-to-center using interlock couplers)
Depth: 161 mm (6.3 in.)
Weight including hanging bracket: 9.32 kg (20.5 lbs.)
Weight excluding hanging bracket: 7.65 kg (16.9 lbs.)

Beam Dimmer/Shutter: 0 – 100% continuous dimming, variable flash rate and duration, and atomic effects
Beam Dimming options: Choice of four dimming curves
Beam Color mixing: RGB, independently variable 0 - 100%

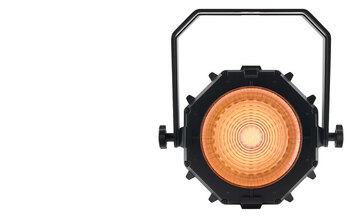

Beam Color temperature control: Variable 2,000 – 11,000 K
Beam Virtual Color wheel: 48 color presets, continuous rotation and random color
Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control

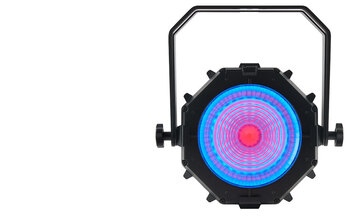

Aura Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe effects
Aura Dimming options: Choice of four dimming curves
Aura Color mixing: RGB, independently variable 0 - 100%
Aura Color temperature control: Variable 2,000 – 11,000 K
Aura Virtual Color wheel: 48 color presets, continuous rotation & random color
Aura PixelMapping: individual RGB control of each Aura pixel
Aura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Built-in FX: Various pre-programmed FX on Beam, Aura and combination of both

Lens Diameter: 200 mm
Front Accessory Holder: PAR64 size

Beam/Strobe LED
LED Type: RGBW
Max. total lumen output: 13,000 lumens (boost/strobe mode)
Max. total lumen output: 8,000 lumens (continuous mode)
Center intensity: 170,000 cd (boost/strobe mode)
Center intensity: 103,000 cd (continuous mode)
Beam Angle: 12 Degrees (half peak)
Field Angle: 26 Degrees (one-tenth peak)
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration
Color Modes: Extended Mode and Calibrated Mode
CRI (Color Rendering Index): >83 (at 6500 K mixed white)
CQS (Color Quality Scale): >87 (at 6500 K mixed white)
TM-30 Rf (IES TM-30-15 Fidelity Index): >83 (at 6500 K mixed white)
TM-30 Rg (IES TM-30-15 Gamut Index): >106 (at 6500 K mixed white)
TLCI (Television Lighting Consistency Index): >85 (at 6500 K mixed white)
Color Temperature: variable (2,000 - 11,000 K)
Resolution: 16-bit per color
Minimum LED lifetime: 50,000 hours (to >70% luminous output)

Aura Backlight LEDs
LED Type: RGB
LED Quantity: 72
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration
Color Modes: Extended Mode and Calibrated Mode
Color Temperature: Variable (2,000 - 11,000 K)
Resolution: 16-bit per color per pixel
Minimum LED lifetime: 50,000 hours (to >70% luminous output)

* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

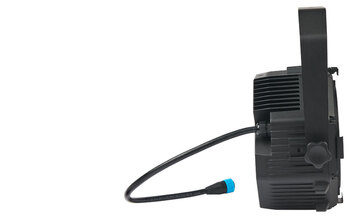

AC Power, DMX and Network input: cable tail with PDE hybrid connector (IP65)
AC Power, DMX and Network thru: chassis-mount PDE hybrid connector (IP65)
All connections hot plugging compatible

AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 3.0 A
Typical earth-leakage current: 0.80 mA
Power Factor: 0.99 @ 100 V / 120 V , 0.97 @ 208 V , 0.96 @ 230 V , 0.95 @ 240 V
Max current draw: 4.0 A @ 100 V / 120 V , 1.9 A @ 208 V / 230 V / 240 V
Typical current draw: 3.6 A @ 100 V , 3.0 A @ 120 V , 1.7 A @ 208 V , 1.6 A @ 230 V , 1.6 A @ 240 V *
Power Consumption
Maximum: 400 W
Typical: 358 W *
Idle: 14 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, regulated fan speed.
Idle: no output, regulated fan speed.

LWR = Lumen-to-Weight Ratio

User Guide

Junction Boxes
Passive Junction Box Power-DMX-Ethernet to PDE: P/N 91610001
Active Junction Box Power-DMX-Ethernet to PDE: P/N MAR-91700002

Adapters Cables
BreakIn Cable Power-DMX-Ethernet to PDE: P/N MAR-91700000
BreakOut Cable PDE to Power-DMX-Ethernet: P/N MAR-91700001
BreakInOut Cable Power-DMX to PDE: P/N MAR-91700003

Optical Accessories
VDO Atomic Bold Diffuser 60 Degrees: P/N MAR-91616119
VDO Atomic Bold Diffuser 30 Degrees: P/N MAR-91616120

Mechanical Accessories
Super Lightweight Half Coupler Rigging Clamp, black: P/N 91602018
G-clamp (vertical hanging installation only): P/N 91602003
Half-coupler clamp: P/N 91602005
Quick trigger clamp (vertical hanging installation only): P/N 91602007
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
VDO Atomic Bold Interlock Doubler: P/N MAR-91616122
Set of 10 VDO Atomic Couplers: P/N 91610003
VDO Atomic Half Coupler: P/N 91610004
VDO Atomic Interlock Adapter: P/N 91610006
VDO Atomic Pivot Coupler: P/N 91610007
VDO Atomic Spigot Adapter 28mm: P/N MAR-91616118
VDO Atomic Bold Double Width Bracket: P/N MAR-91616121

Pre-Assembled Hybrid PDE Cables
Power+Data Cable Rental PDE-PDE 1 m: P/N 91616001
Power+Data Cable Rental PDE-PDE 2.5 m: P/N 91616002
Power+Data Cable Rental PDE-PDE 5 m: P/N 91616003
Power+Data Cable Rental PDE-PDE 10 m: P/N 91616004
Power+Data Cable Rental PDE-PDE 25 m: P/N 91616005

Bulk Hybrid PDE Cable and Connectors
Power+Data Connector PDE Male: P/N 91611701
Power+Data Connector PDE Female: P/N 91611702
Power+Data Cable Power-DMX-Ethernet Rental 100 m: P/N 91616006

Flightcase
Flightcase for 6 x VDO Atomic Bold: P/N MAR-91515056
