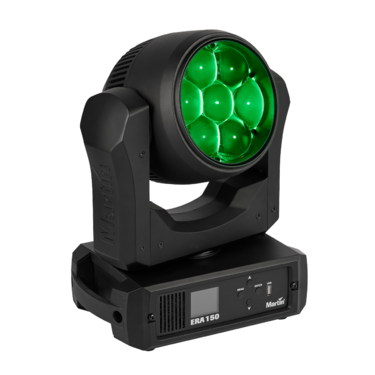

ERA 150 Wash

Moving-head LED wash fixture with zoom

ERA 150 Wash

The Martin ERA 150 Wash moving-head LED wash fixture provides class-leading lumen output, high-intensity narrow zoom and full-gamut color calibration for accurate color reproduction and color temperature control, making it an incredibly versatile yet affordable workhorse lighting solution for rentals, installs and touring.

The ERA 150 Wash takes performance even further thanks to a newly designed optical system that produces a wider zoom range, higher output and wide uniform wash field. Other advancements include advanced color-calibration features including extended color mode and a CTC channel that allows RGB color mixing around your desired white point.

Whether lighting a theatre production, live concert, exhibition or corporate event, fill the stage with color and create brilliant, focused beam effects with this flexible moving-head fixture that brings new versatility to the designers' toolbox.

  • CLASS-LEADING LUMEN OUTPUT

    The ERA 150 Wash delivers a stunning 3,900 lumens—twice the brightness of the previous generation of compact wash moving heads—thanks to its newly designed 7 x 40W RGBW light engine. This superior output covers larger stages that require longer throw distances.

  • HIGH-INTENSITY NARROW ZOOM FOR VERSATILE EFFECTS

    The ERA 150 Wash's newly designed zoom system can produce precise beam angles as narrow as 4 degrees, delivering a high intensity of over 370,000 cd. It's perfect for creating sharp, punchy mid-air beams, cutting through light levels previously not possible in a wash fixture of its size.

  • FULL-GAMUT COLOR CALIBRATION

    The ERA 150 Wash features a full-gamut color calibration system, which allows consistent color reproduction from fixture to fixture and supports a dedicated color temperature control channel for adjusting the color space from the desired color temperature.

  • ULTRA-QUIET OPERATION

    In Theatre mode, the ERA 150 Wash operates at 33 dB-literally as soft as a whisper.

  • TOUR READY

    The ERA 150 Wash is housed in a lightweight yet durable chassis, and offers a USB firmware update system and battery backup display.

featured content

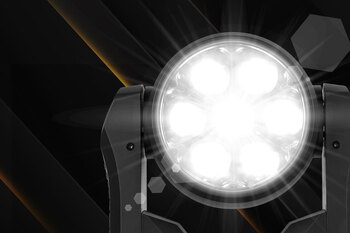

CLASS-LEADING LUMEN OUTPUT

The ERA 150 Wash delivers a stunning 3,900 lumens—twice the brightness of the previous generation of compact wash moving heads—thanks to its newly designed 7 x 40W RGBW light engine. This superior output covers larger stages that require longer throw distances.

featured content

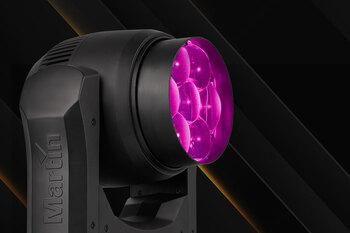

HIGH-INTENSITY NARROW ZOOM FOR VERSATILE EFFECTS

The ERA 150 Wash's newly designed zoom system can produce precise beam angles as narrow as 4 degrees, delivering a high intensity of over 370,000 cd. It's perfect for creating sharp, punchy mid-air beams, cutting through light levels previously not possible in a wash fixture of its size.

featured content

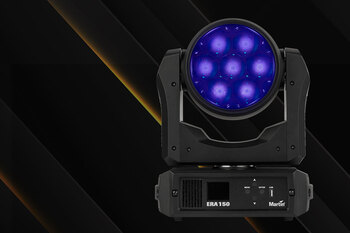

FULL-GAMUT COLOR CALIBRATION

The ERA 150 Wash features a full-gamut color calibration system, which allows consistent color reproduction from fixture to fixture and supports a dedicated color temperature control channel for adjusting the color space from the desired color temperature.

featured content

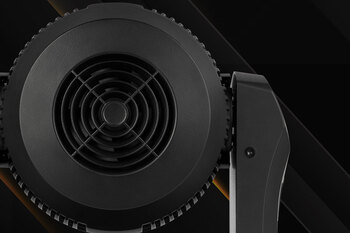

ULTRA-QUIET OPERATION

In Theatre mode, the ERA 150 Wash operates at 33 dB-literally as soft as a whisper.

featured content

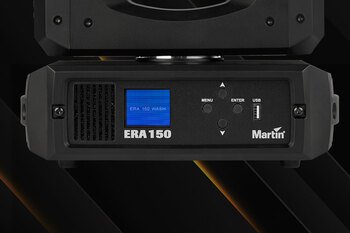

TOUR READY

The ERA 150 Wash is housed in a lightweight yet durable chassis, and offers a USB firmware update system and battery backup display.

Videos





Features

  • Light engine: LED 7 x 40W RGBW
  • Full-gamut color calibration
  • CTC control: 1,800–12,850 K
  • High output: 3,700 lm
  • High intensity 397,783 cd
  • Zoom: 4.2 - 58˚
  • Low-noise cooling system
  • High-speed pan, tilt & zoom
  • Weight 7.3 kg (16.1 lbs.)
  • Dimensions: 276 x 176 x 356 mm (10.9 x 7.0 x 14.1 in.)

Specifications

  • Physical Length: 276 mm (10.9 in.) Width: 176 mm (7.0 in.) Height: 356 mm (14.1 in.) Weight: 7.3 kg (16.1 lbs.)
    Dynamic Effects Color mixing: RGBW Color presets: 48 color presets, virtual color wheel effects Color temperature control: Variable 1,800 - 12,850 K Electronic dimming: 0 - 100%, four dimming curve options Strobe and pulse effects: Variable speed and action, random strobe Electronic shutter effect: Instant open and blackout Zoom: Motorized, 4.2 - 58° Pan: 540° Tilt: 260°
    Control and Programming DMX channels: 18 DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Control options: DMX, RDM 16-bit fine control: Dimming, RGB, zoom, pan and tilt LED color management modes: Raw, extended and calibrated DMX address setting: Control panel with LCD display Fixture software update: USB memory device or over DMX link
    Optics Light source: 7 x 40 W RGBW Osram LEDs Minimum LED lifetime: 50,000 hours (to >70% luminous output)* Beam angle (half-peak): 4.2° - 38.7° Field angle (one-tenth peak): 5.1° - 58.6° Cutoff angle (3%): 5.7° - 69.6° Binning: Tight color and flux binning Calibration: Full Gamut Color Calibration
    *Figure obtained under manufacturer's test conditions
    Photometric Data Wide beam: 3700 lumens Narrow beam: 1774 lumens Fixture Center Intensity Narrow Beam: 397783 cd Fixture Center Intensity Wide beam: 10042 cd CRI (Color Rendering Index) : >70 CQS (Color Quality Scale): 83 TM-30 Rf (IES TM-30-15 Fidelity Index): 77 TM-30 Rg (IES TM-30-15 Gamut Index): 117 TLCI (Television Lighting Consistency Index): 56 CCT: 6500 Kelvin LED refresh rate - Standard Mode: 3600 Hz LED refresh rate - Theatre Mode: 19200 Hz

    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

    Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP 20
    Installation Mounting points: 2 x quarter‐turn fastener receptacles, 106.5 mm Location: Indoor use only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 0.5 m (1.7 ft.) Minimum distance to illuminated surfaces: 1 m (3.3 ft.) Minimum clearance around fan and air vents: 0.5 m (1.7 ft.)
    Connections AC power input/output: Neutrik PowerCON TRUE1 TOP DMX and RDM data in/out: Neutrik 5-pin locking XLR
  • Electrical

    AC power: 100-240 V AC nominal, 50/60 Hz
    Power supply unit: Auto-ranging electronic switch mode
    Typical half-cycle RMS inrush current at 240 V, 50 Hz: 8.7 A
    Power Factor: 0.99 @ 100 V / 120 V , 0.97 @ 220 V / 230 V / 240 V
    Typical current draw: 3.8 A @ 100 V / 120 V , 1.5 A @ 220 V / 230 V / 240 V *
    Power Consumption
    Typical: 315 W *
    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
    Typical: full output white, no effects moving, regulated fan speed.

    Thermal Cooling: Forced air (temperature regulated, low noise) Total heat dissipation (calculated): 1195 BTU/hr.
    *Calculated, +/- 10%, at full intensity, full white

    Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): -10° C (14° F)
    Acoustic Data Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 37.0 dB(A) Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 34.3 dB(A)
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 15.5 lm/W LWR*: 507 lm/kg (230 lm/lb)

    LWR = Lumen-to-Weight Ratio

    Approvals Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1) EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015; EN 55032; EN 55035; EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class B, ICES-005 Class B Australia/NZ: RCM United Kingdom: UKCA
    Included Items Safety and Installation Manual Martin Omega bracket for rigging clamp attachment : P/N 91602001
    Related Items Martin Companion Cable (for firmware update over DMX): P/N 91616091 Martin Companion Software (for firmware update over DMX): Free download from www.martin.com
    Accessories

    Power Input Cables
    Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797
    Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 5 m (16.4 ft.) P/N 91611786
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 5 m (16.4 ft.) P/N 91610174

    Power Linking Cables
    Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
    Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
    Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

    Power Connectors
    Power Connector, Cable Mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789HU
    Power Connector, Cable Mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788HU

    Installation Hardware
    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Half-coupler Clamp: P/N 91602005
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

    Ordering Information ERA 150 Wash in cardboard box: P/N MAR-90290000 ERA 150 Wash - White in cardboard box: P/N MAR-90290005
