RUSH PAR 4 UV

High Output static UV wash luminare

RUSH PAR 4 UV

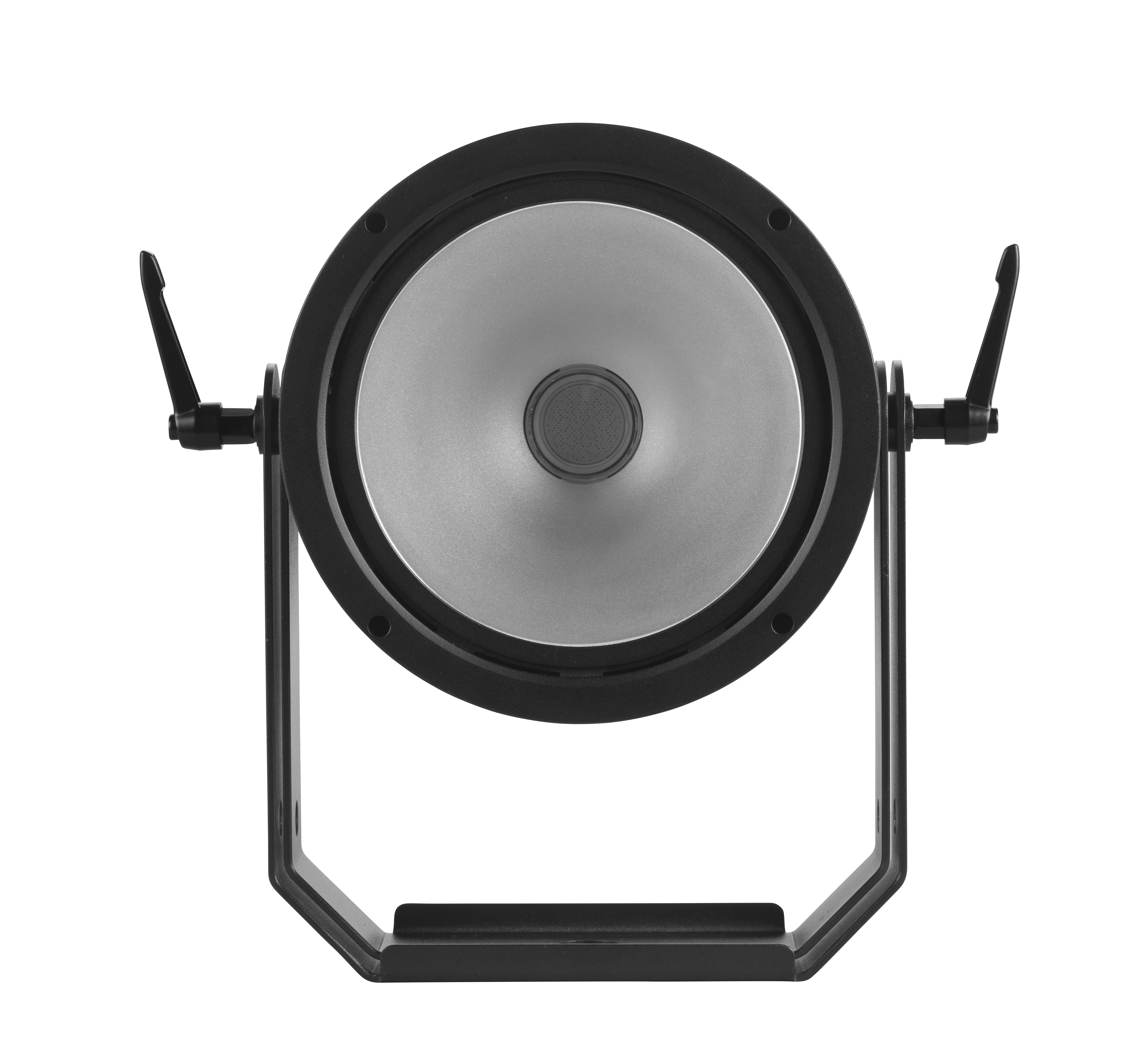

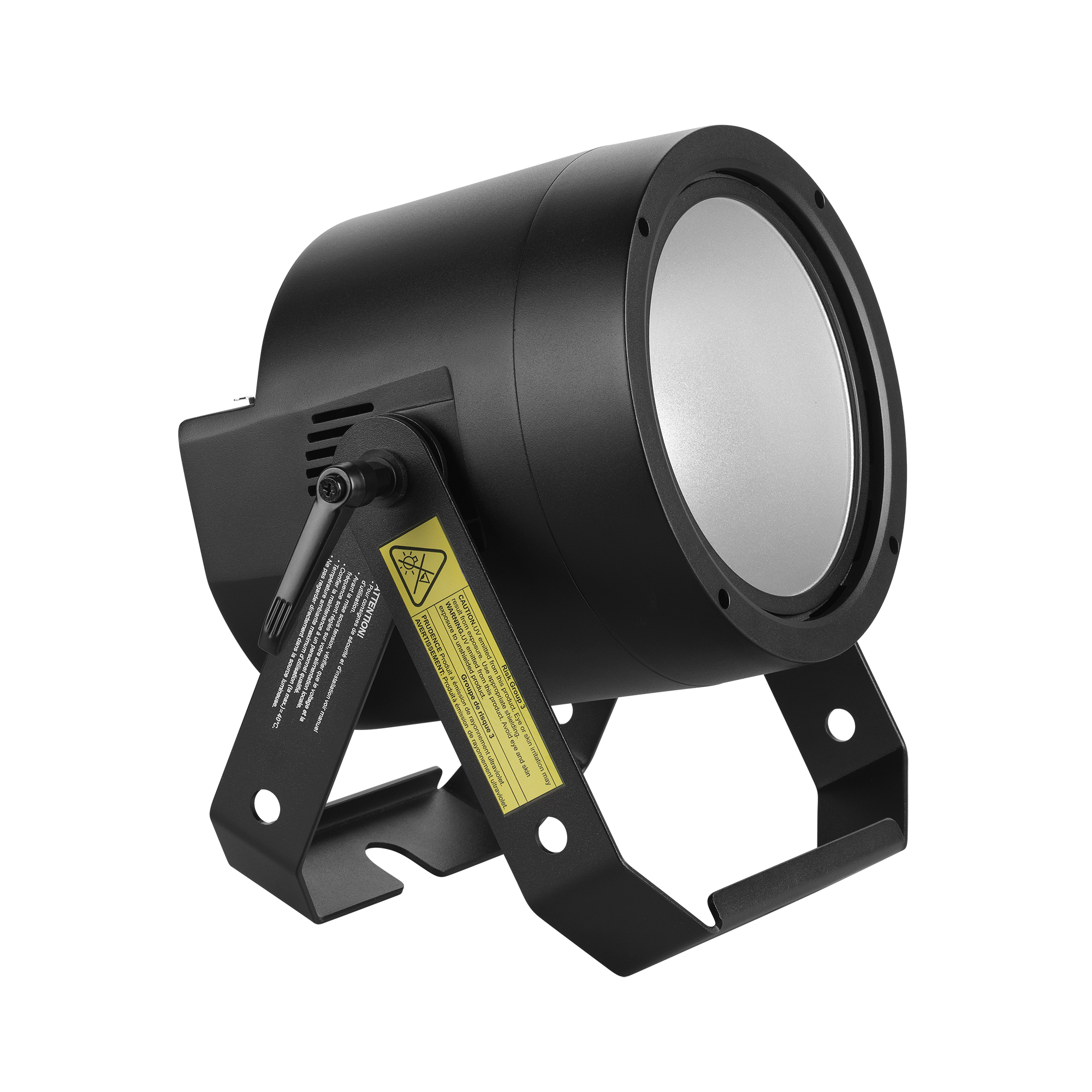

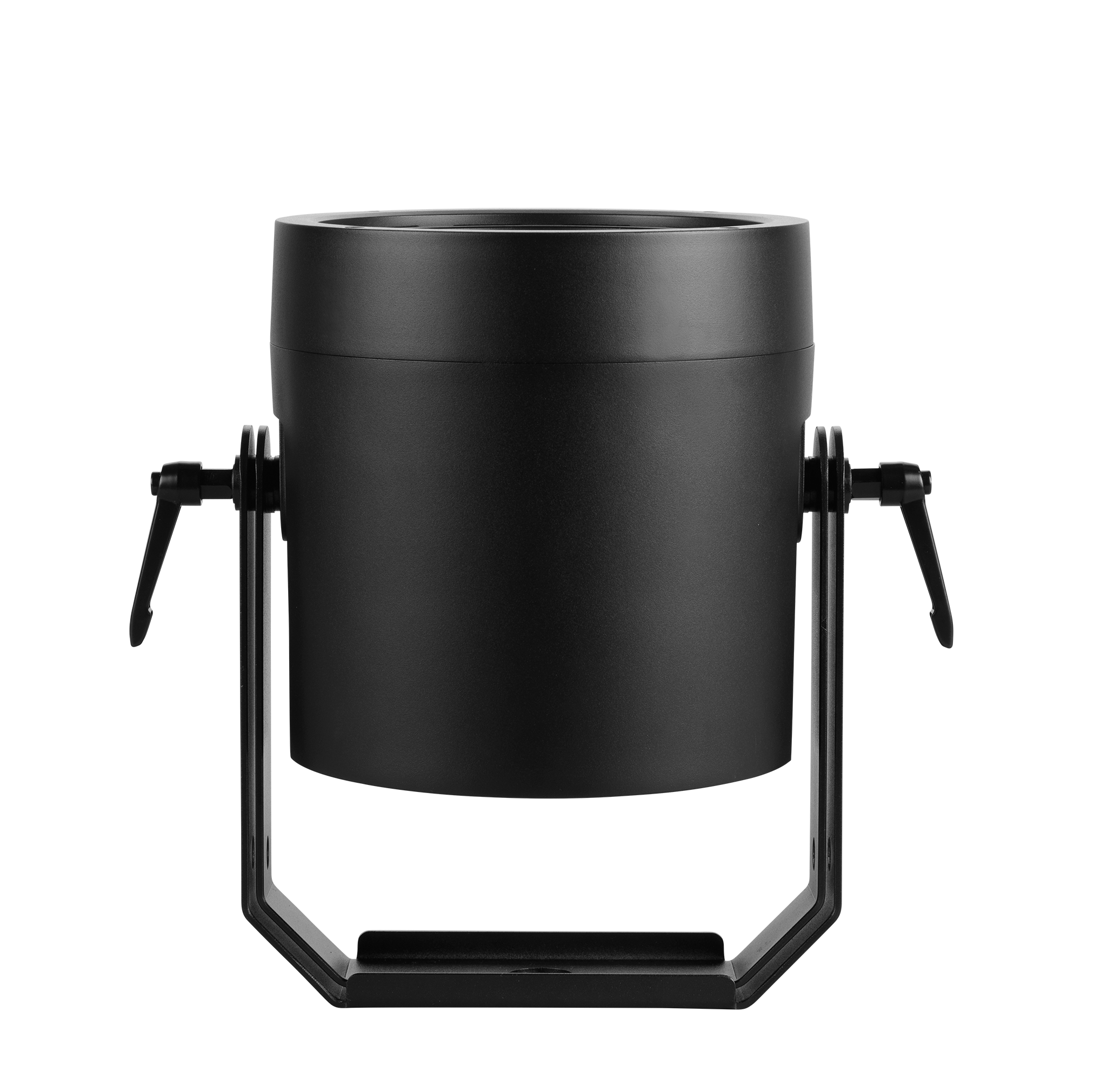

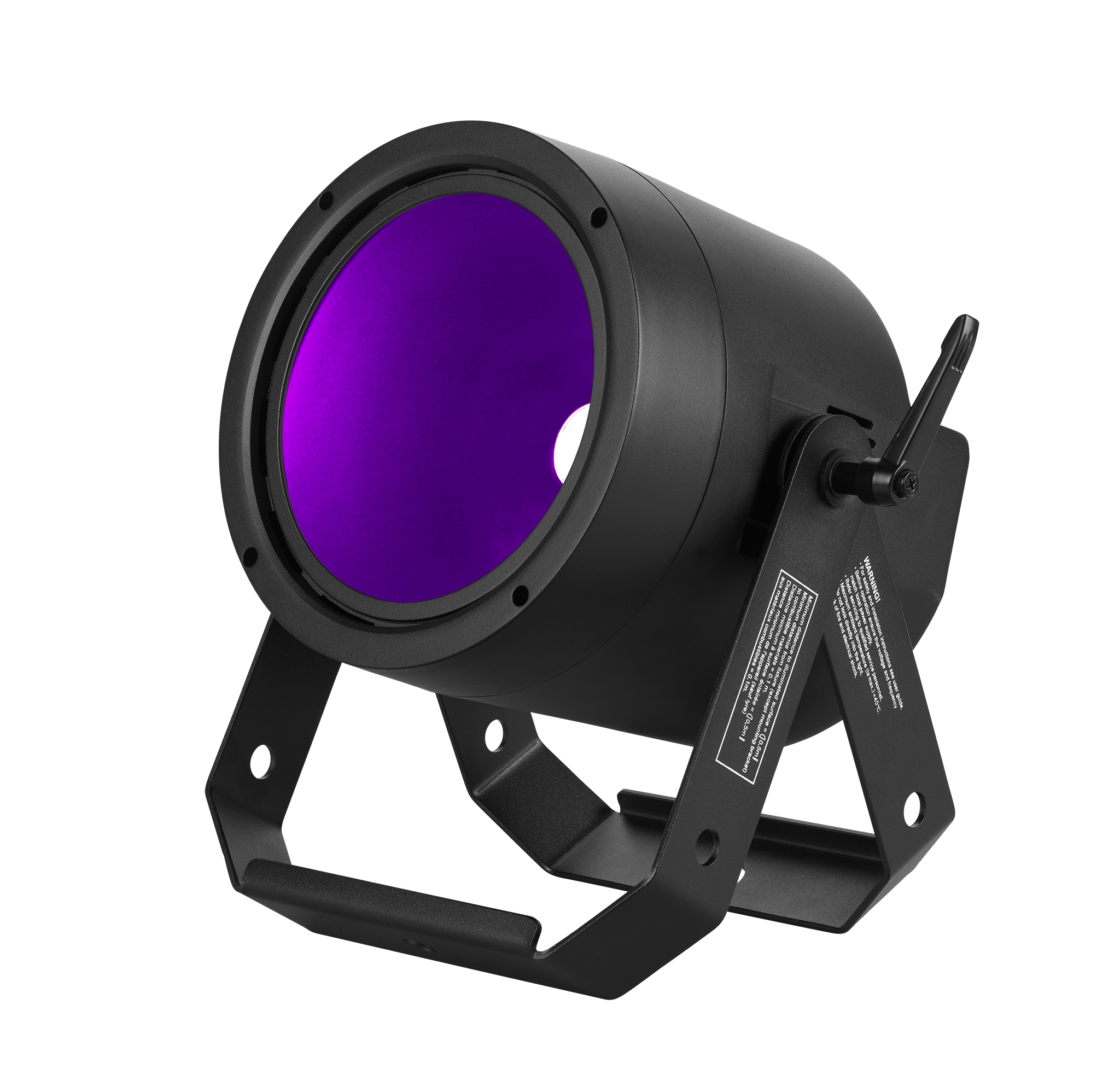

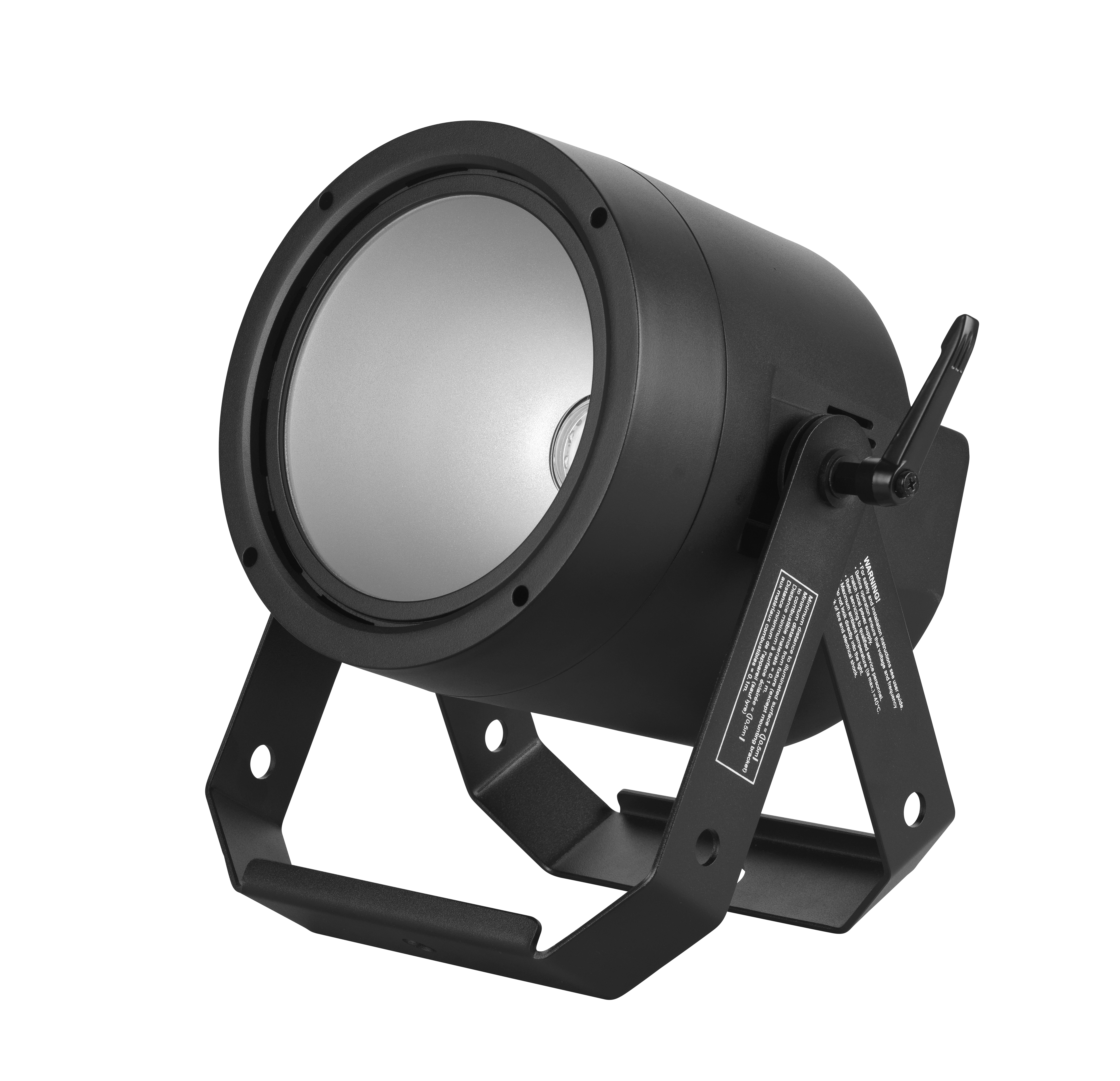

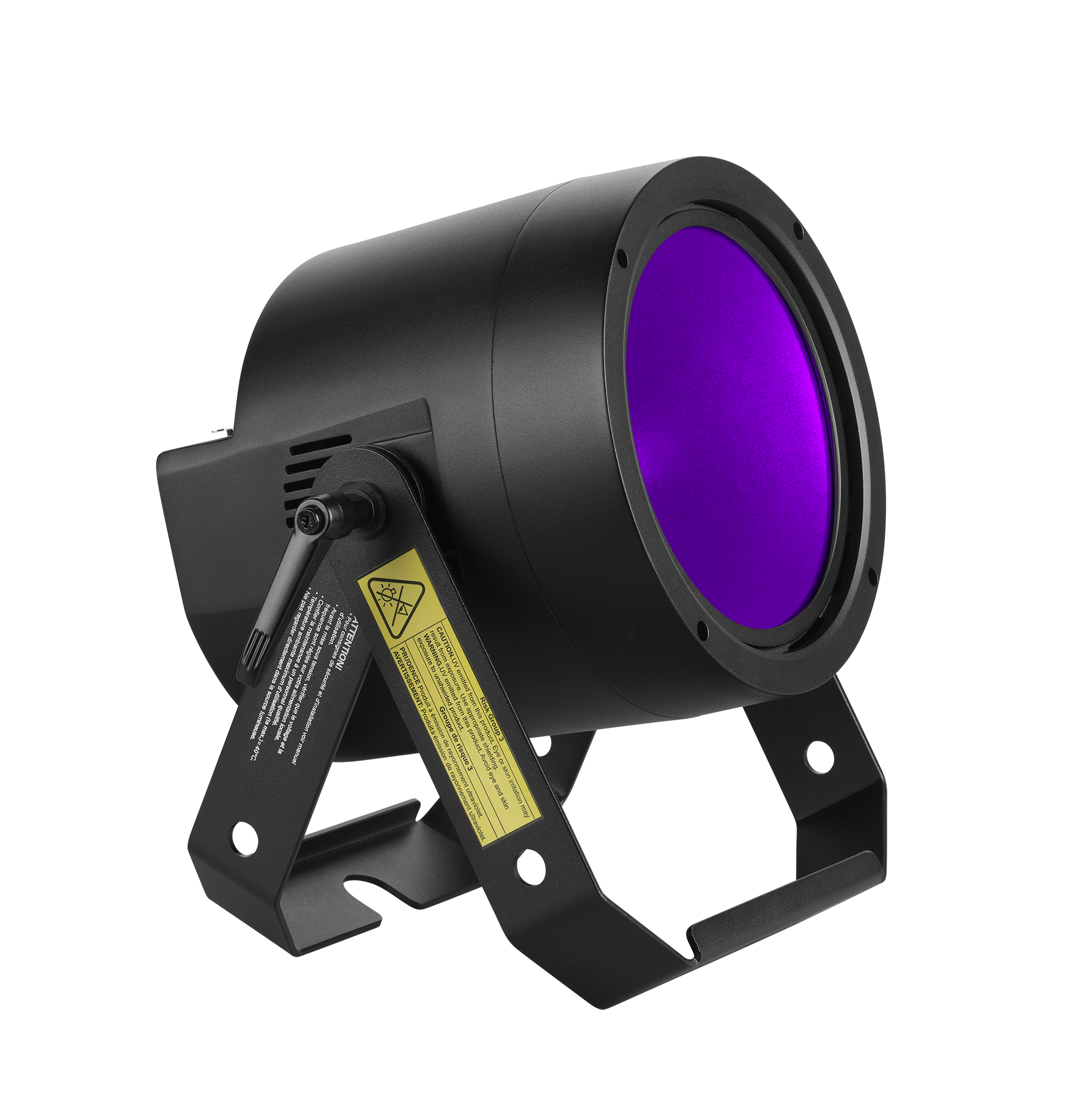

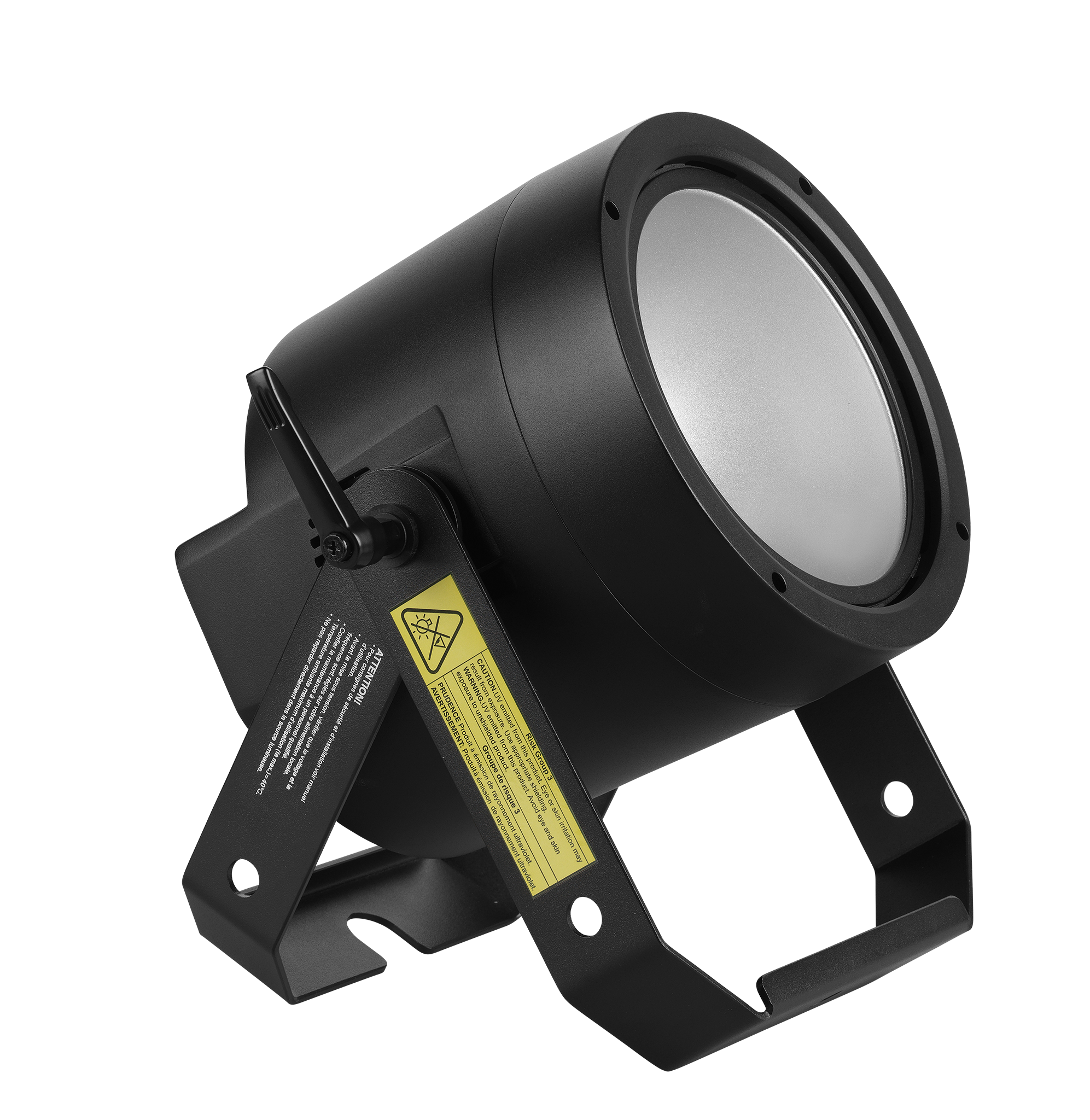

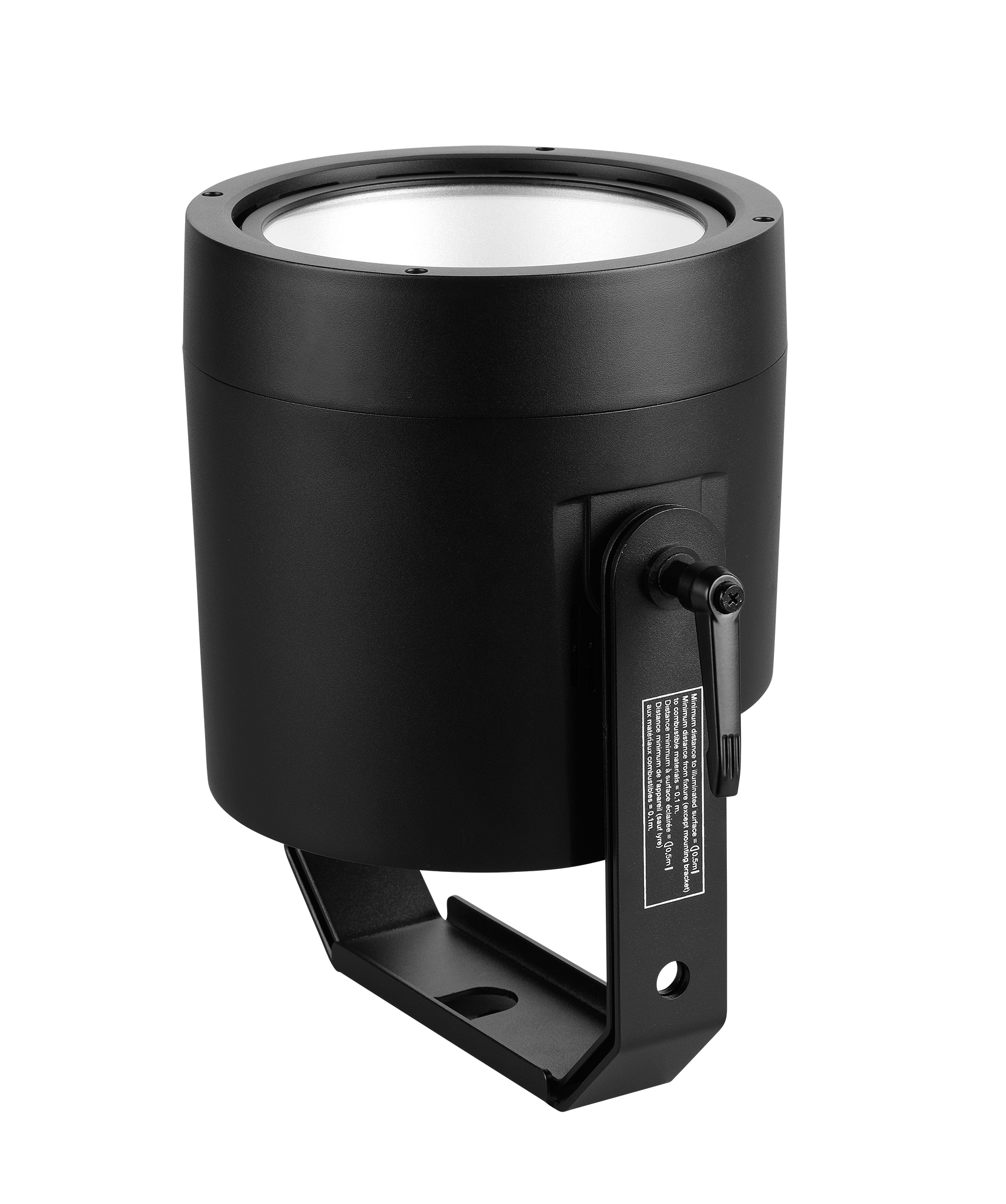

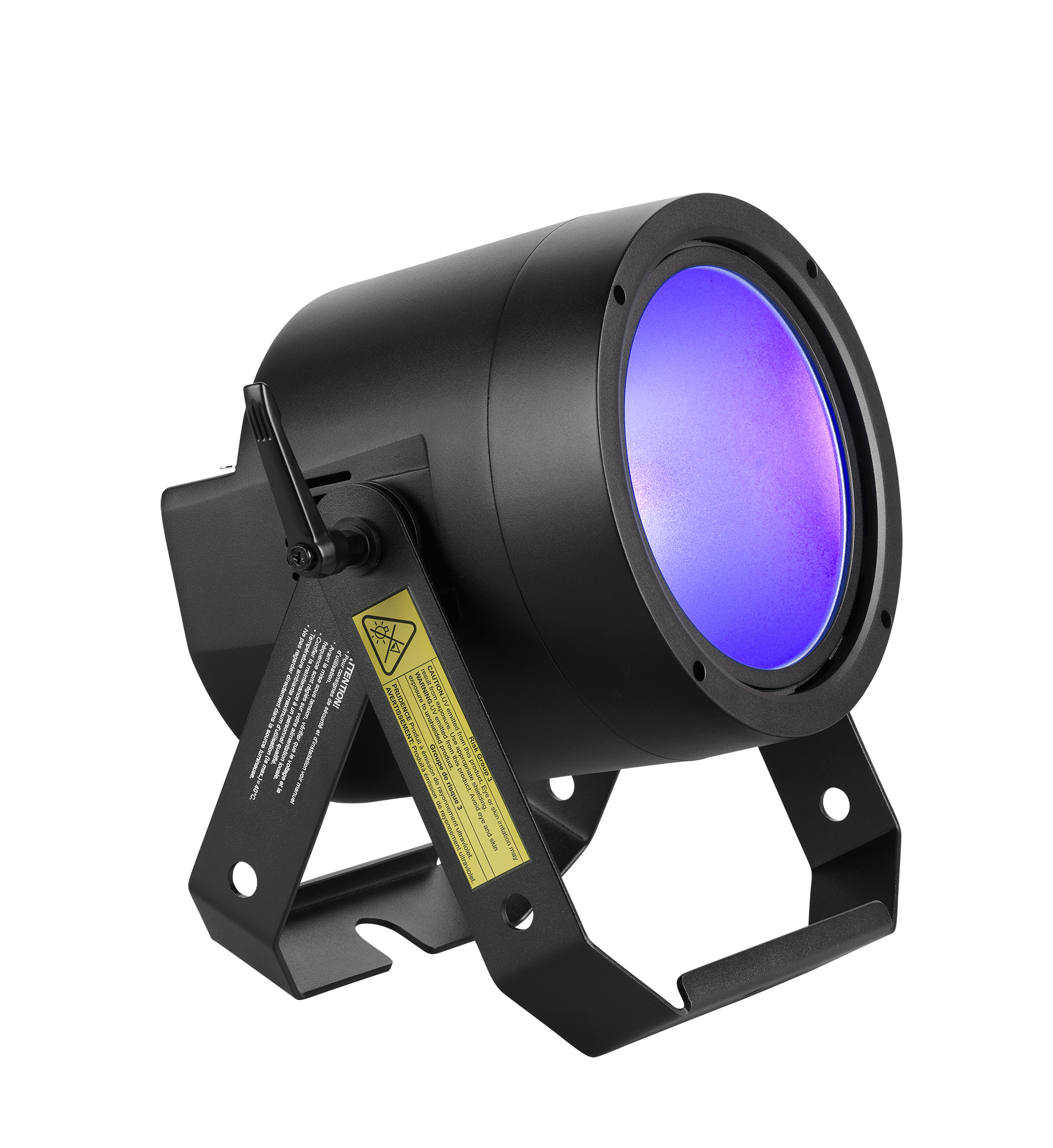

The RUSH PAR 4 UV is a bright single-lens UV LED PAR can light fixture for use in blacklight applications. The fixture includes a 100 watt COB 400nm UV LED mounted in a reflector for high-output ultraviolet light, and has regulated air cooling for quiet operation. With electronic dimming and strobe and a bracket suitable for floor or truss mounting, the RUSH PAR 4 UV is ideal for a variety of nightlife, stage, and concert applications.

  • Single-lens 100W UV LED PAR
  • Electronic dimming and strobe

Features

  • 100 watt COB 400nm UV LED
  • Forced air cooling for quiet operation
  • Electronic dimming and strobe
  • Bracket suitable for floor or truss mounting
  • Lightweight construction (4 kg / 8.8 lbs.)

Specifications

  • Physical Length: 327 mm (12.8 in.) Width: 312 mm (12.3 in.) Height: 207 mm (8.1 in.) Weight: 4 kg (8.8 lbs.)
    Dynamic Effects Dimming: 0 – 100%, coarse & fine control Shutter: Strobe & pulse effects, instant open and blackout

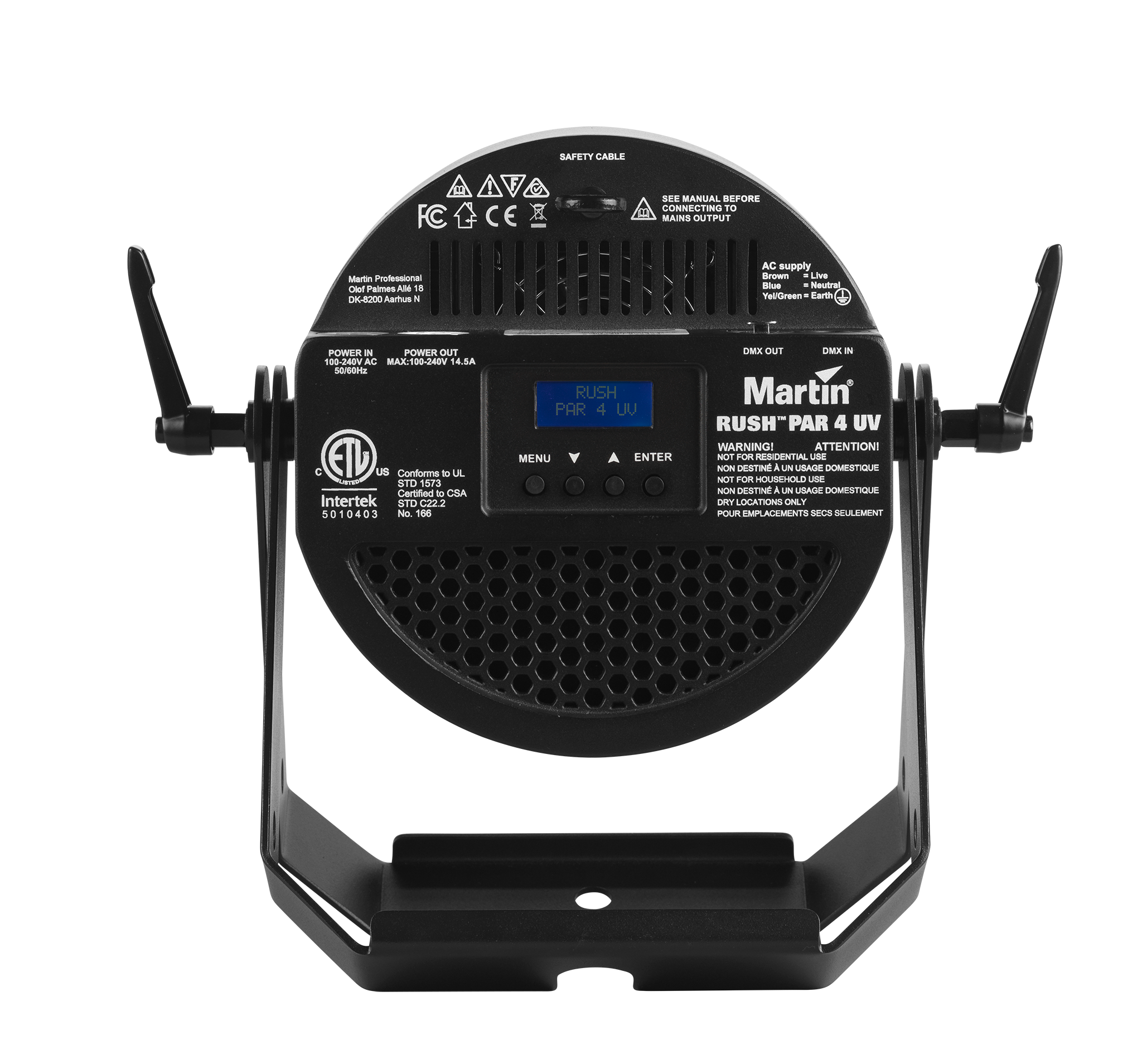

    Control and Programming Control systems: USITT DMX512/1990 with RDM DMX channels: 3 RDM compliance: ANSI/ESTA E.120 Interface: Control panel with backlit LCD display
    Photometric Data

    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

    Construction Housing: Cast aluminum Color: Black Protection rating: IP20
    Installation Mounting points: Adjustable bracket, surface or truss mount Location: Indoor location only Orientation: Any Minimum distance to combustible materials: 0.1 m (4 in.) Minimum distance to illuminated surfaces: 0.5 m (20 in.)

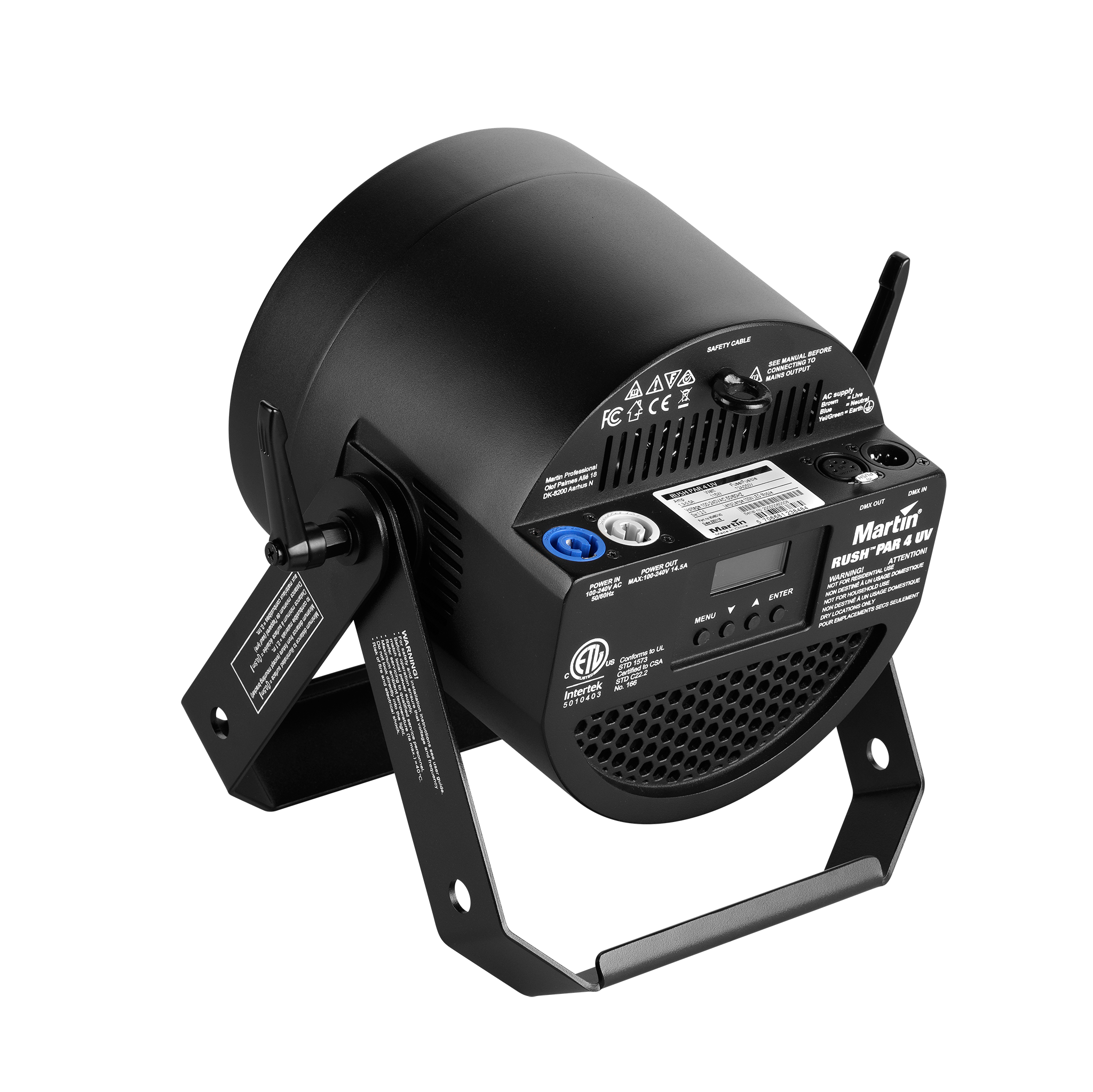

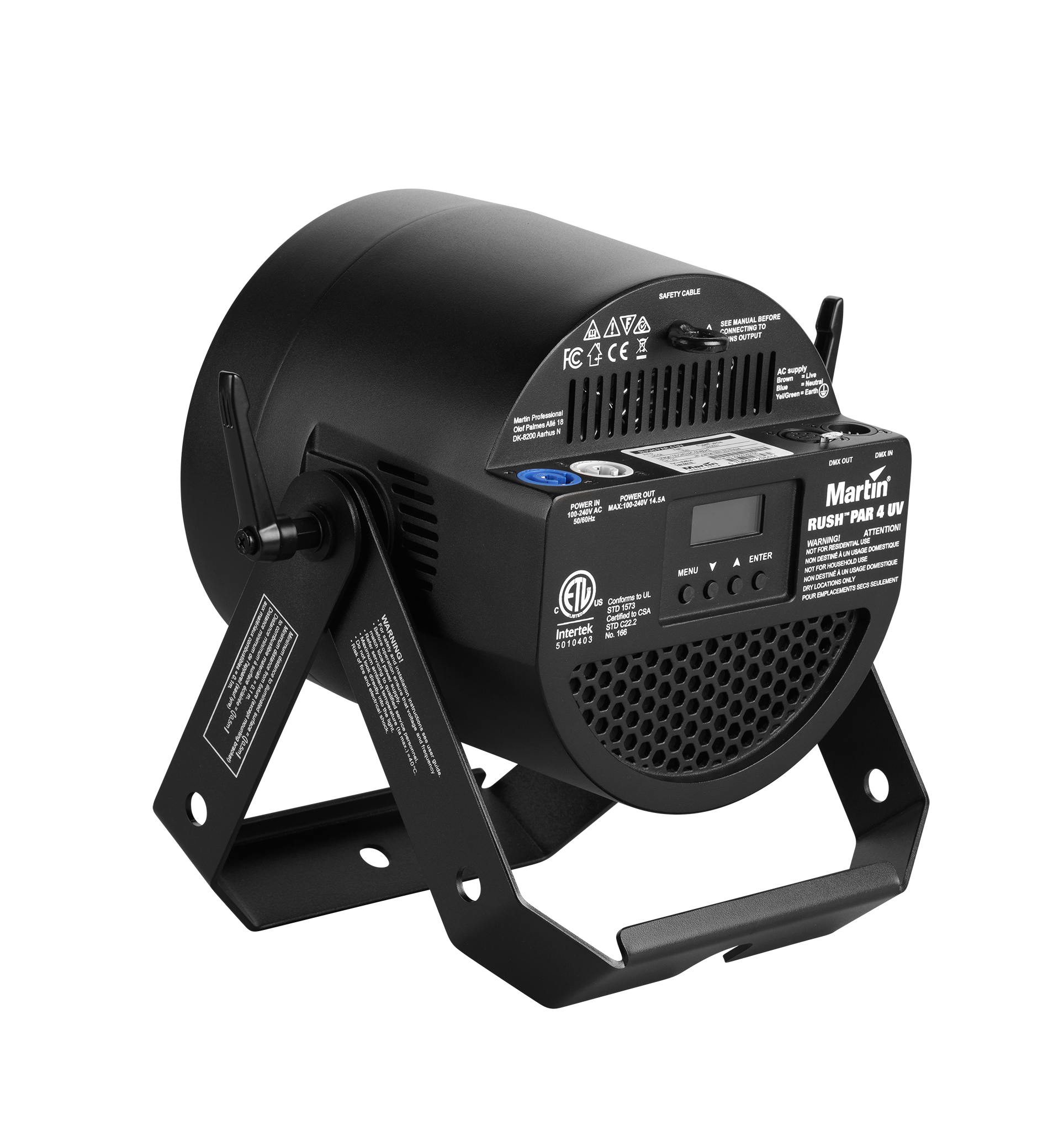

    Connections AC power input/output: Neutrik PowerCon DMX/RDM in/out: 5-pin locking XLR RUSH PAR 4 UV User Manual 31
    Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch mode Typical half-cycle RMS inrush current: 11.2 A Recommended Miniature Circuit Breaker when power linking: Type D* Maximum total power consumption: 114 W *Per IEC 60898/UL489/CSA C22.2 No. 5
  • Typical Power and Current 100 V, 60 Hz: 114 W, 1.2 A, PF 1.000 120 V, 60 Hz: 114 W, 1.0 A, PF 0.996 230 V, 50 Hz: 114 W, 0.5 A, PF 0.933 Measurements made at nominal voltage. Figures are typical, not maximum, allow for a deviation of +/- 10%.
    Thermal Cooling: Forced air, temperature-regulated Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 0° C (32° F)
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant
    Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: 47 CFR 15 Class A Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class A Australia/NZ: RCM
    Included Items Power cable, 1.5 m without mains plug
    Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com
    Accessories Power connectors:

    Power Connector PowerCON Male: P/N 91611795
    Power Connector PowerCON Female: P/N 91611794

    Cables, 16 A, for connection to power in chains:

    Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
    Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
    Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
    Power relay cable 3 x 14 AWG,SJOOW POWCON-POWCON 2.5m (8.2 ft.): P/N 91610176

    Cables, 16 A, for power input:

    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
    (H07RN-F are European approved cables, SJOOW are US approved cables)

    Installation hardware:

    Half-coupler clamp: P/N 91602005
    G-clamp (vertical hanging suspension only): P/N 91602003
    Quick-trigger clamp (vertical hanging suspension only): P/N 91602007

    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604007 Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604006
    Ordering Information RUSH PAR 4 UV in cardboard box: P/N 90480140

Downloads

  Version Language Size Uploaded
Specifications
file type icon RUSH PAR 4 UV Spec Sheet-English
en updated: Jul 2018
  en  647 KB Jul 2018
Manuals
file type icon RUSH PAR 4 UV - Manuel d 'utilisation
fr version B, updated: May 2018
fr  829 KB May 2018
file type icon RUSH PAR 4 UV - User Manual
en version B, updated: Jul 2020
en  992 KB Jul 2020
file type icon RUSH PAR 4 UV - Bedienungsanleitung
de version B, updated: Jul 2020
de  786 KB Jul 2020
Illustrations
file type icon RUSH PAR 4 UV - 2D dimensions.PDF
en version A, updated: May 2018
en  1.69 MB May 2018
file type icon RUSH PAR 4 UV - 2D dimensions.DWG
en version A, updated: May 2018
en  7.89 MB May 2018
CAD Drawings
file type icon RUSH PAR 4 UV - 3D dimensions.3DS
en version A, updated: May 2018
en  3.04 MB May 2018
file type icon RUSH PAR 4 UV - 3D dimensions.DWG
en version A, updated: May 2018
en  2.06 MB May 2018
Compliances
file type icon RUSH PAR 4 UV - Listing Verification
en version A, updated: May 2018
en  252 KB May 2018
file type icon RUSH PAR 4 UV - Déclaration de Conformité
fr version A, updated: May 2018
fr  167 KB May 2018
file type icon RUSH PAR 4 UV - Declaration of Conformity
en version A, updated: May 2018
en  162 KB May 2018
Service Notes
file type icon 3D Partsfinder - Opening using Solid Works Composer Player
version 4, updated: Oct 2020
  743 KB Oct 2020
Firmware
platform icon RUSH PAR 4 UV - Firmware
version 1.3.0, updated: Jan 2024
1.3.0     Jan 2024
