P3 System Controller



The Martin P3 Family of Controllers and supporting P3 Software Update 6.0.0 is specially designed to be the ultimate control solution for creative lighting. Together they enhance and maximize the creative potential of Martin’s P3 enabled fixtures. Performance is optimized and workflows are simplified with MVR import/export. Martin’s next generation of P3 tools are tuned specifically for Martin fixtures unveiling limitless potential.

P3 Controller Software Update 6.0.0 improves workflows and saves time for anyone working with P3-enabled Martin fixtures. The software makes video-mapping of creative LED fixtures through the P3 System Controller incredibly easy and flexible. Custom content creation is simplified with the ability to export a mask of mapped fixtures.

The new user interface has been redesigned to be especially modern, ergonomic, smooth, and responsive. It also includes better support for darkened front of house or other performance-monitoring environments.

How Martin P3 Visual Control Leads the Industry

MIX DMX AND VIDEO CONTROL

Gives the lighting designer the freedom to create unique looks by entering parameters or by sending content to fixtures to ultimately create the ideal look that the designer envisions.

TIME-SAVING MVR INTEGRATION

Mapping and patches can be exported to third-party lighting consoles, visualizers and CAD programs. There is no need to re-create a system repeatedly using different software packages.

REMOTE ADDRESSING AND SETTING

Eliminates the need to physically access fixtures to address and configure each one locally via the display.

REAL-TIME MONITORING

Offers a complete view of your entire system to diagnose any issues.

SYSTEM-WIDE SYNCHRONIZATION

Deliver perfect performance across the entire system, without visible lag and latency issues.

LIVE PREVIEW

Visualize results during pre-programming without connecting actual fixtures.

  P3-050 System Controller P3-150 System Controller P3-175 System Controller P3-275 System Controller P3-300 System Controller P3-PC System Controller
Video Input 1x DVI-D up to 1920x1080 1x DVI-D up to 1920x1080 1x HDMI up to 1920x1080
1x NDI up to 1920x1080
1x HDMI up to 4096x2160
1x NDI up to 4096x2160
1x DVI-D up to 1920x1080
2x SDI up to 3G-SDI
1x Genlock
NDI, Screen-capture or Media Server Integration
DMX Input 1 universe DMX
128 universes Art-Net / sACN
1 universe DMX
128 universes Art-Net / sACN
256 universes Art-Net / sACN 1024 universes Art-Net / sACN 1 universe DMX
64 universes Art-Net / sACN
256 universes Art-Net / sACN
P3 Output 1 network with up to 100.000 pixels worth of fixtures
Maximum 2.000 fixtures
1 network with up to 520.000 pixels worth of fixtures
Maximum 2.000 fixtures
1 network with up to 520.000 pixels worth of fixtures
Maximum 2.000 fixtures
2 networks with up to 1.040.000 pixels worth of fixtures
Maximum 6.000 fixtures
4 networks with up to 2.080.000 pixels worth of fixtures
Maximum 2.000 fixtures
1 network with up to 20.736 pixels worth of fixtures
Maximum 2.000 fixtures
Form-Factor 1U 19” rackmount 1U 19” rackmount 1U 19” rackmount 2U 19” rackmount 2U 19” rackmount Software installed on customer-supplied Windows computer
Remote Management Yes, internal webpages and syslog Yes, internal webpages and syslog Yes, internal webpages and syslog Yes, internal webpages and syslog Yes, internal webpages and syslog No

Please consult P3 System Controller Capacity Info Note for more details

PRODUCTS

Videos

  •



  •



  •



SYSTEM DIAGRAMS

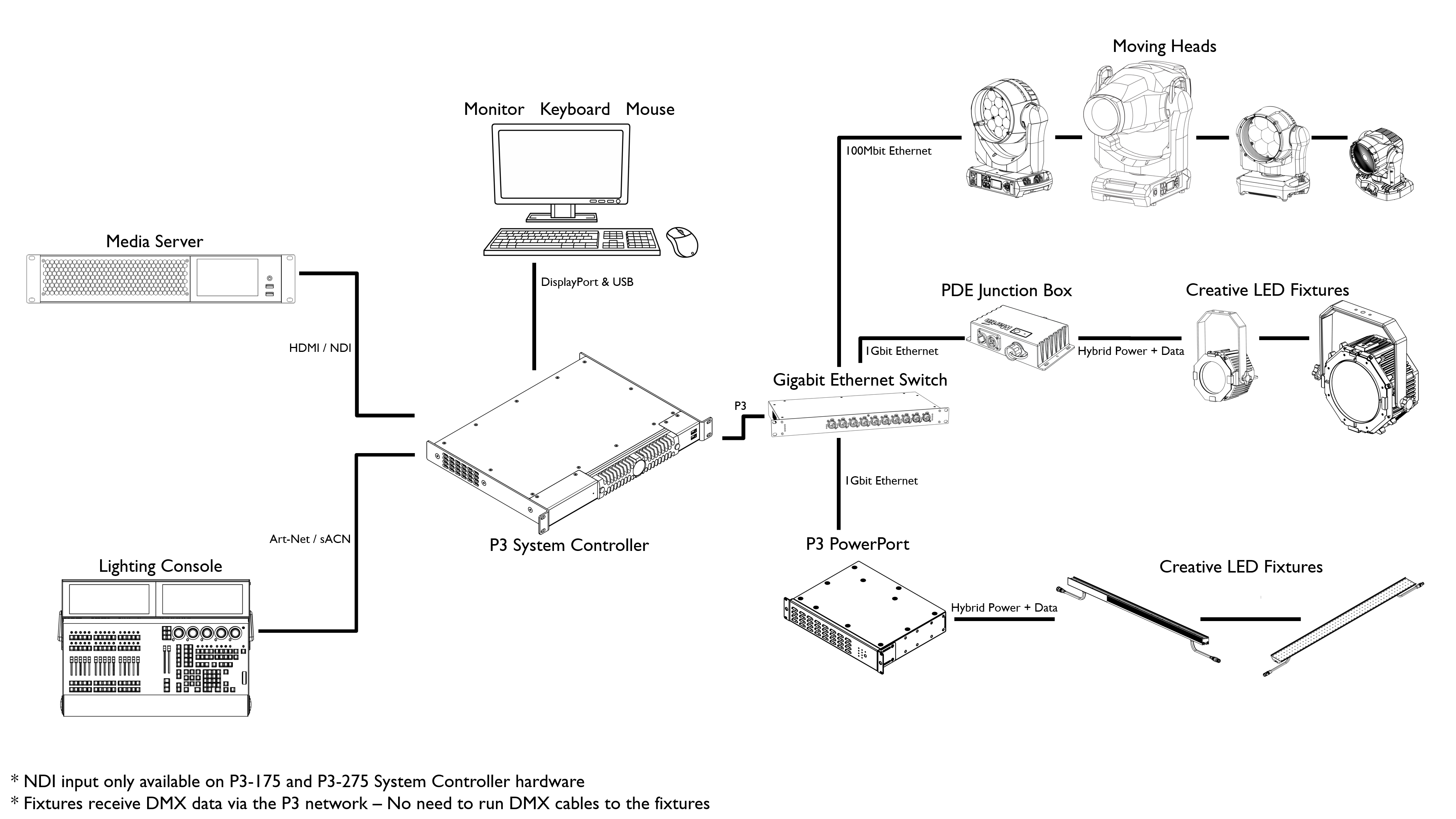

P3 IN ENTERTAINMENT APPLICATIONS

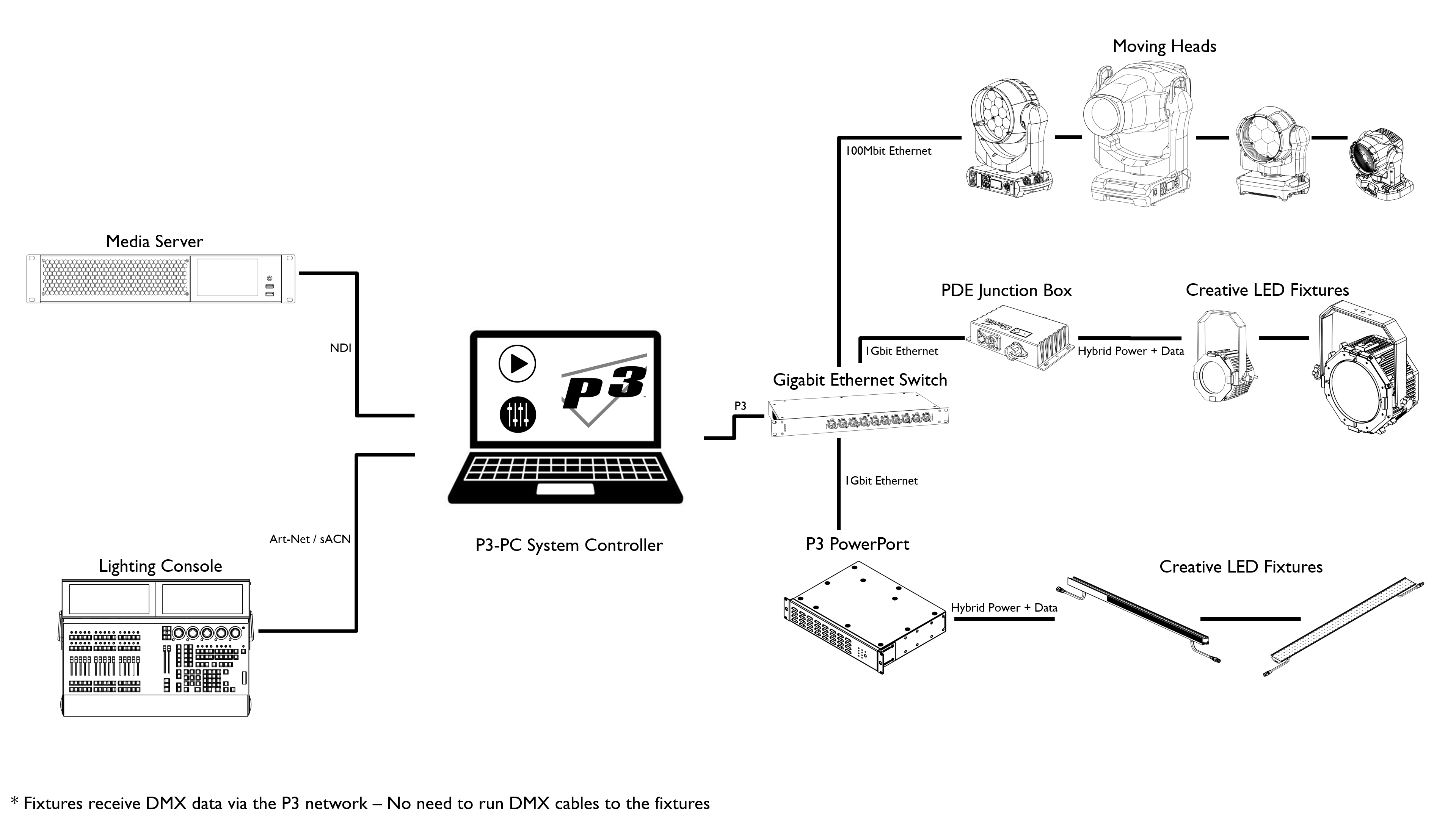

P3-PC IN ENTERTAINMENT APPLICATIONS

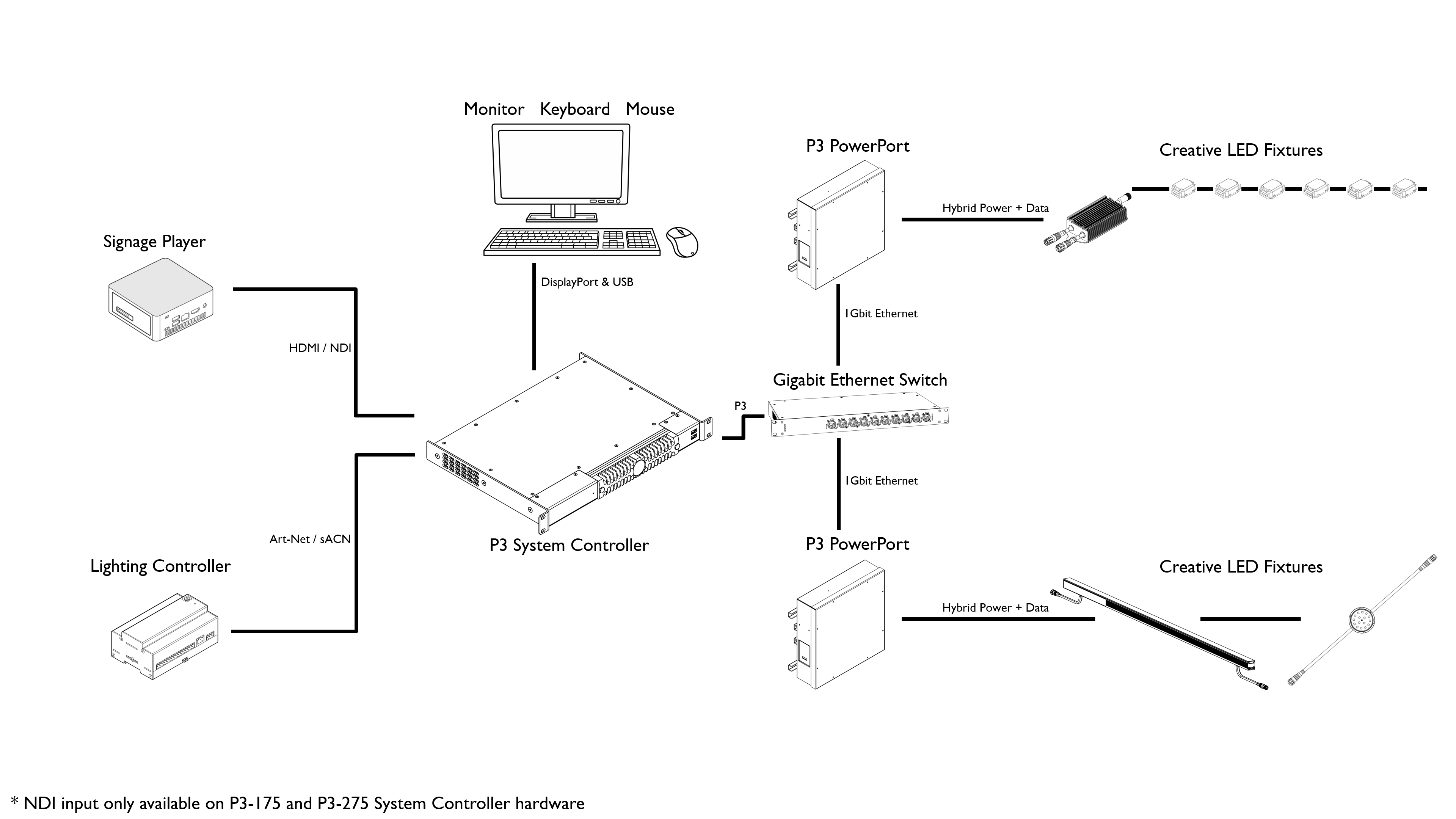

P3 IN ARCHITECTURAL APPLICATIONS
