MAC Quantum Profile

Bright white LED spot with quick and precise CMY color mixing

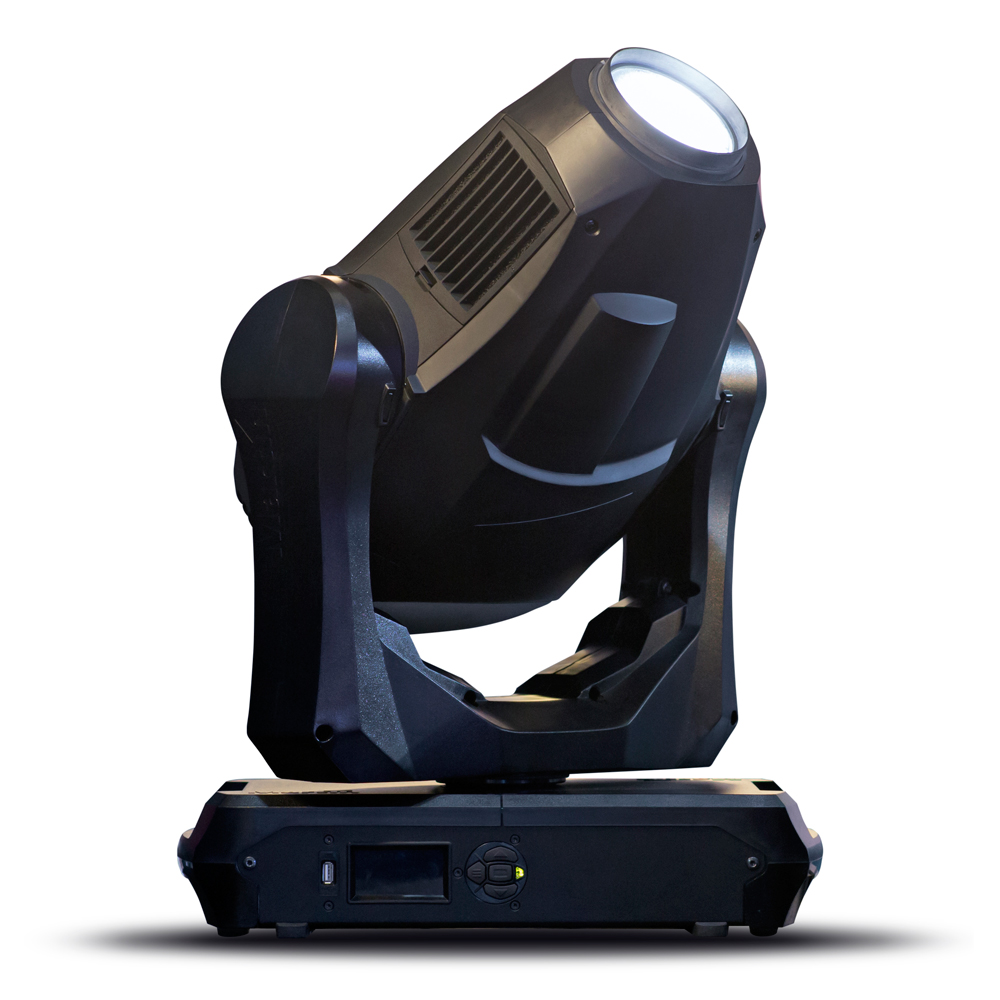

MAC Quantum Profile

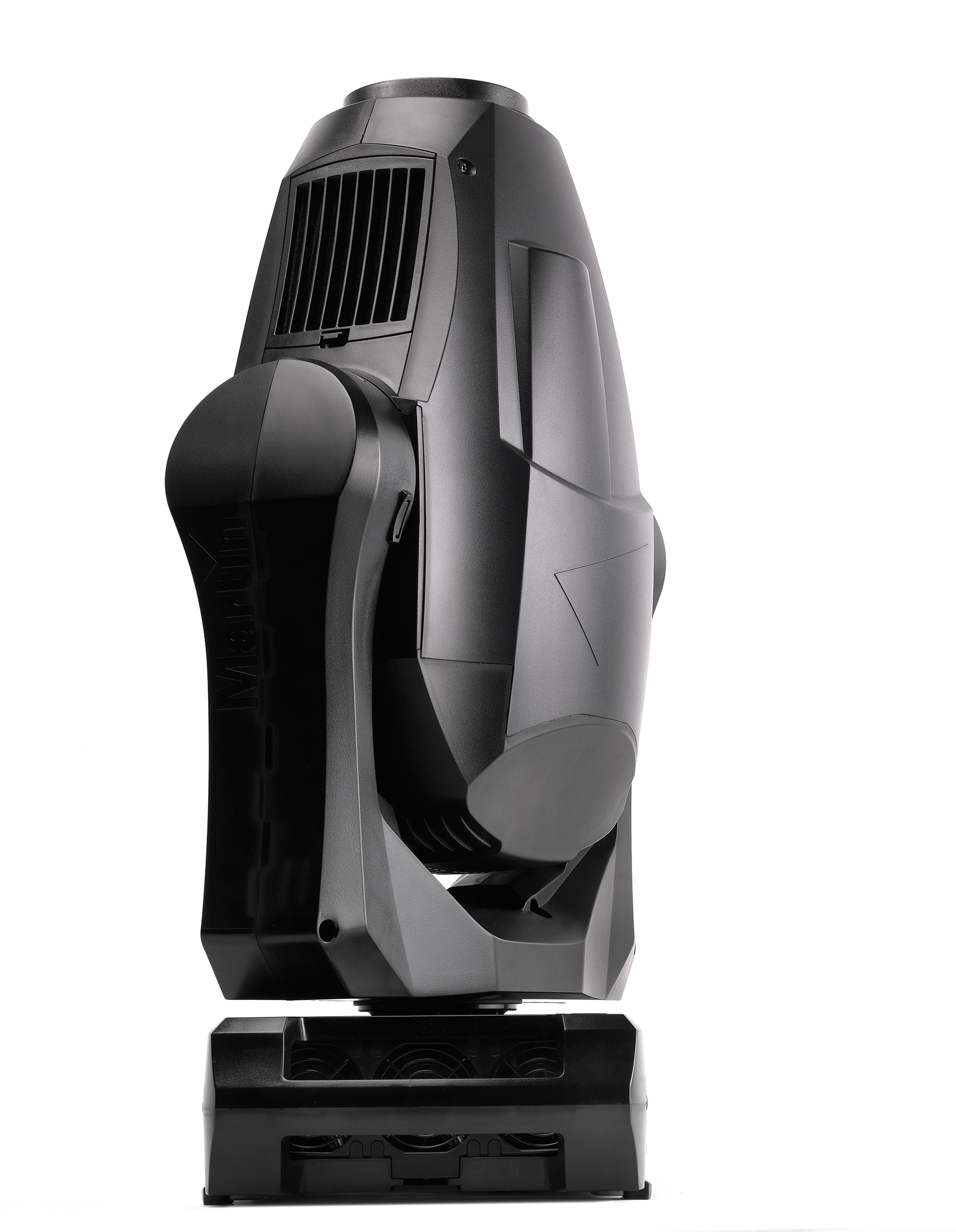

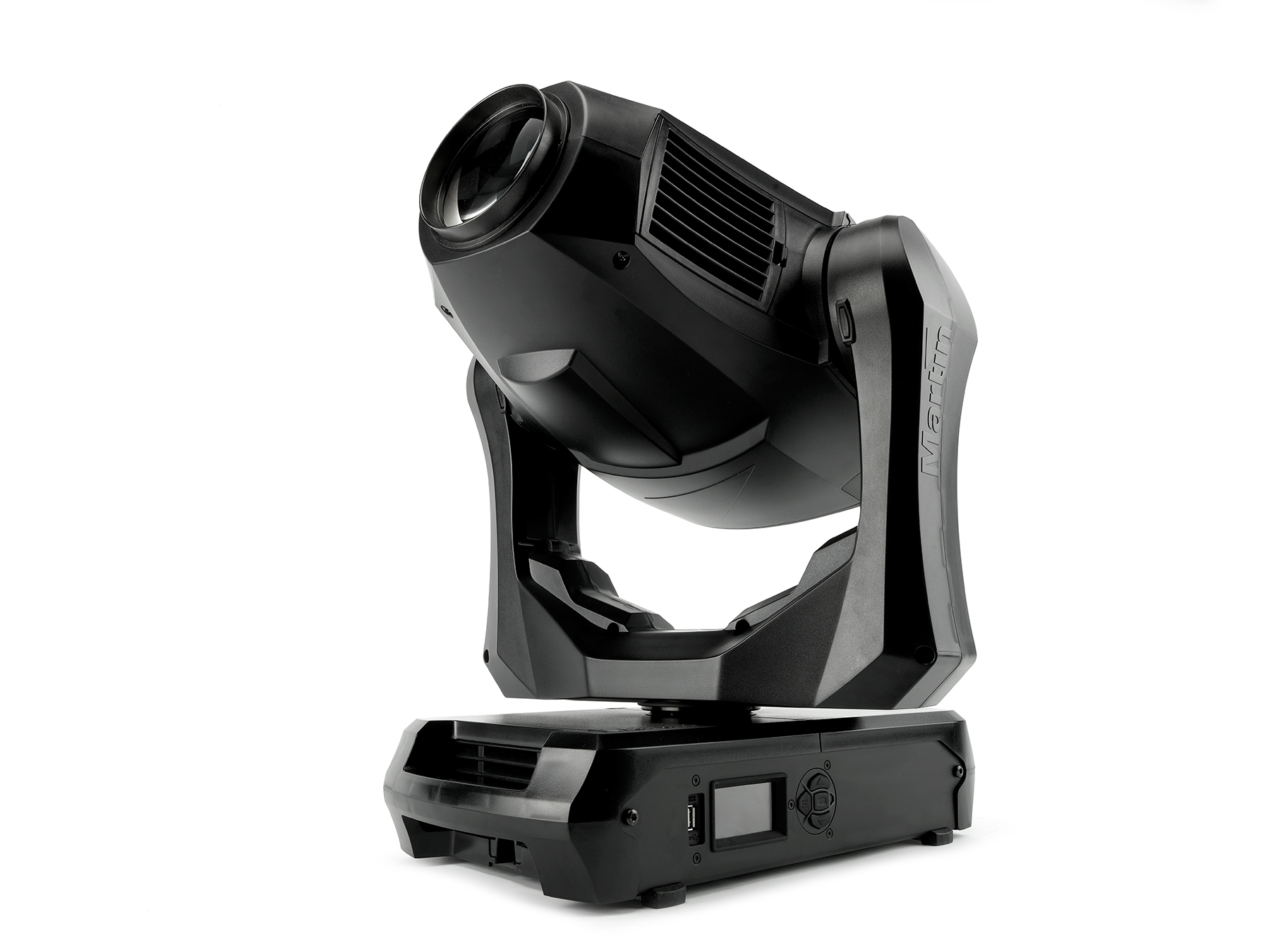

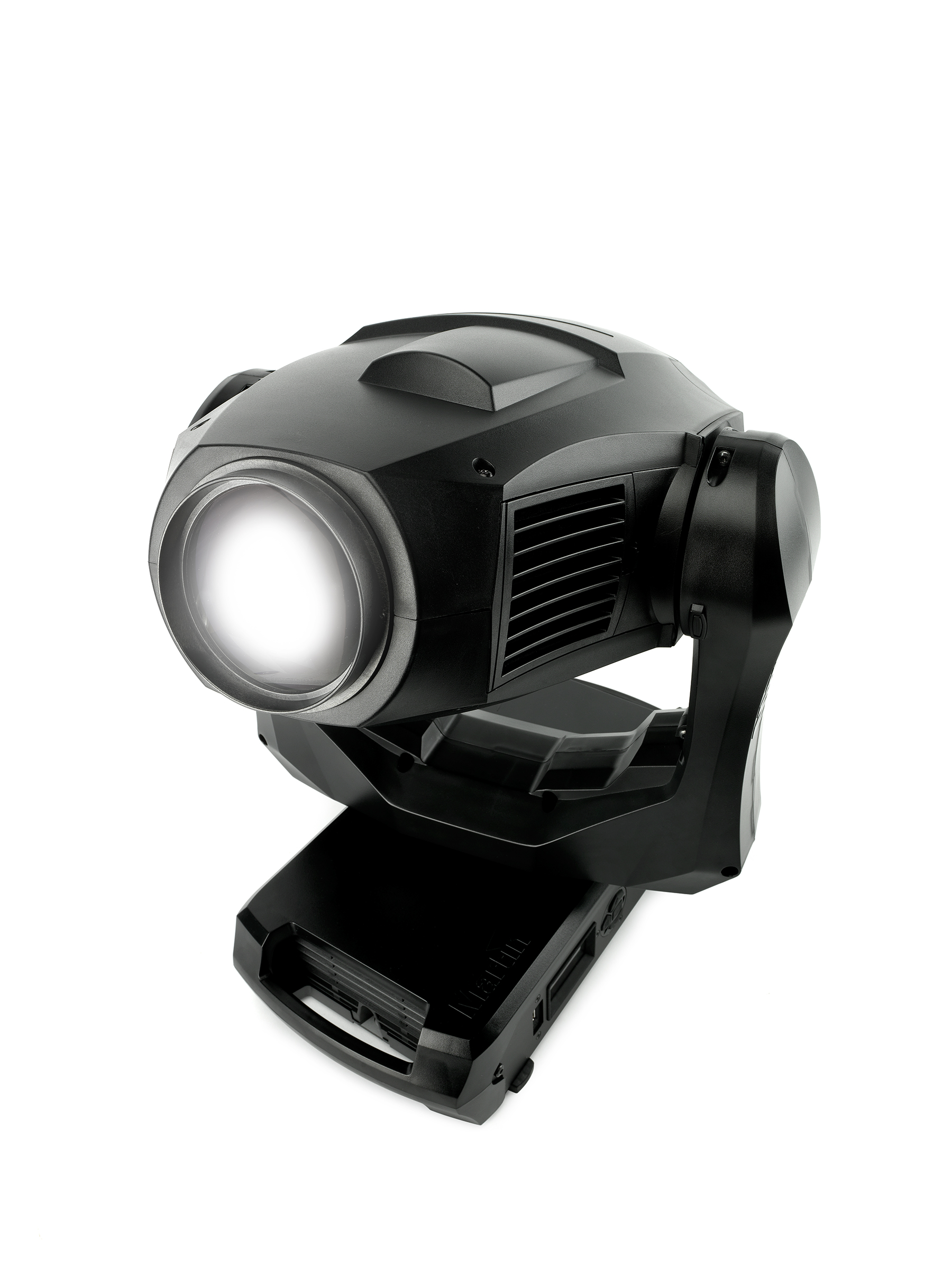

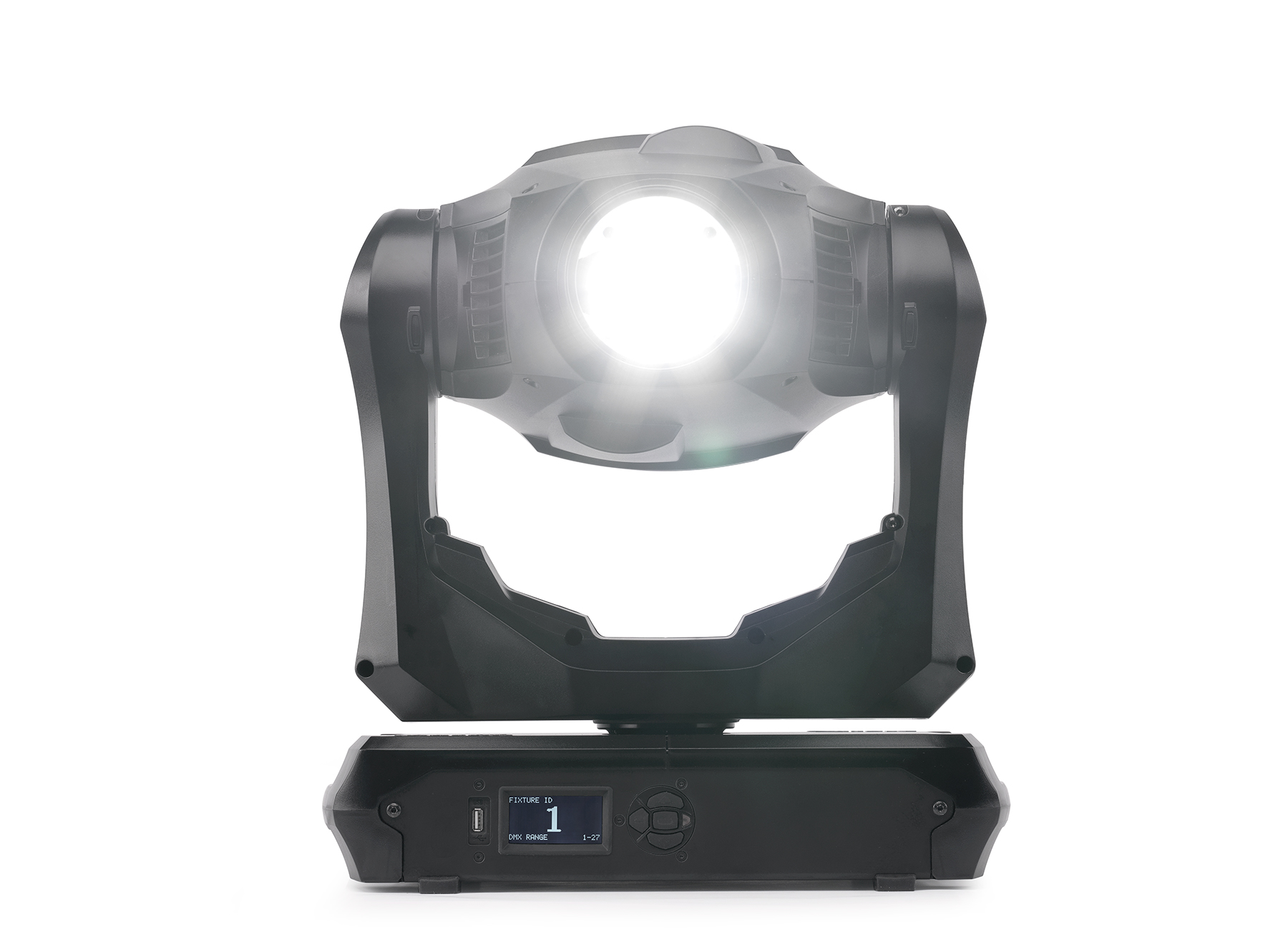

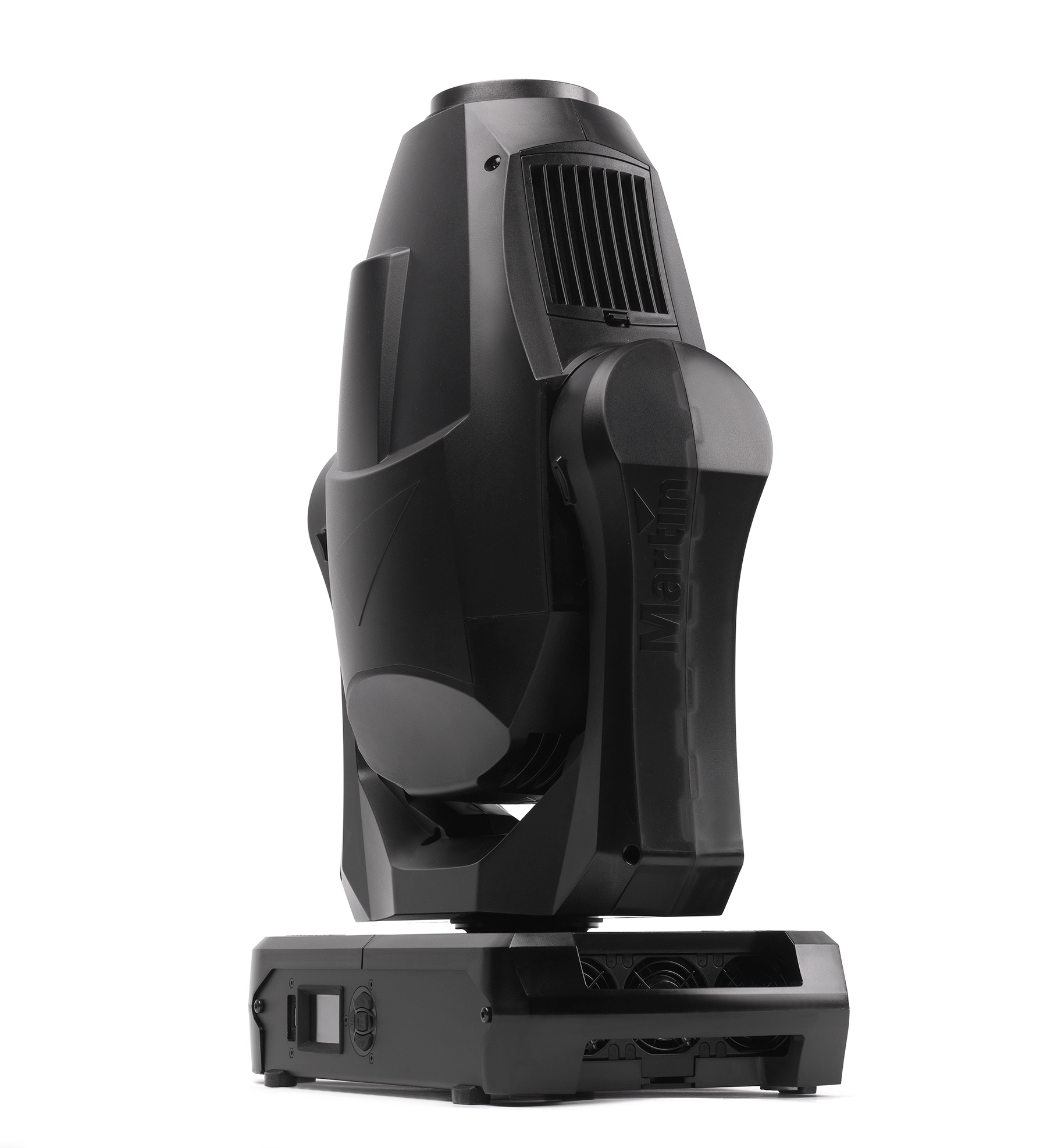

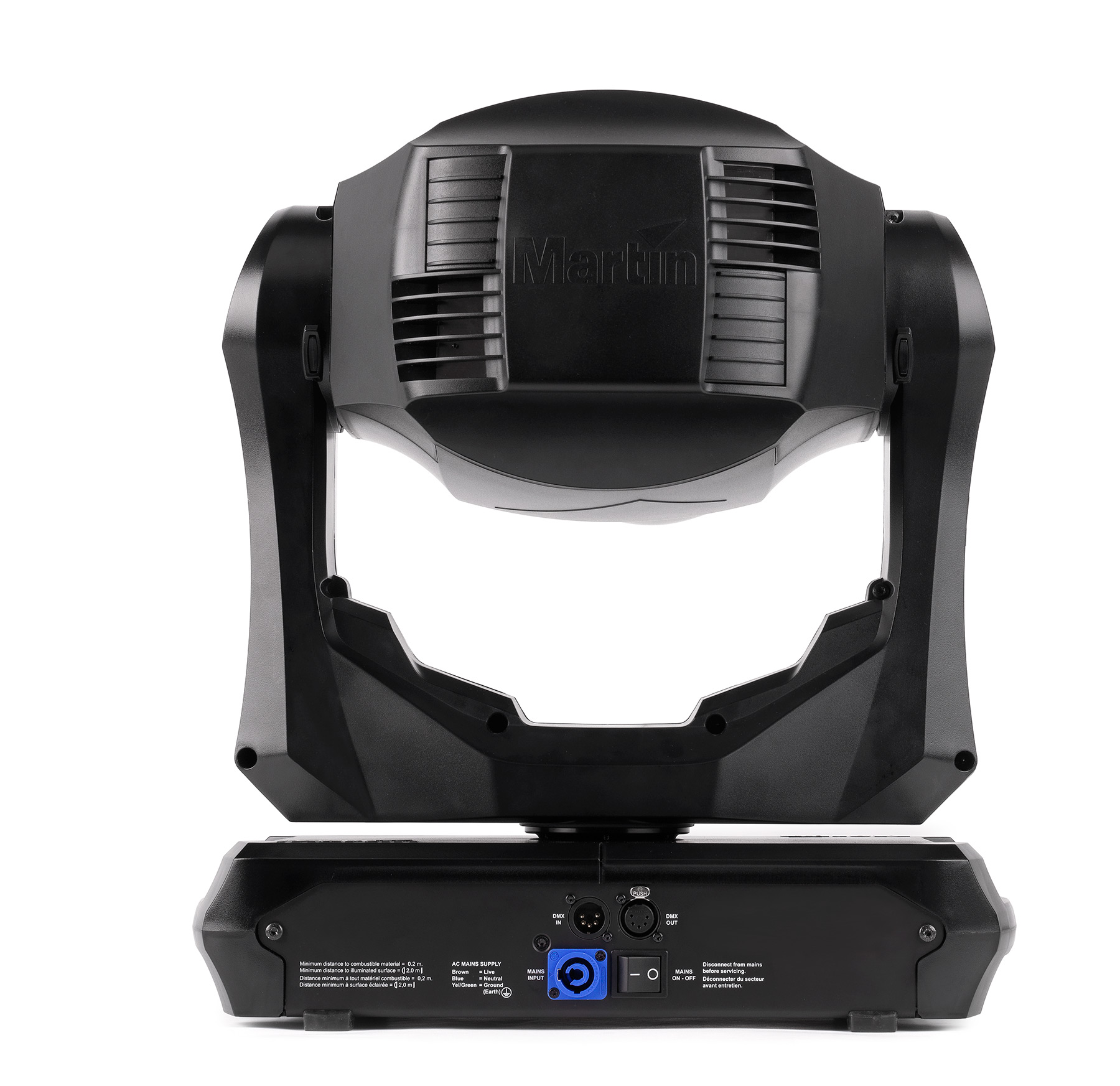

Larger Images

This extremely bright LED profile fixture combines top-quality white light with a fast, smooth CMY color mixing system and crisp gobo projection on surfaces as well as mid-air.

With all this and the new Animotion™ FX system that allows never-before seen beam animations, the market is now finally seeing the first real 700/800 W discharge lamp replacement in a profile fixture that effectively harnesses cutting-edge LED technology.

  • First real alternative to a 700/800 watt HID fixture
  • Flat field, crisp image, high contrast
  • Full feature set including CMY color mixing and 1:3 zoom

Videos

















Features

  • First real alternative to a 700/800 watt HID fixture
  • Flat field, crisp image, high contrast
  • Full feature set including CMY color mixing and 1:3 zoom
  • Very low weight and compact design
  • Super high-speed movements and effects
  • Consistent photometric performance via latest LED technology

Specifications

  • Physical Length: 452 mm (17.8 in.) Width: 431 mm (17.0 in.) across yoke Height:

    642 mm (25.3 in.) head straight up
    648 mm (25.5 in.) maximum

    Weight: 23.2 kg (51.1 lbs.)
    Dynamic Effects Color mixing: CMY, independently variable 0 - 100% Color wheel: 6 color filters plus open Beam effects: Rotating three-facet prism Rotating gobo wheel: 6 interchangeable gobos plus open, wheel rotation, gobo rotation, indexing and shake Static gobo wheel: 10 gobos plus open, wheel indexing, rotation and shake Iris: 0 - 100%, pulse effects Shutter effect: Electronic, with variable speed regular and random strobe Electronic dimming: Four dimming curve options Zoom: Motorized Pan: 540° Tilt: 268° Pan and tilt speed: Adjustable via onboard control panel and DMX Focus: Motorized, with zoom-focus tracking

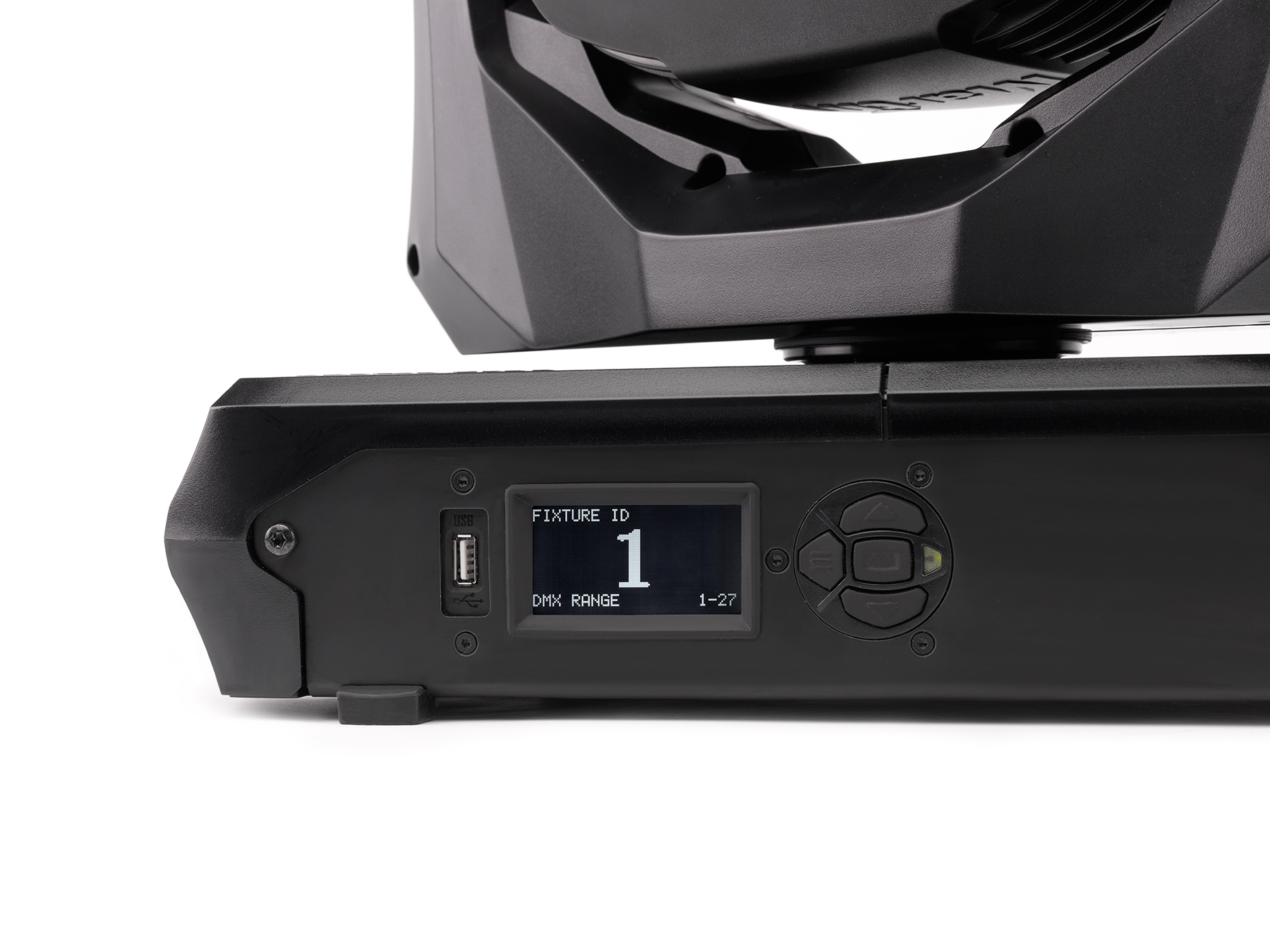

    Control and Programming Control systems: DMX Control resolution: 8-bit, with 16-bit control of dimming, gobo indexing, zoom, focus, pan and tilt DMX channels: 19/27 DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 RDM: Implemented Setting and addressing: Control panel with backlit graphic display Transceiver: RS-485 Fixture software update: Direct using USB memory stick or via DMX link using Martin USB Duo™ DMX Interface Box
    Optics Zoom range: 12° - 36° (1:3) Light source: 475 W LED engine Minimum LED lifetime: 50,000 hours (to >70% luminous output)* LED refresh rate: 3000 Hz Default color temperature: 6000 K Output: 12,700 lumens *Figure obtained under manufacturer´s test conditions
    Photometric Data

    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

    Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP20
    Installation Mounting points: 4 pairs of quarter-turn locks Location: Indoor use only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 0.2 m Minimum distance to illuminated surfaces: 2.0 m
    Connections AC power input: Neutrik PowerCon DMX and RDM data in/out: 5-pin locking XLR
  • Electrical

    AC power: 120-240 V AC nominal, 50/60 Hz
    Power supply unit: Auto-ranging electronic switch mode
    Typical half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A
    Power Factor: 0.99 @ 120 V / 208 V / 230 V / 240 V
    Typical current draw: 4.8 A @ 120 V , 2.8 A @ 208 V , 2.5 A @ 230 V , 2.4 A @ 240 V *
    Power Consumption
    Maximum: 750 W
    Typical: 576 W *
    Idle: 50 W *
    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
    Typical: full output white, no effects moving, regulated fan speed.
    Idle: no output, no effects moving, regulated fan speed.

    Thermal Cooling: Forced air (temperature-regulated, low noise, user-definable levels) Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr. Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): 5° C
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 21 LWR*:

    LWR = Lumen-to-Weight Ratio

    Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471 EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class A Canadian safety: CSA C22.2 No. E598-2-17 (CSA E60598-1) Canadian EMC: ICES-003 Class A Australia/NZ: C-TICK N4241
    Included Items 2 x Omega brackets for rigging clamp attachment: P/N 91602001
    Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com
    Accessories Power Input Cables:

    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
    (H07RN-F are European approved cables, SJOOW are US approved cables)

    Power connectors:

    Power Connector PowerCON Female : P/N 91611794

    Installation hardware:

    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Half-coupler Clamp: P/N 91602005
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

    Flightcase for 2 x MAC Quantum™: P/N 91510210
    Ordering Information MAC Quantum Profile™ in cardboard box: P/N 90240000 MAC Quantum Profile™ in 2-unit flightcase: P/N 90240010
