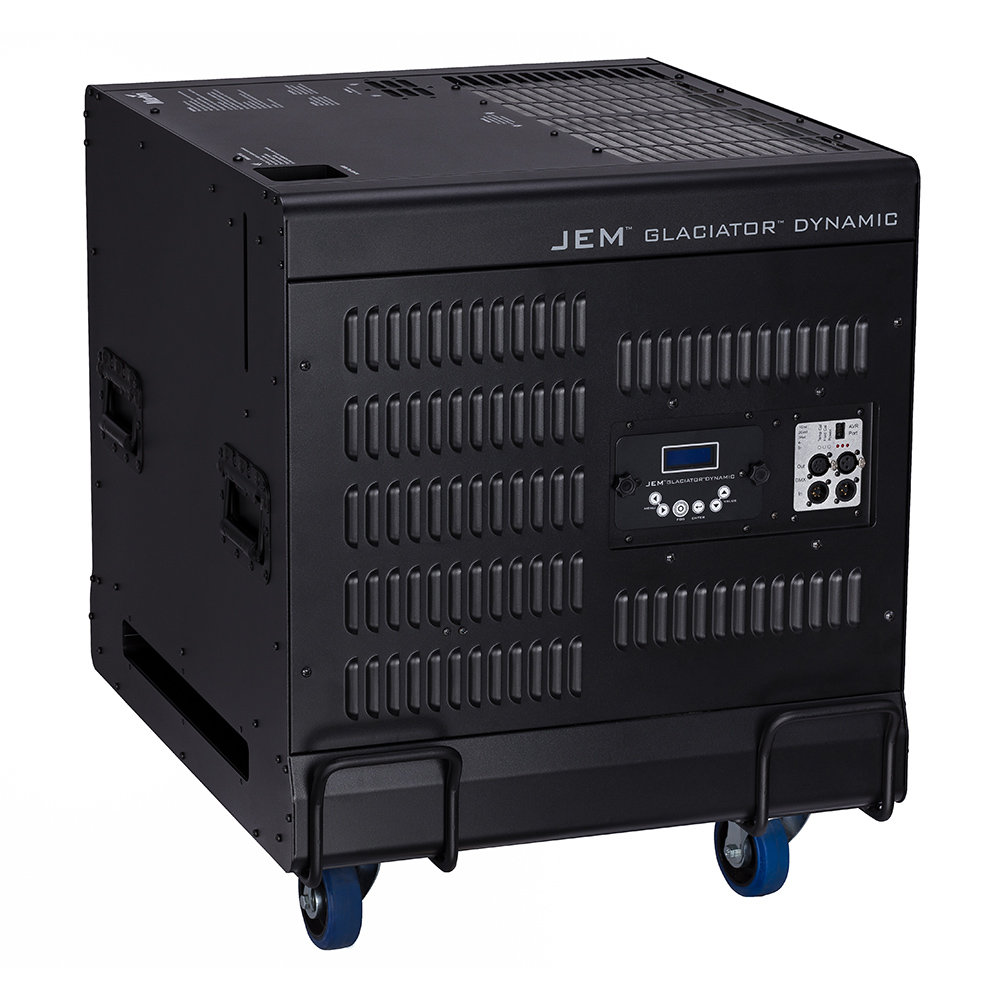

JEM Glaciator Dynamic

All-in-one self-contained low-fog machine

JEM Glaciator Dynamic

Smaller, quieter, and capable of taking low-fog to more locations—the live event industry’s leading low-fog machine returns with its most significant upgrade in over a decade. Martin JEM Glaciator Dynamic is your complete solution for creating dense, billowy clouds of low-lying fog in any venue without the use of industrial gases or ice. Achieve lush fog on stage with longer-lasting effects. Reduce noise with near-silent operation, perfect for theatrical applications. Enjoy more room backstage with an all-new, more compact design. And tour the world with an updated universal power supply. With a full range of premium accessories, three low-fog fluid types to choose from, and streamlined user controls, you can create dramatic atmospheric effects for your production in moments. Just plug in, set the stage and amaze.

  • Completely self-contained low-fog system—no industrial gases or ice
  • Closed-loop refrigeration for colder, dense, longer-lasting low-fog
  • Ultra-quiet operation, including low ambient noise in standby
  • One solution for perfect low fog.

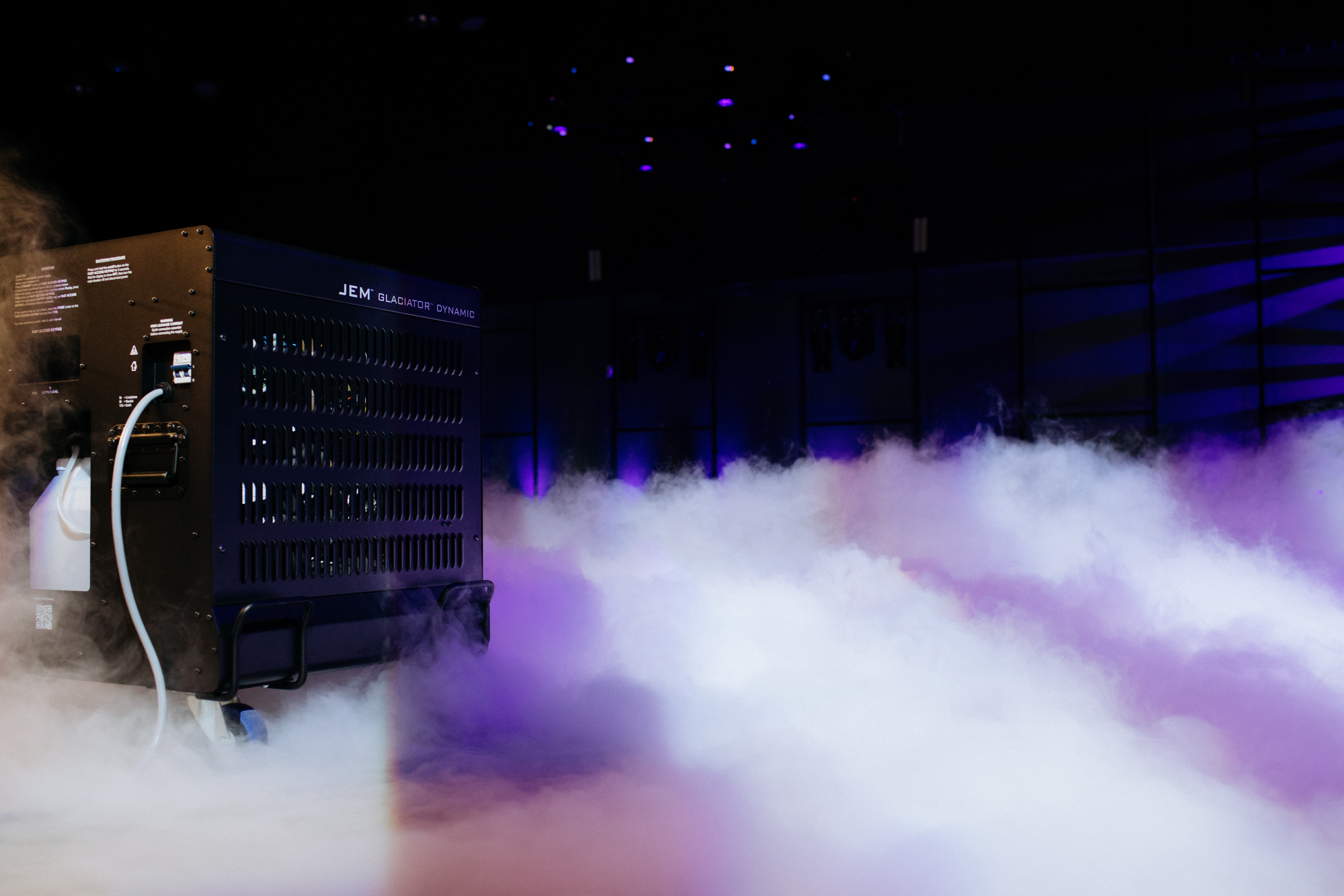

    Nothing meets the combination of effect quality, simplicity, and return on investment that JEM Glaciator Dynamic provides. The self-contained design uses JEM premium low-fog fluids to create the most realistic low-fog effects available without the need for bulky industrial gas tanks or expensive ice deliveries. Just add fluid and achieve a lush blanket of pure white low-fog for every show. No wonder JEM Glaciator is the most specified low-fog effect machine in the world.

  • Fog that's seen. Not Heard.

    The JEM Glaciator Dynamic was built with ultra-quiet operation in mind. From the unique effect carburetor to carefully placed exhaust vents, every aspect of its chassis is designed to dampen acoustic output, and its new inverter-drive technology tightly controls each internal component. When the compressor and fans come to life, they spin up softly to create mesmerizing on-stage effects—without distracting off-stage noise. In fact, the JEM Glaciator Dynamic is quiet enough for the most intimate scenes, operating at just 62.76 dBa while filling the stage with dense fog. After you’ve achieved your desired look, the JEM Glaciator Dynamic discretely transitions to standby for completely noiseless operation.

  • Tour-ready design.

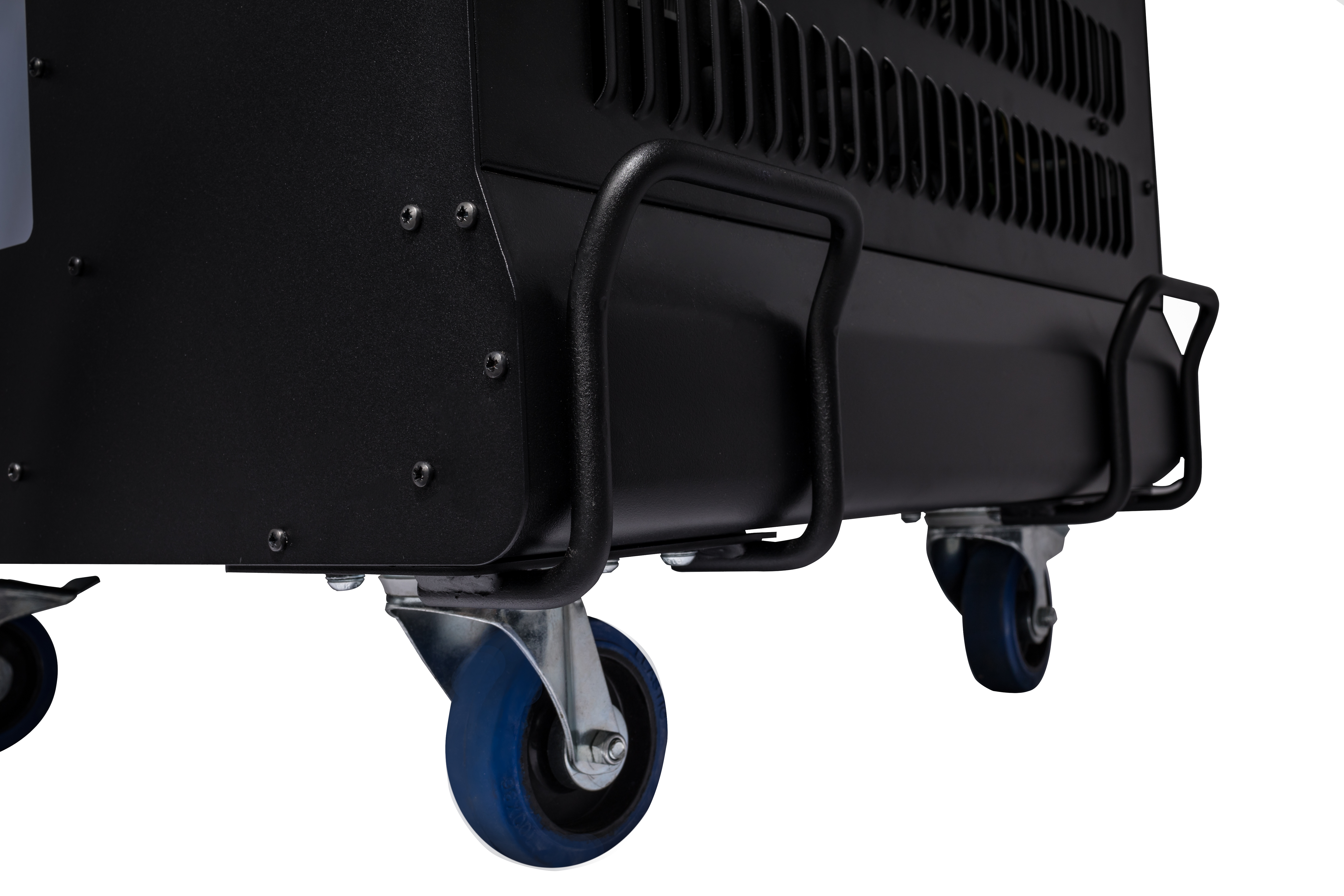

    A rugged steel chassis and durable access panels make the JEM Glaciator Dynamic a perfect fit for the most demanding tours. Specialized easy-grip bumper bars protect the unit in fast-paced production environments and double as convenient lifting points when it’s time to load in and load out. In addition, with a new 208-250 V, 50/60 Hz universal power supply, you can create eye-grabbing low-fog on any stage, anywhere in the world—mitigating the need to cross-rent when tours move overseas.

  • World-class fog at your fingertips.

    Creating rich clouds of low-fog with the JEM Glaciator Dynamic couldn’t be easier. Streamlined user controls via the integrated digital remote control or on the new fast-access keypad puts every aspect of your effects at your fingertips. Simply add low-fog fluid and select your desired output level with the touch of a button. Even better, the JEM Glaciator Dynamic includes 3- and 5-pin DMX connectivity with RDM, so you can easily control your low-fog effects remotely.

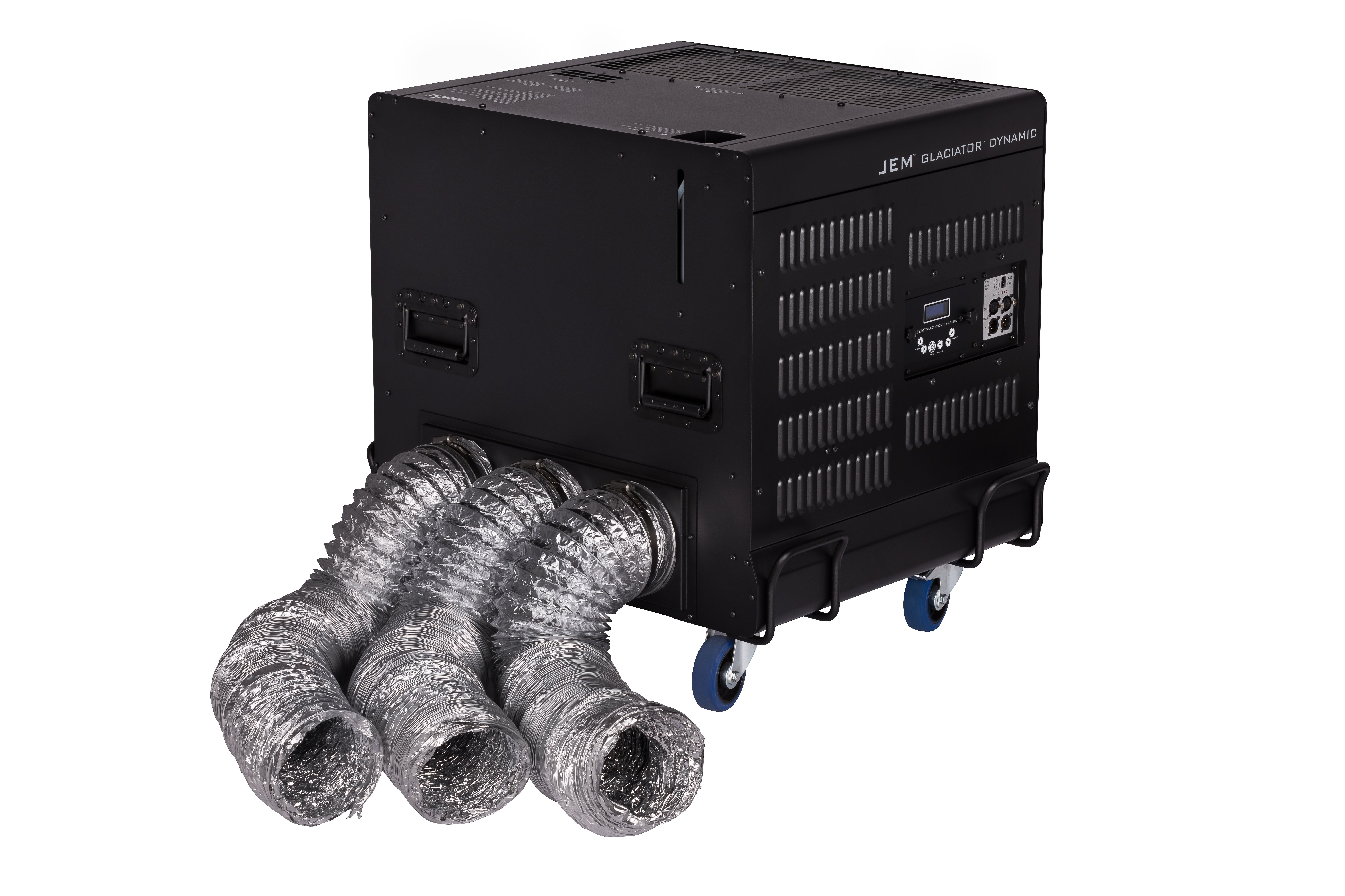

  • JEM Glaciator Dynamic Ducting Kit.

    Transport low-fog to greater distances within your performance area with the JEM Glaciator Dynamic Triple Ducting Kit. The ducting kit includes a black powder-coated steel adapter and three long 150 mm (6 in.) x 5 m (16.4 ft.) flexible ducting hoses that let you evenly distribute low-lying fog directly to your desired output point. Simply place the JEM Glaciator Dynamic in a convenient off-stage location and attach the 3-way adapter to the low-fog outlet. Add one or more of the ducting hoses and transport an even sheet of dense low-fog to your scene. Available separately.

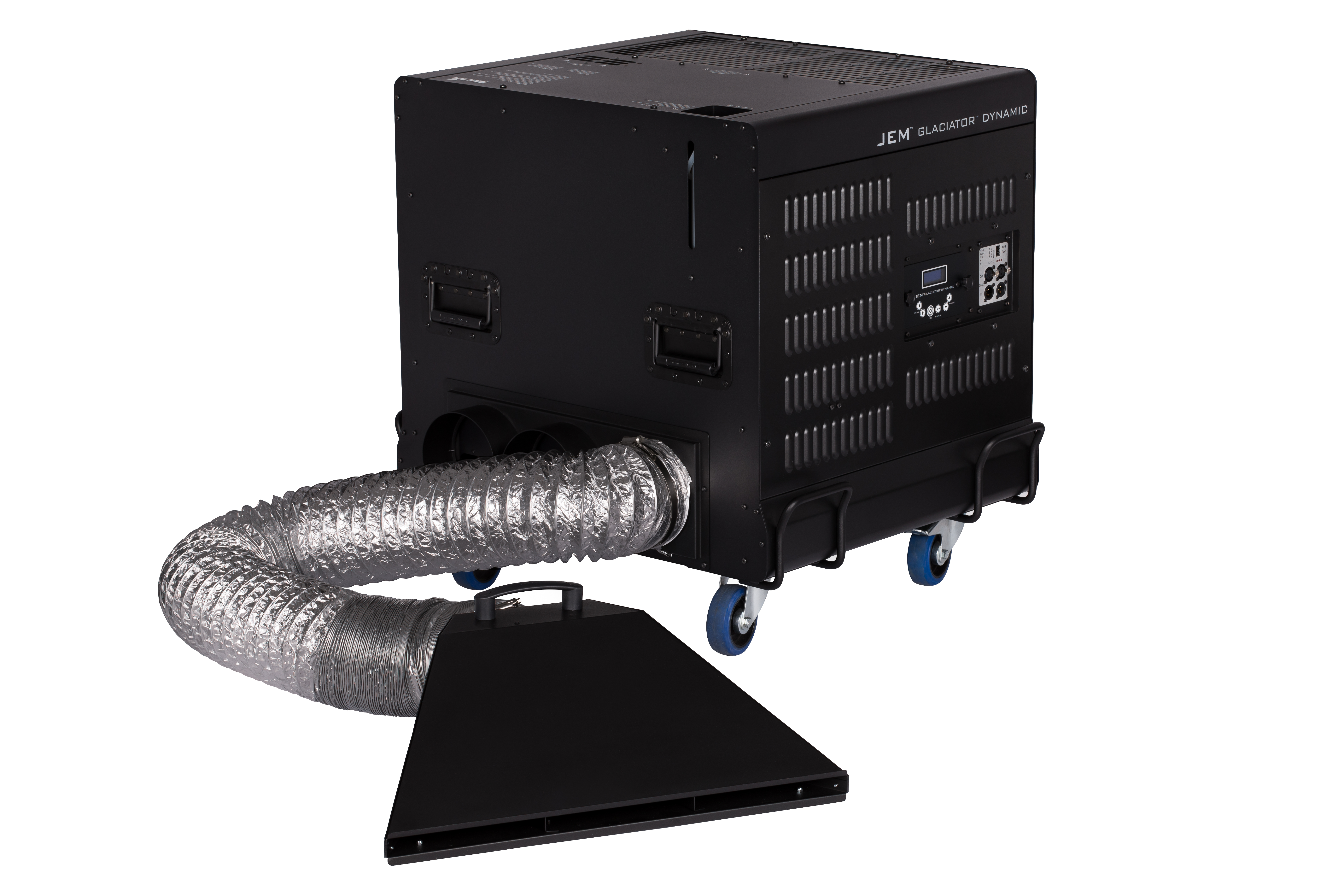

  • JEM Glaciator Dynamic Fog Blade.

    Discretely channel low-fog and create waterfall-like low-fog effects with the JEM Glaciator Fog Blade. The Fog Blade is a wedge-shaped extension for the Glaciator Ducting Kit that fits out of sight beneath stage sets, drapery, or mounts under floors. A convenient carrying handle makes it easy to quickly reposition during scene changes, while rubberized non-slip feet protect delicate surfaces. You can even suspend the Fog Blade overhead to create a smooth waterfall of low-fog that pours down onto the stage. With the Fog Blade, you get more precision control over the look and placement of your low-fog effects. Available separately.

featured content

One solution for perfect low fog.

Nothing meets the combination of effect quality, simplicity, and return on investment that JEM Glaciator Dynamic provides. The self-contained design uses JEM premium low-fog fluids to create the most realistic low-fog effects available without the need for bulky industrial gas tanks or expensive ice deliveries. Just add fluid and achieve a lush blanket of pure white low-fog for every show. No wonder JEM Glaciator is the most specified low-fog effect machine in the world.

featured content

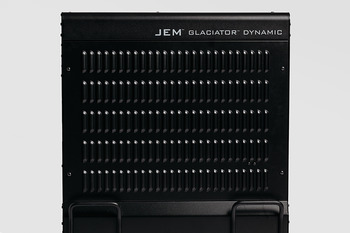

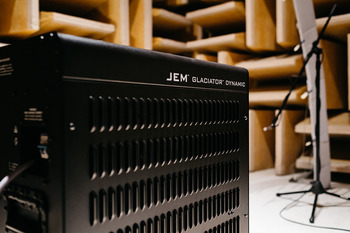

Fog that's seen. Not Heard.

The JEM Glaciator Dynamic was built with ultra-quiet operation in mind. From the unique effect carburetor to carefully placed exhaust vents, every aspect of its chassis is designed to dampen acoustic output, and its new inverter-drive technology tightly controls each internal component. When the compressor and fans come to life, they spin up softly to create mesmerizing on-stage effects—without distracting off-stage noise. In fact, the JEM Glaciator Dynamic is quiet enough for the most intimate scenes, operating at just 62.76 dBa while filling the stage with dense fog. After you’ve achieved your desired look, the JEM Glaciator Dynamic discretely transitions to standby for completely noiseless operation.

featured content

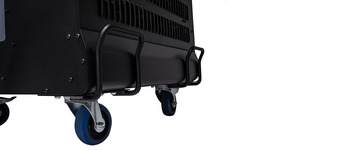

Tour-ready design.

A rugged steel chassis and durable access panels make the JEM Glaciator Dynamic a perfect fit for the most demanding tours. Specialized easy-grip bumper bars protect the unit in fast-paced production environments and double as convenient lifting points when it’s time to load in and load out. In addition, with a new 208-250 V, 50/60 Hz universal power supply, you can create eye-grabbing low-fog on any stage, anywhere in the world—mitigating the need to cross-rent when tours move overseas.

featured content

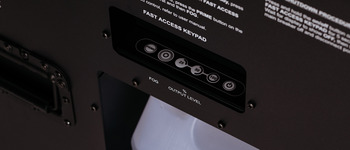

World-class fog at your fingertips.

Creating rich clouds of low-fog with the JEM Glaciator Dynamic couldn’t be easier. Streamlined user controls via the integrated digital remote control or on the new fast-access keypad puts every aspect of your effects at your fingertips. Simply add low-fog fluid and select your desired output level with the touch of a button. Even better, the JEM Glaciator Dynamic includes 3- and 5-pin DMX connectivity with RDM, so you can easily control your low-fog effects remotely.

featured content

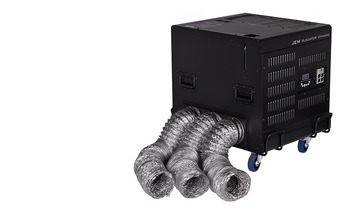

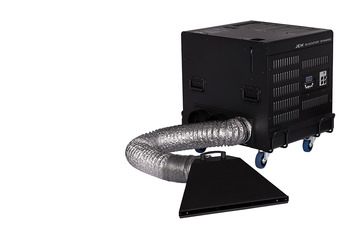

JEM Glaciator Dynamic Ducting Kit.

Transport low-fog to greater distances within your performance area with the JEM Glaciator Dynamic Triple Ducting Kit. The ducting kit includes a black powder-coated steel adapter and three long 150 mm (6 in.) x 5 m (16.4 ft.) flexible ducting hoses that let you evenly distribute low-lying fog directly to your desired output point. Simply place the JEM Glaciator Dynamic in a convenient off-stage location and attach the 3-way adapter to the low-fog outlet. Add one or more of the ducting hoses and transport an even sheet of dense low-fog to your scene. Available separately.

featured content

JEM Glaciator Dynamic Fog Blade.

Discretely channel low-fog and create waterfall-like low-fog effects with the JEM Glaciator Fog Blade. The Fog Blade is a wedge-shaped extension for the Glaciator Ducting Kit that fits out of sight beneath stage sets, drapery, or mounts under floors. A convenient carrying handle makes it easy to quickly reposition during scene changes, while rubberized non-slip feet protect delicate surfaces. You can even suspend the Fog Blade overhead to create a smooth waterfall of low-fog that pours down onto the stage. With the Fog Blade, you get more precision control over the look and placement of your low-fog effects. Available separately.

Videos









Features

  • All-in-one, self-contained solution without the need for external fans, industrial gas tanks, or ice
  • All-new Electronic Inverter Drive for improved effects and lower ambient noise
  • Fill your stage with low-fog thanks to continuous 80 m³ (2825 ft³) per-minute output
  • Even smaller, compact service-friendly design: 785 x 648 x 769 mm (30.9 x 25.5 x 30.2 in.)
  • World touring capabilities via a universal power supply that operates at 208-250 V, 50/60 Hz
  • Onboard industry standard DMX connectivity (both 3- and 5- pin) for control and integration

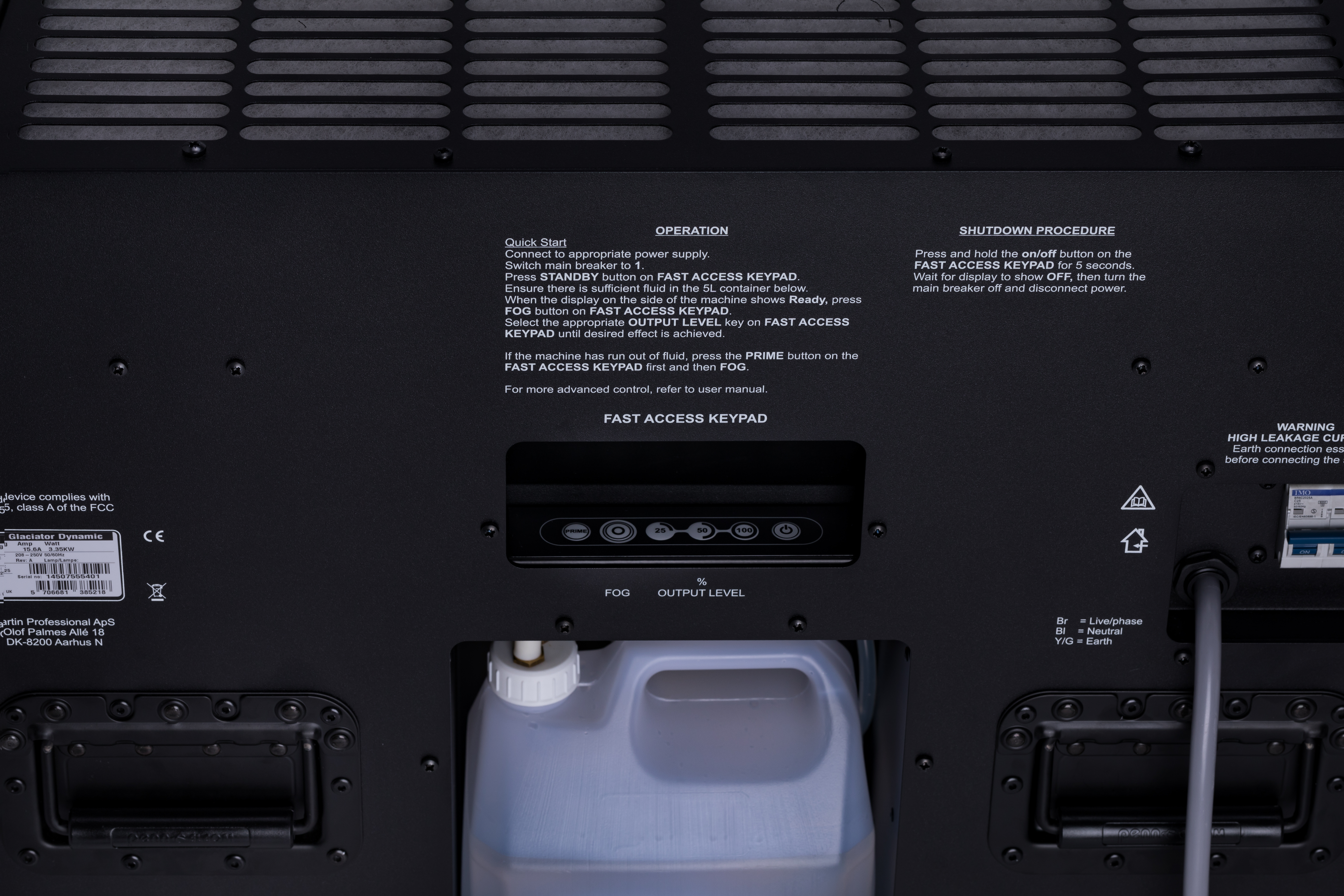

  • Intuitive user interface with Fast Access Keypad for fast, easy manipulation of low-fog output
  • 180° Low-fog outlet engineered for a smooth, consistent low-fog field
  • Achieve diverse effects with three premium fluid options
  • Simple, one-touch fluid priming
  • 5 l internal fluid reservoir provides an hour of continual consistent low-fog output
  • (Optional Accessory) JEM Glaciator Dynamic Ducting Kit for 3-way low-fog diversion
  • (Optional Accessory) JEM Glaciator Dynamic Fog Blade for creative output points and waterfall-like low-fog effects

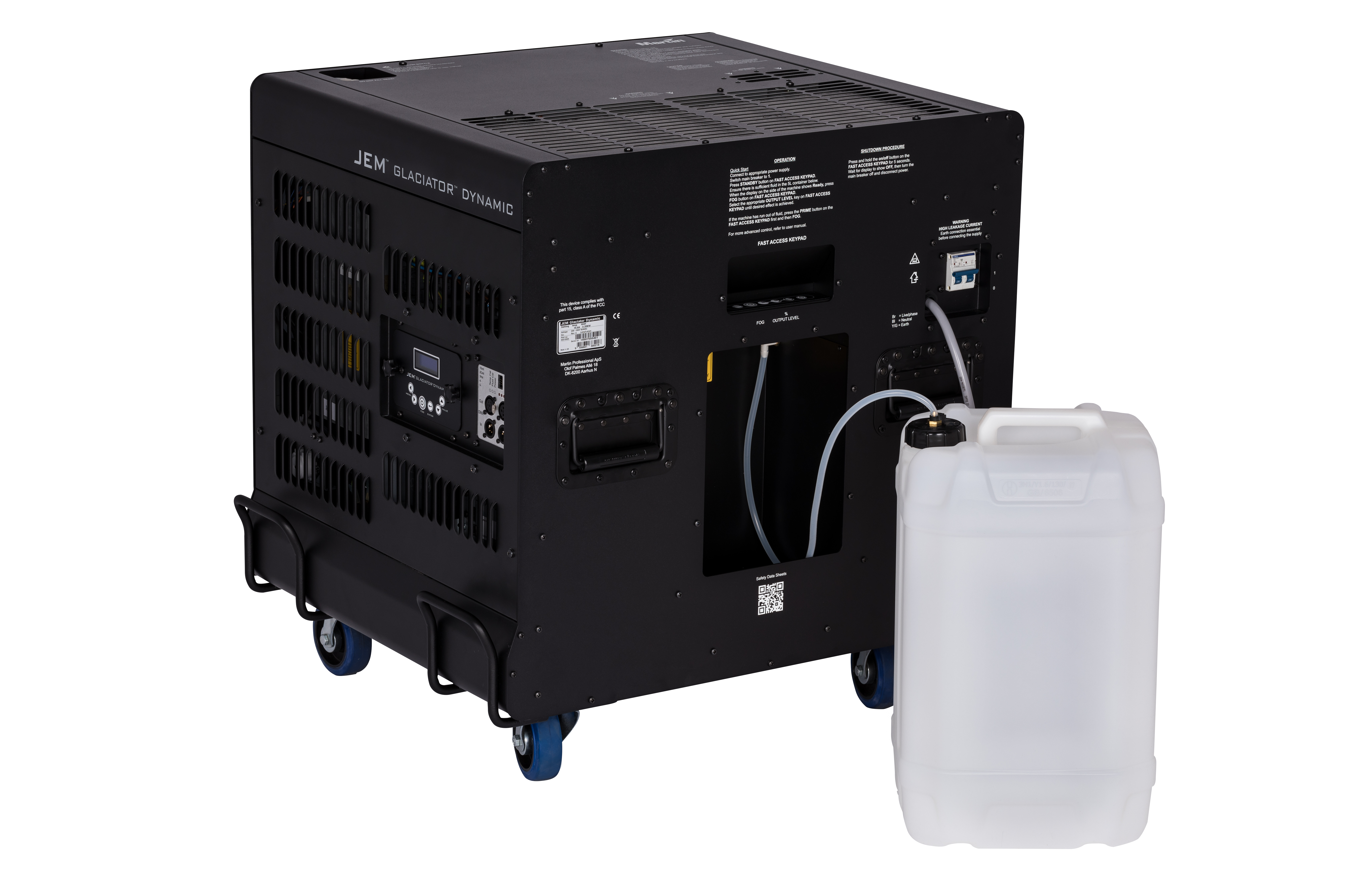

  • (Optional Accessory) JEM External Fluid Reservoir—25 l low-fog fluid reservoir for hours of uninterrupted use

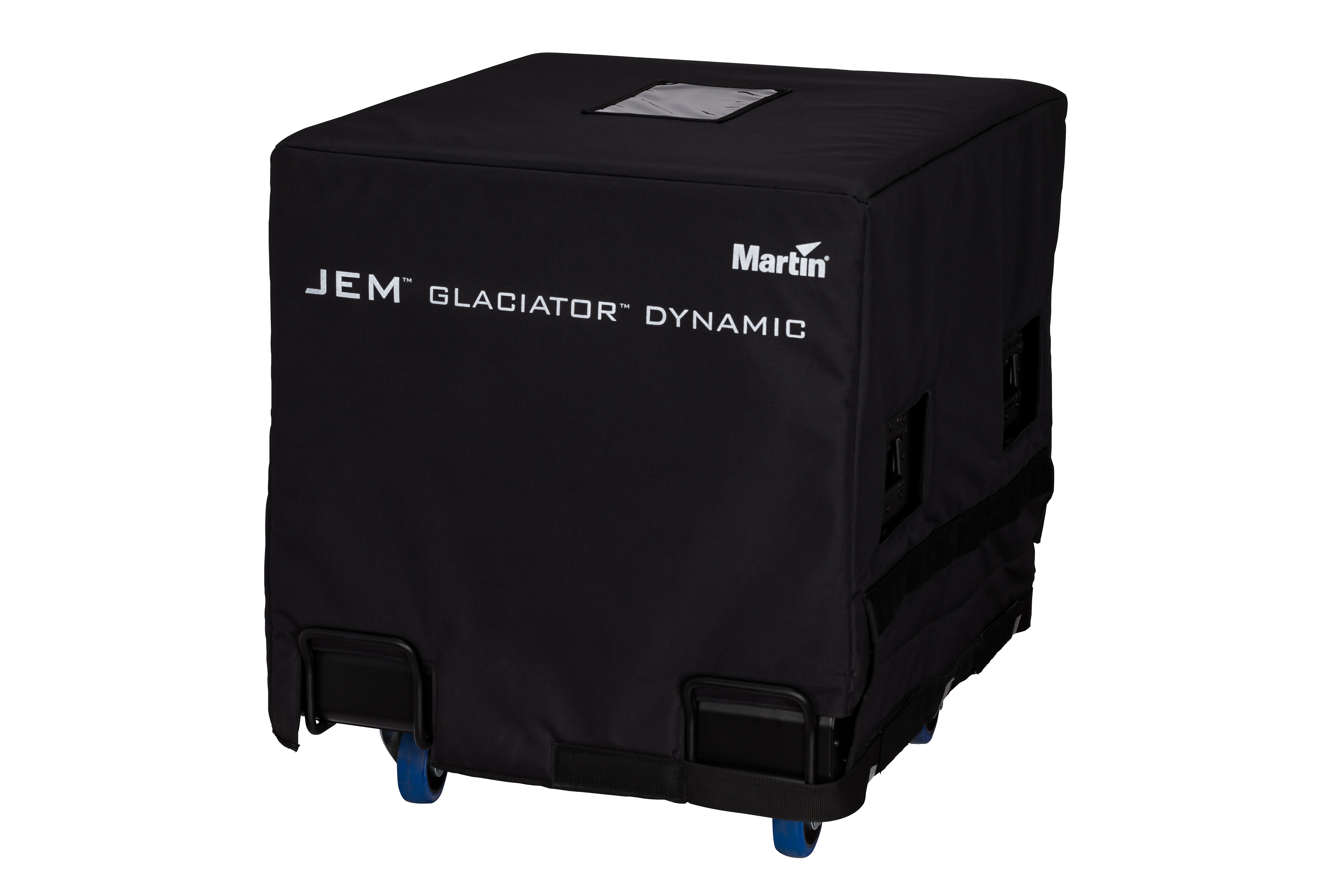

  • (Optional Accessory) Softcover—custom made of reinforced ballistic nylon protects the machine in transit

Specifications

  • Physical Length: 785 mm (30.91 in.) Width: 648 mm (25.52 in.) Height: 769 mm (30.29 in.) Height without castors: 636 mm (25.06 in.) Weight, dry: 124 kg (274 lb.) Weight, filled: 129 kg (285 lb.)
    Performance Coverage volume: 80 m3 (2825 ft3) minute Fluid consumption, continuous maximum output: 70 ml minute Ready time (minimum): 5-minutes Ready time (optimal): 7-minutes Continuous effect output
    Control and Programming DMX channels: 1/2 DMX compliance: ANSI E1.11 - USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 RDM Control options: Integrated digital remote control, fast access keypad, DMX/RDM, master/client Control parameters: Continuous or timer-controlled output Low-Fog/Fan: Proportionally controlled output, 0-100% Setting and addressing: Control panel with backlit LCD display and 6-button user interface or via RDM
    Construction Housing: Steel Color: Black Portability: Removable castors Protection rating: IP20 Heat exchanger: 2500 W, thermally protected Fluid pump, low-fog fluid: Oscillating piston, high-pressure Fluid pump, waste condensate: Peristaltic pump, low-pressure Fluid management, low-fog fluid: Fluid out sensing, sealed for transportation Fluid management, waste condensate: Visual sight gauge, LED illuminated reservoir Fluid reservoir, low-fog fluid: 5 l drop-in reservoir w/ quick connect fitting or external source Fluid reservoir, waste condensate: 0.5 l drop in reservoir w/ quick connect fitting or external source Refrigeration: Closed loop system, variable speed condenser fans, electronic expansion valve Refrigeration control: PWM electronic control Remote Control: Integrated digital remote with 5 m (16.4 ft.) cable, 3-pin XLR Remote Control Cable Length (max.): 25 m (82 ft.) Optional Ducting Kit: Black, steel, triple ducting adaptor with 3x 5 m (16.4 ft.) 150 mm (6 in.) OD flexible ducting hoses and includes 3x stainless steel duct clamps, worm drive, hex screw Optional Fog Blade: Black, steel, 150 mm (6 in.) outlet, includes 1x stainless steel duct clamp, worm drive, hex screw Optional External Fluid Kit: 25 l sealed fluid reservoir, 1.5 m (4.9 ft.) 8 mm OD, 6 mm ID, silicone tubing, pipetta fitting Optional Softcover: Black, heavy duty PVC external, brushed nylon padding interior, hook and loop fastener system, 5 in. x 8 in. transparent PAL transit pocket
    Installation Location: Dry location only Orientation: Horizontal Only Clearance around machine: 60 cm (24 in.) Ducting: Optional, max length 10 m (32.8 ft.)
    Connections AC Power: Hardwired flexible mains cable, 3 x 4.0 mm2 (6 AWG), 3.3 m (10.8 ft.) DMX/RDM in/out: 3- and 5-pin locking XLR Remote control: 3-pin locking XLR Firmware: AVR socket Fluid inlet, low-fog fluid: Brass barbed hose tail, 6 mm Fluid outlet, waste: Brass barbed hose tail, 6 mm
  • Electrical

    AC power: 208-250 V AC nominal, 50/60 Hz
    Power supply unit: Auto-ranging electronic switch mode
    Typical half-cycle RMS inrush current at 230 V, 50 Hz: 20.0 A
    Power Factor: 0.96 @ 208 V / 220 V /230 V / 240 V
    Typical current draw: 17.8 A @ 208 V , 16.9 A @ 220 V , 15.6 A @ 230 V , 15.2 A @ 240 V *
    Power Consumption
    Maximum: 3500 W
    Typical: 3350 W *
    Idle: 10 W *
    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
    Idle: no output, cooler off.

    Thermal Cooling: Forced air, low noise Total heat dissipation, idle (calculated, +/- 10%): 2241 BTU/hr. Total heat dissipation, full load (calculated, +/- 10%): 11430 BTU/hr. Maximum ambient temperature (Ta max.): 35° C (95° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Exterior surface temperature, steady state: 30° C (86° F)
    Acoustic Noise level average, maximum low-fog output: 62.76 dBa Noise level average, standby: 40.47 dBa
    Approvals EU safety: EN 60 335-1 EU EMC: EN 61000-6-3, EN 62233 EU immunity: EN 61000-6-1+A1 Australia/NZ: RCM (pending) United Kingdom: UKCA
    Included Items Fluid reservoir, 5 l: P/N 34300506 Fluid reservoir 0.5 l: P/N 34300515 JEM Glaciator Digital Remote Control: P/N 55765055
    Accessories JEM Glaciator Dynamic, Ducting Kit: P/N 92625020 JEM Glaciator Dynamic, Fog Blade: P/N 92625025 JEM Glaciator Dynamic, Softcover: P/N 92625030 JEM External Fluid Reservoir Kit, 25 l: P/N 92620035 Approved fluids*:

    JEM™ Low-Fog Fluid, Quick Dissipating
    JEM™ Low-Fog Fluid
    JEM™ Low-Fog Fluid, High Density
    Martin® Pro-Clean and Storage Fluid
    Various sizes available - contact your dealer or see 'Fluids' product pages for details

    Service Tools:

    Epsilon 5 AVR Programmer: P/N 50502004
    Temperature Calibration Box: P/N 92620005

    Ordering Information JEM™ Glaciator™ Dynamic: P/N 92210525

Downloads

  Version Language Size Uploaded
file type icon Glaciator Dynamic Sales Sheet
en updated: Jan 2024
  en  263 KB Jan 2024
file type icon Ducting Kit Sales Sheet
en updated: Jan 2024
  en  111 KB Jan 2024
file type icon External Reservoir Sales Sheet
en updated: Jan 2024
  en  117 KB Jan 2024
file type icon Fog Blade Sales Sheet
en updated: Jan 2024
  en  124 KB Jan 2024
file type icon Softcover Sales Sheet
en updated: Jan 2024
  en  110 KB Jan 2024
Specifications
file type icon Acoustic Test Report - JEM Glaciator Dynamic
en version A, updated: Sep 2018
en  1.12 MB Sep 2018
Manuals
file type icon User Manual - JEM Glaciator Dynamic
en version G, updated: Dec 2022
en  1.78 MB Dec 2022
file type icon Bedienungsanleitung - JEM Glaciator Dynamic
de version E, updated: Dec 2022
de  1.19 MB Dec 2022
file type icon manuel d’utilisation - JEM Glaciator Dynamic
fr version E, updated: Dec 2022
fr  2.07 MB Dec 2022
file type icon User Manual - JEM Glaciator Dynamic, Softcover
en version A, updated: May 2018
en  281 KB May 2018
file type icon User Manual - JEM External Fluid Reservoir Kit
en version A, updated: May 2018
en  136 KB May 2018
file type icon User Manual - JEM Glaciator Dynamic, Ducting Kit
en version B, updated: May 2019
en  6.13 MB May 2019
file type icon User Manual - JEM Glaciator Dynamic, Fog Blade
en version A, updated: May 2018
en  300 KB May 2018
Illustrations
file type icon JEM Glaciator Dynamic - Fog Blade Drawing (PDF Format)
en updated: Jun 2018
  en  24.8 KB Jun 2018
file type icon JEM Glaciator Dynamic - Fog Blade Drawing (DXF Format)
en updated: Jun 2018
  en  290 KB Jun 2018
file type icon JEM Glaciator Dynamic - Ducting Kit Drawing (PDF Format)
en updated: Jun 2018
  en  15.6 KB Jun 2018
file type icon JEM Glaciator Dynamic - Ducting Kit Drawing (DXF Format)
en updated: Jun 2018
  en  148 KB Jun 2018
file type icon JEM Glaciator Dynamic - General Dimensions (DXF Format)
en updated: May 2018
  en  3.74 MB May 2018
file type icon JEM Glaciator Dynamic - General Dimensions (PDF Format)
en updated: May 2018
  en  205 KB May 2018
Symbols
file type icon Vectorworks Symbols
en version 3.8, updated: Dec 2023
3.8  en  371 MB Dec 2023
file type icon AutoCAD 2D Symbols
en version 2.1, updated: Dec 2023
2.1  en  3.7 MB Dec 2023
file type icon AutoCAD 3D Symbols
en version 2.1, updated: Dec 2023
2.1  en  14.1 MB Dec 2023
Compliances
file type icon JEM Glaciator Dynamic - Declaration of Conformity
en version A, updated: Oct 2020
en  196 KB Oct 2020
Software
platform icon JEM Glaciator Dynamic - PC Configuration Tools
version 1.2.0, updated: Oct 2020
1.2.0     44.1 KB Oct 2020
Parts
file type icon JEM Glaciator Dynamic Parts List
version C, updated: May 2019
  311 KB May 2019
Service Notes
file type icon 3D Partsfinder - Opening using Solid Works Composer Player
version 4, updated: Oct 2020
  743 KB Oct 2020
Martin Atmospheric Effect Fluid Matrix
en version C, updated: Jun 2018
C   en    Jun 2018
Firmware
platform icon JEM Glaciator Dynamic - Firmware
version 1.3.0, updated: Jan 2024
1.3.0     Jan 2024

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
